Reading

Read Measuring Value Block (Function 08)

Initiating "Read Measuring Value Block"

Indicated on display:

Rapid data transfer HELP
Select function XX

- Press buttons -0- and -8-. This selects "Read Measuring Value Block", function 08.

Indicated on display:

Rapid data transfer Q
08 - Read Measuring Value Block

- Press -Q- button to confirm input.

Indicated on display:

Read Measuring Value Block
Enter display group number XXX

- Enter display group number and press Q button to confirm input.

The selected measuring value block is now displayed in standard form.

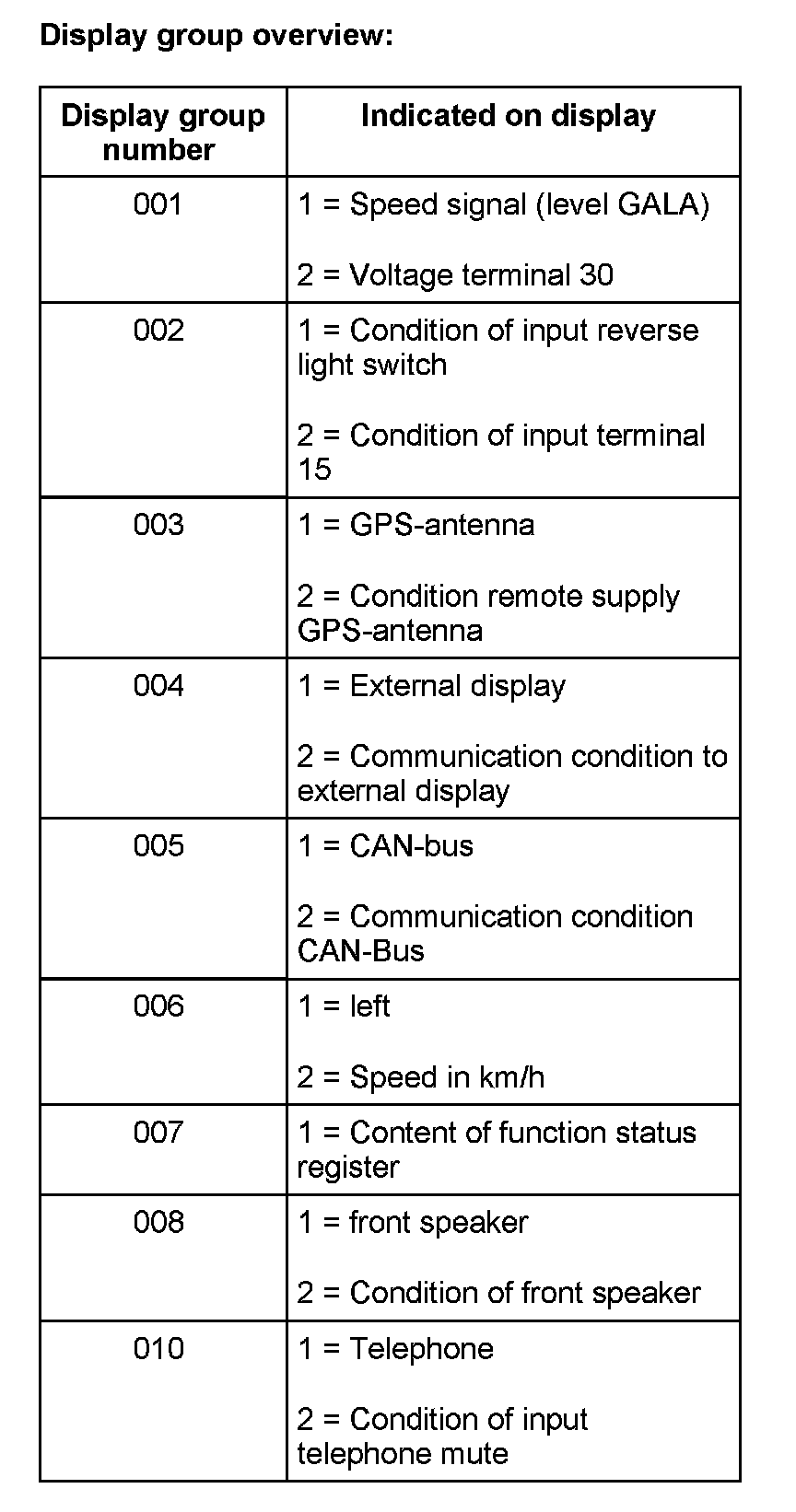

Display Group Overview:

Display Group Number 001 - 010:
