Coupe

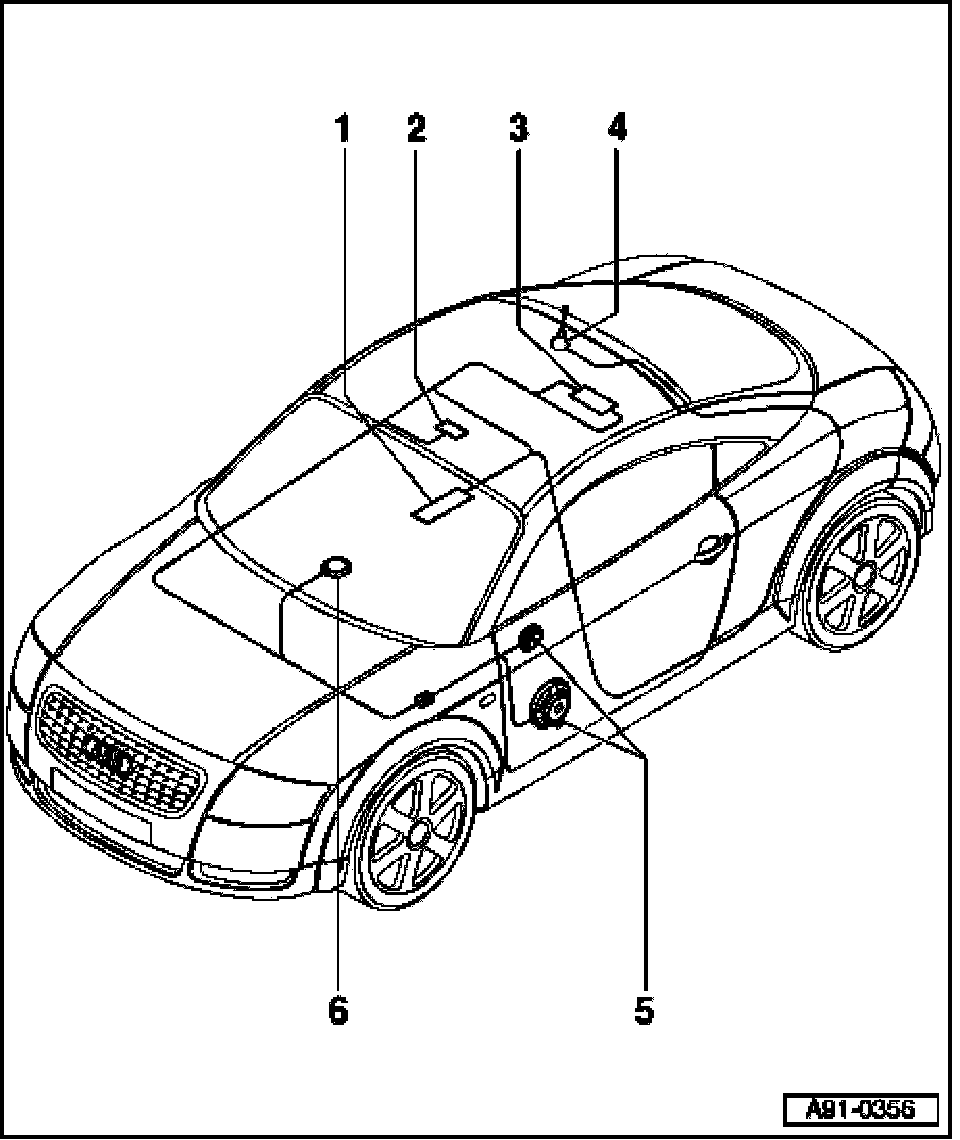

Cellular Phone Preparation (coupe), General Overview







1 - Cellular phone specific safety mount
- With connector
- At right beside center console
2 - Hands-free microphone
- Behind the interior light operating switch in headliner
3 - Operating Electronics and Telephone Control Module (interface)
- Below rear seat bench
4 - Telephone-roof antenna
- On the roof
5 - Mid-range/treble speaker or bass speaker
- In front door trim
6 - Hands-free speaker (up to m.y. 2001)
- Only for vehicles with BOSE sound system
- In instrument panel (below left defroster vent at front windshield)
