Roadster




Hands-free Microphone (Roadster), Removing And Installing

Removing
- Remove instrument cluster.

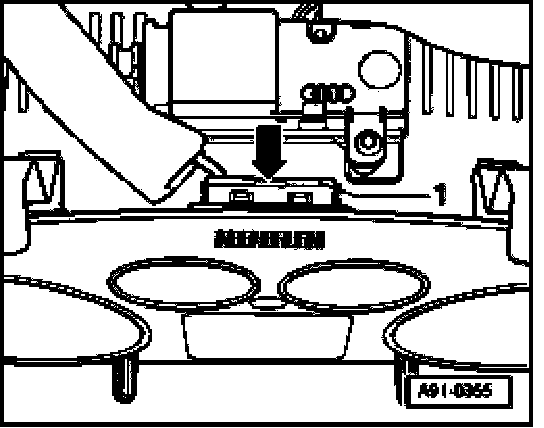

- Use screwdriver (arrow) to carefully pry hands-free microphone -1- out of bracket.
- Disconnect electrical harness connector and remove hands-free microphone.

Installing
- Install in reverse order of removal.
