Coupe

Hands-free Microphone (coupe), Removing And Installing

Removing

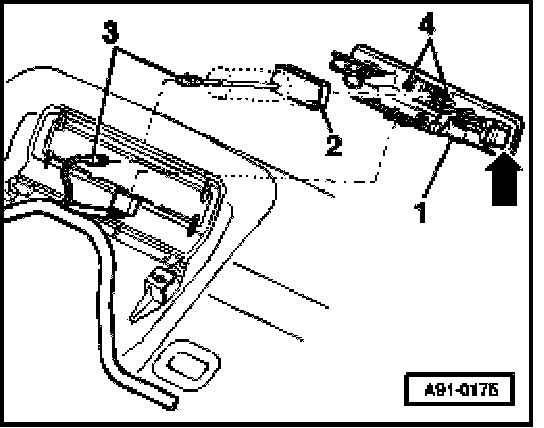

- Carefully lever right-hand side of cover -1 - (arrow) out of molded headliner.
- Press the two retaining tabs -4- to the side, and detach microphone -2- from cover.
- Unplug connector -3- to remove microphone from headliner cut-out.

Installing
- Install in reverse order of removal.
