Home >> Audi >> 2004 >> A4 Cabriolet (8H7) L4-1.8L Turbo (AMB) >> Repair and Diagnosis >> Transmission and Drivetrain >> Manual Transmission/Transaxle >> Testing and Inspection >> 5 SPD. M/T 01A AWD

5 SPD. M/T 01A AWD


Calculations

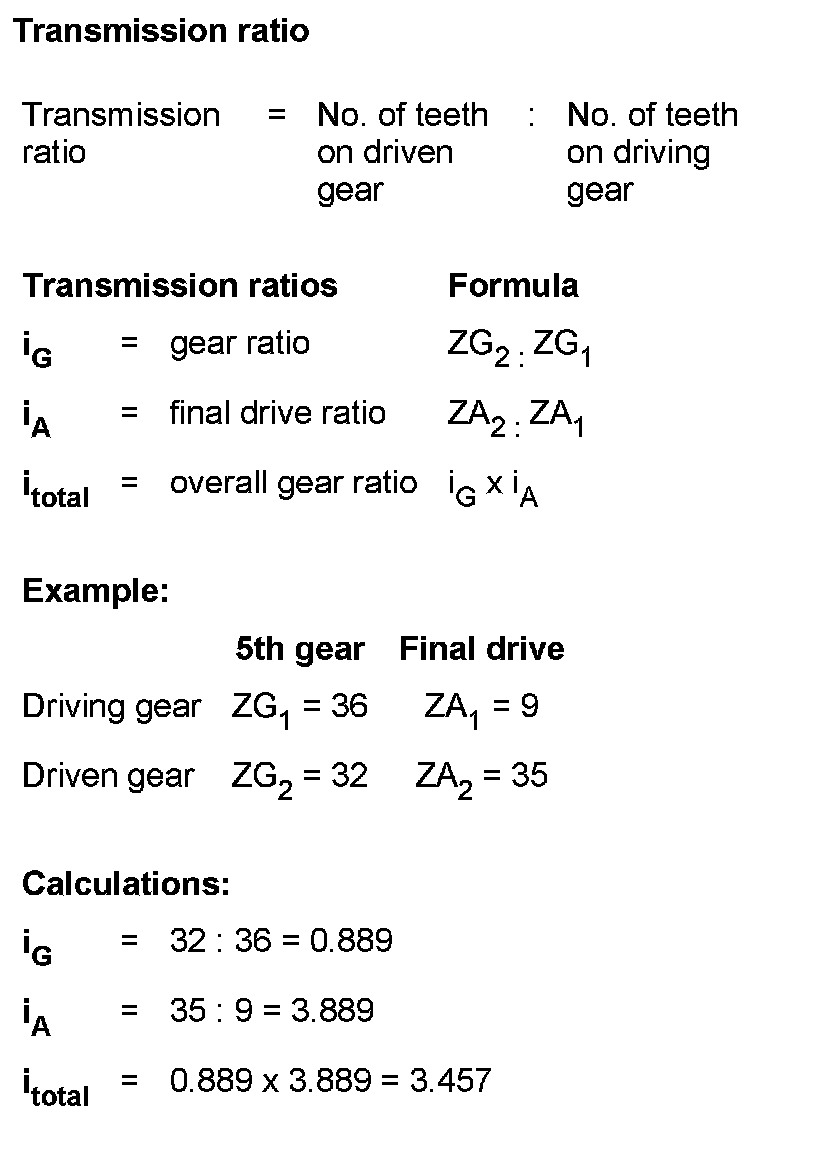

Calculation of transmission ratios "i"
