Shift Mechanism, Installation Position

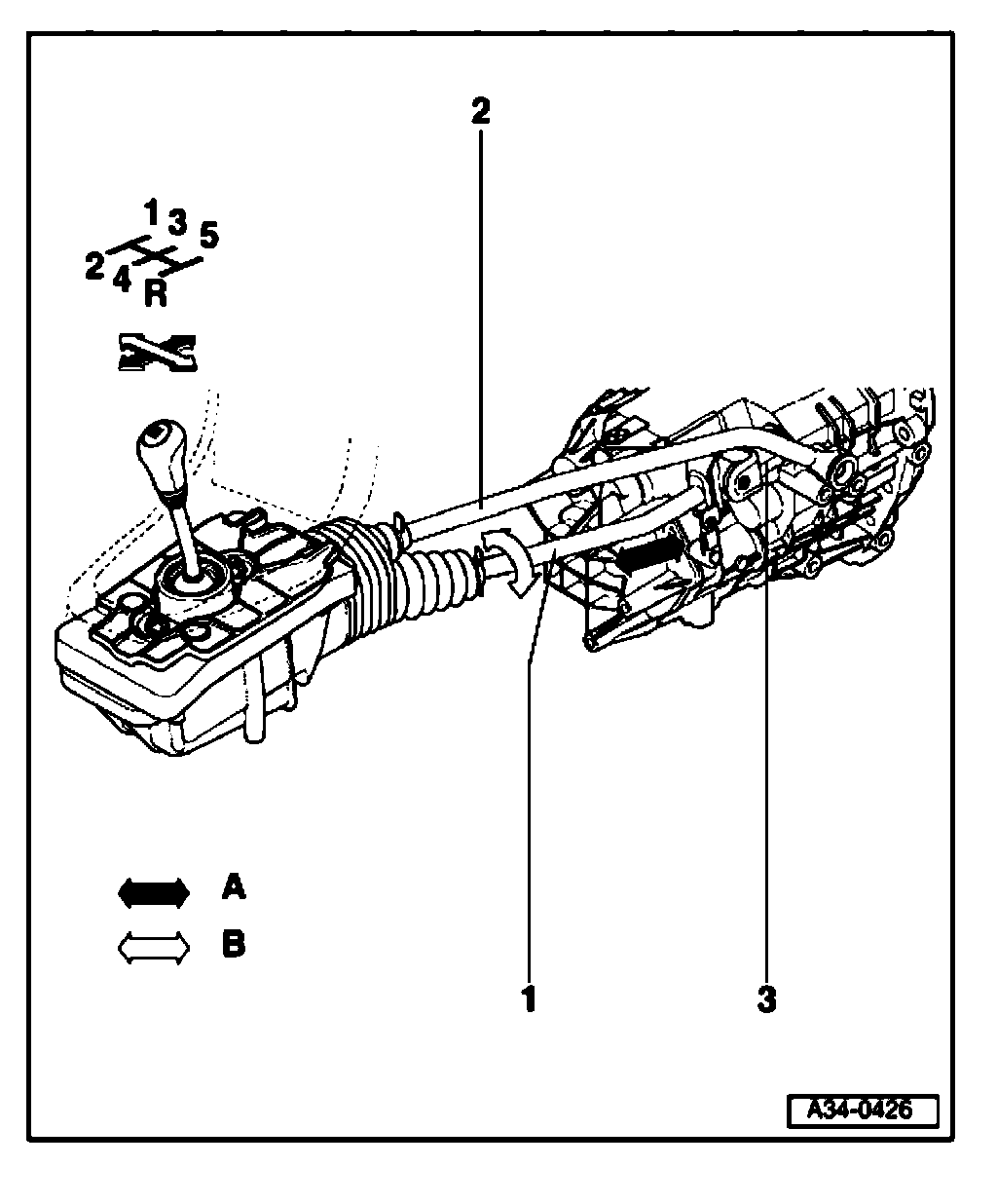

Shift mechanism, installation position





1 - Selector rod
2 - Front push rod
3 - Selector lever on transmission
Arrow -A- Gear selection movement
Arrow -B- Gate selection movement





I - Removing and installing gear shift knob and cover
II - Servicing gear shift and rear push rod
III - Servicing selector rod and front push rod

Removing and installing shift mechanism
Adjusting shift mechanism
See Caution for disconnecting Telematics battery

Note:
^ Disconnect Ground strap from battery in engine compartment before working on shift mechanism.
^ Heed radio code on vehicles with encoded radio.
