Gear Shift and Rear Push Rod, Servicing

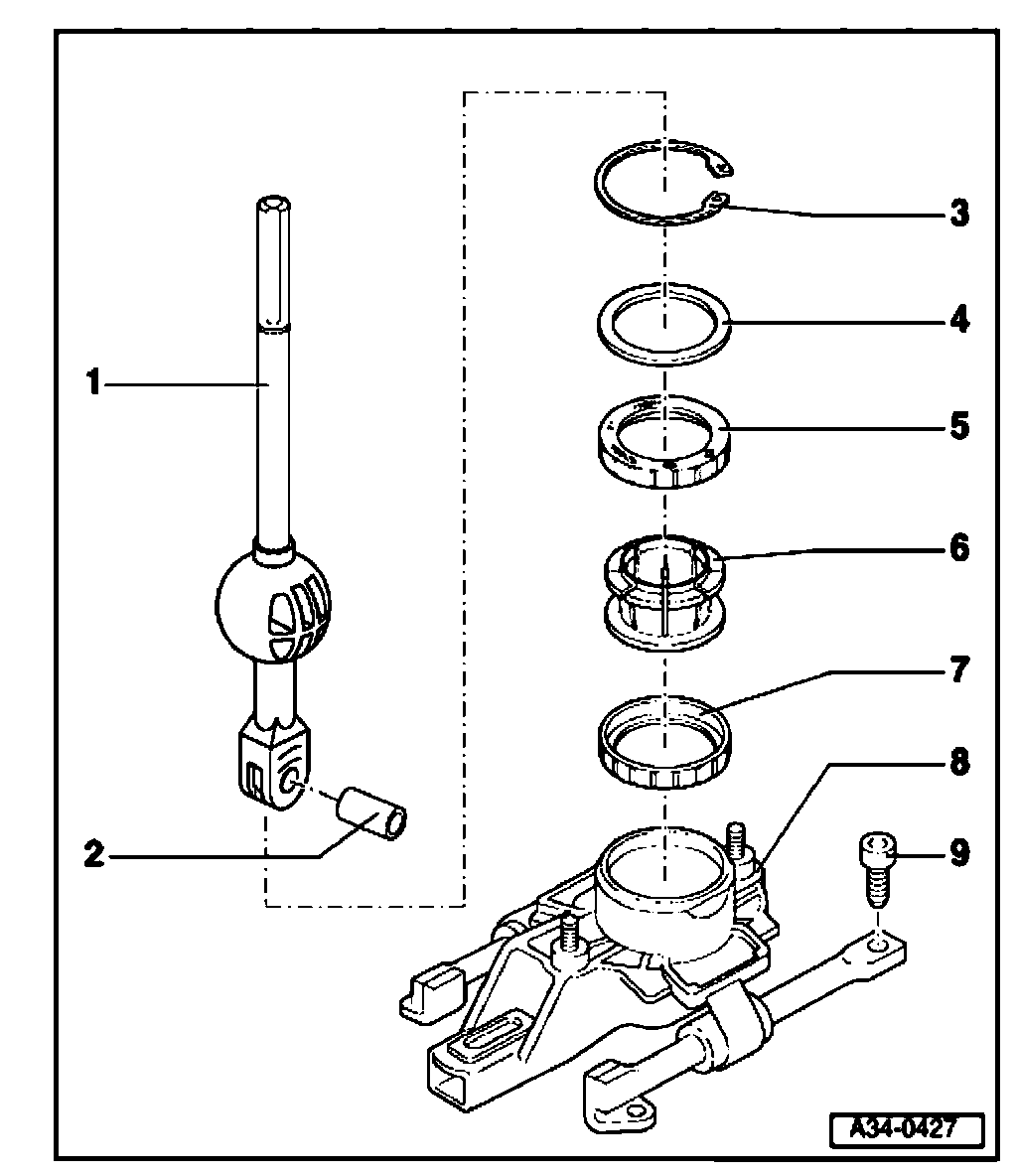

Gear shift and rear push rod, servicing





Note: Lubricate bearing and contact surfaces with polycarbamide grease, part no. G 052 142 A2.

1 - Gear shift
^ Lubricate area around hole at bottom with polycarbamide grease G 052 142 A2
^ Lubricate ball with polycarbamide grease G 052 142 A2
2 - Spacer tube
^ Lubricate with polycarbamide grease G 052 142 A2
3 - Circlip
^ Always replace
4 - Washer
^ Collar faces ball guide (item 6)
5 - Rubber ring
6 - Ball guide
^ Removing and installing
7 - Rubber ring
8 - Rear push rod
^ With ball housing
^ Removing and installing
9 - Bolt, 6 Nm
^ Qty. 4
^ For fixing rear push rod to gear shift housing
