Shift Mechanism, Servicing

Shift mechanism, servicing

Note: Before working on the selector mechanism, disconnect the Ground strap from the battery in the engine compartment.

CAUTION: Before beginning repairs on the electrical system:
^ Obtain the anti-theft radio security code.
^ Switch the ignition off.
^ Disconnect the battery Ground (GND) strap.
^ On vehicles equipped with Audi Telematics by OnStar(R), switch-off the emergency (backup) battery for the Telematic/Telephone Control Module prior to disconnecting vehicle battery go to Repair Manual Communication.
^ After reconnecting vehicle battery, re-code and check operation of anti-theft radio. Also check operation of clock and power windows according to Repair Manual and/or Owner's Manual.
^ After reconnecting vehicle battery on vehicles equipped with Audi Telematics by OnStar(R), switch-on the emergency (backup) battery for the Telematic/Telephone Control Module go to Repair Manual Communication.

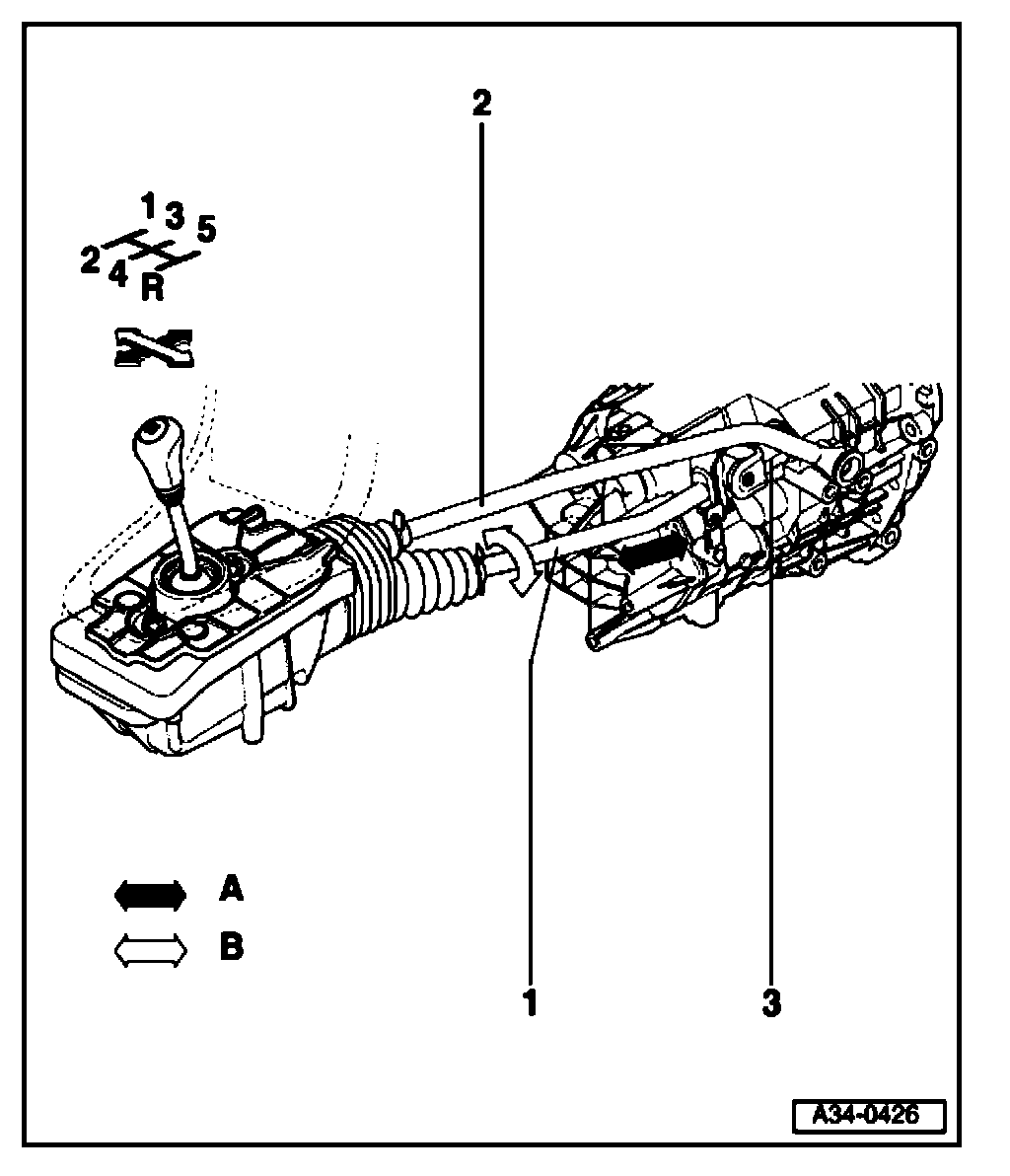

Installation position of gear selector mechanism





1 - Selector rod
2 - Front push rod
3 - Gear selector lever

Arrow -A- Gear selection movement
Arrow -B- Gate selection movement

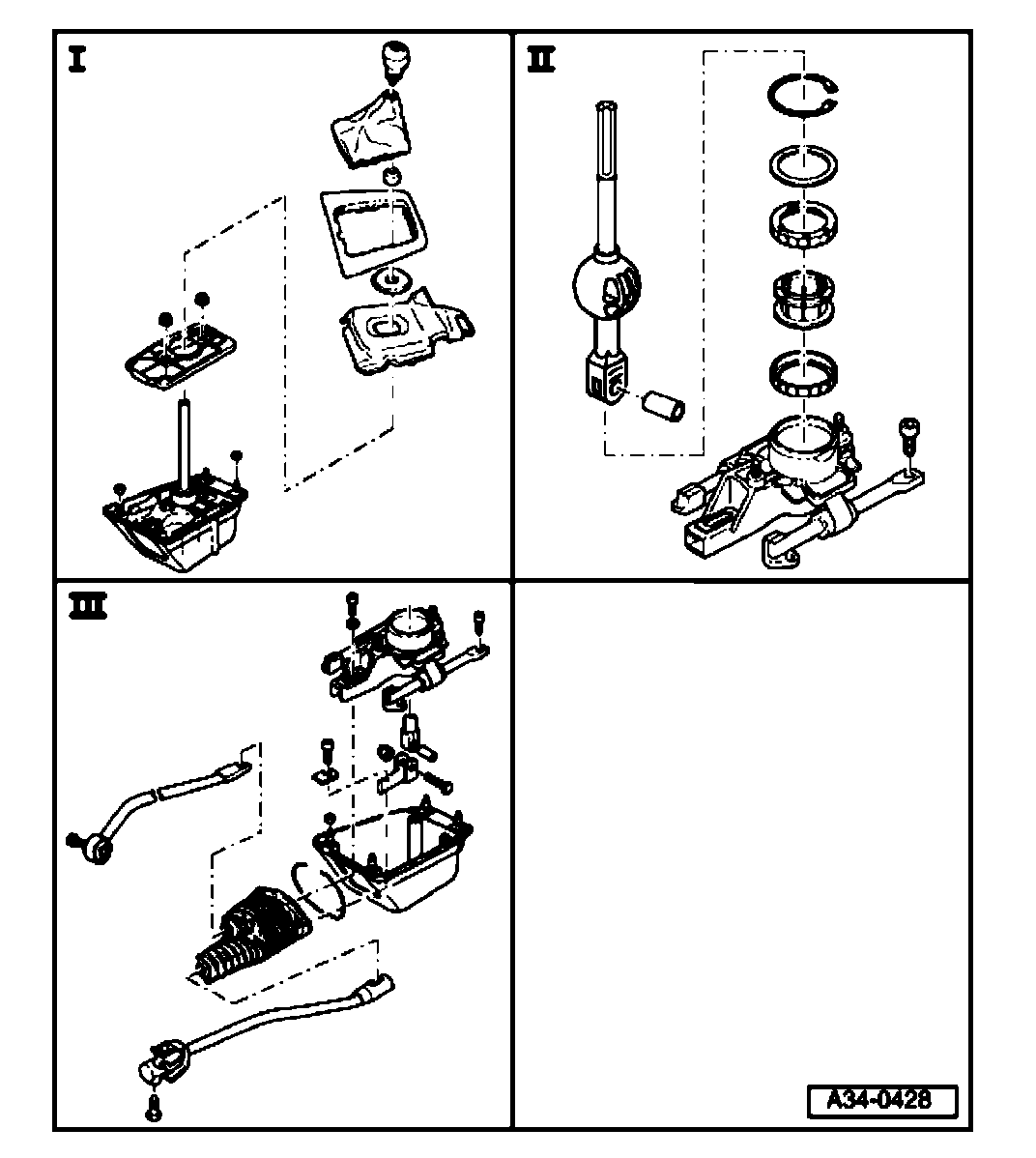

I - Removing and installing shift lever knob and protective boot
II - Servicing shift lever and - rear push rod
III - Servicing shift lever and - front push rod
Removing and installing selector mechanism
Adjusting gear selector mechanism
