Shift Lever and Rear Push Rod, Servicing

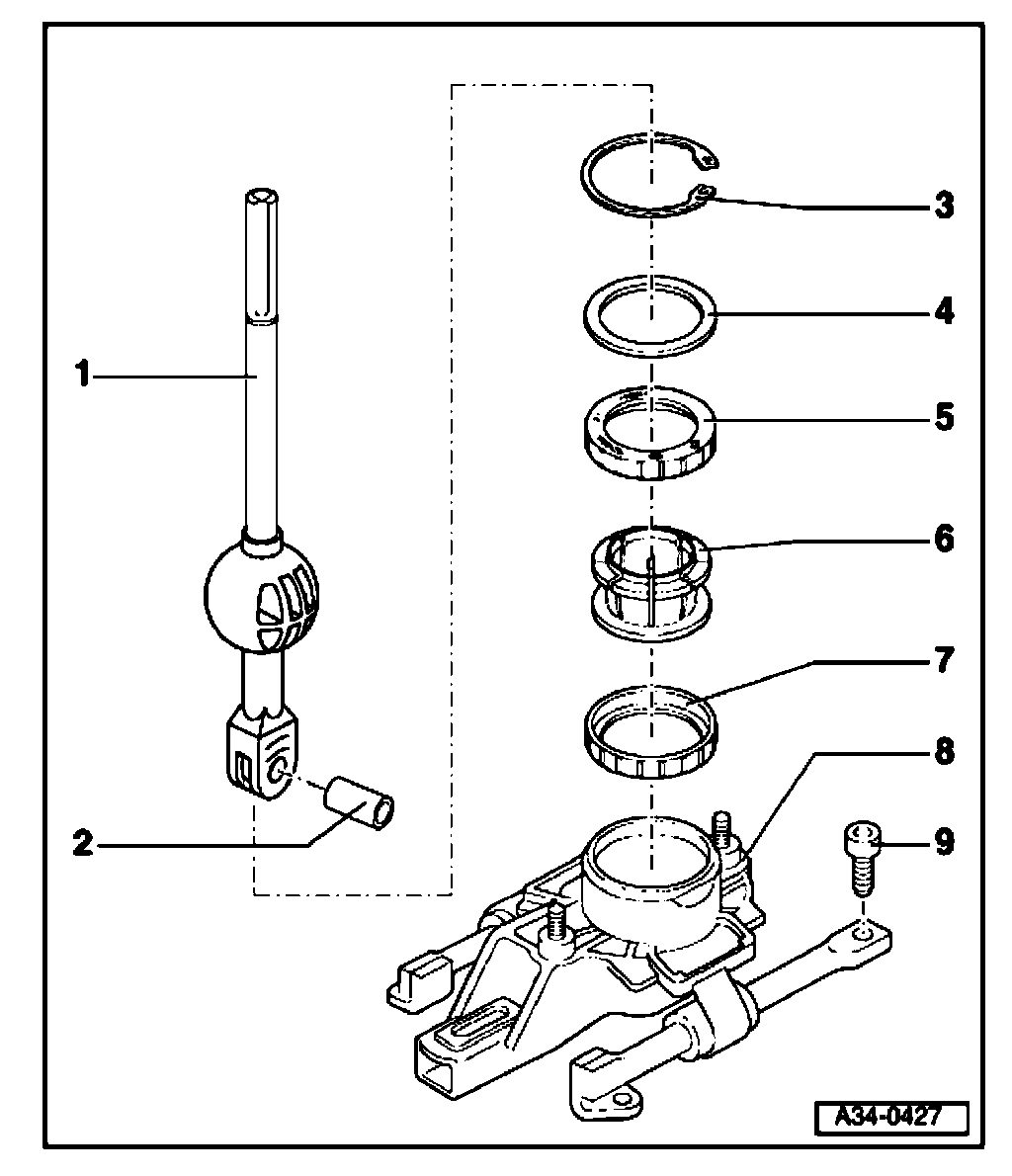

Shift lever and rear push rod, servicing





Note: Lubricate mountings and sliding surfaces with polycarbarnide grease, part no. G 052 142 A2.

1 - Shift lever
^ Lubricate area around bottom hole with G 052 142 A2
^ Lubricate ball with G 052 142 A2 polycarbamide grease
2 - Spacer tube
^ Lubricate with G 052 142 A2 polycarbamide grease
3 - Circlip
^ Always replace 4 - Washer
^ Collar faces ball guide (item 6
5 - Rubber ring
6 - Ball guide
^ Removing and installing
7 -Rubber ring
8 - Rear push rod
^ With ball housing
^ Removing and installing
9 - Bolt, 6 Nm
^ Qty. 4
^ For rear push rod - to shift lever housing
