Selector Rod and Front Push Rod, Servicing

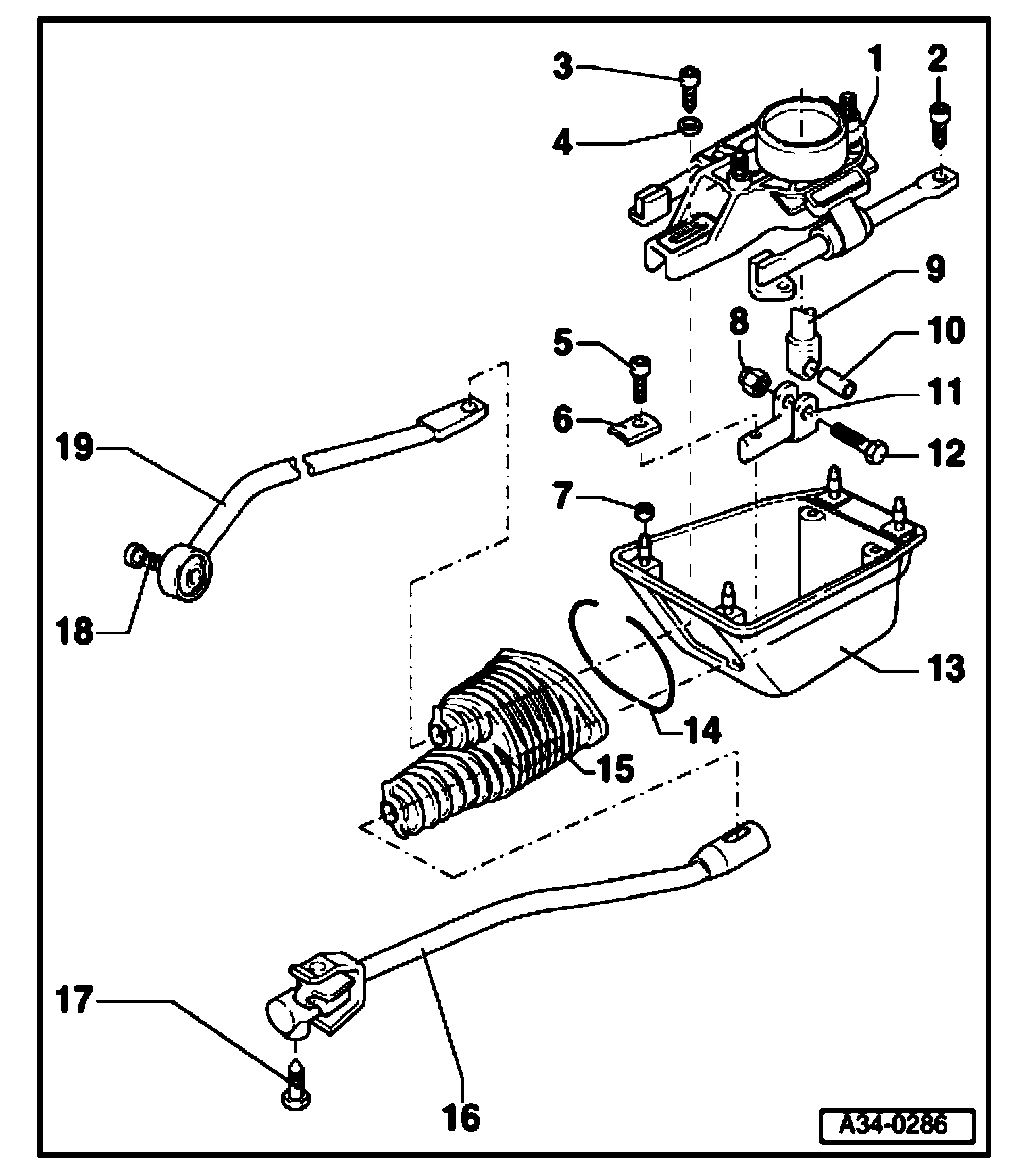

Selector rod and front push rod, servicing





1 - Rear push rod
2 - Bolt, 6 Nm
^ Qty. 4
^ For rear push rod - to shift lever housing

3 - Hex socket-head bolt, 25 Nm
4 - Washer
5 - Hex socket-head bolt, 25 Nm
6 - Clamp
7 - Hex nut, 10 Nm
^ Qty. 4
^ For shift lever housing to body
8 - Hex nut, 10 Nm
^ Self-locking
^ Always replace
9 - Shift lever
10 - Spacer tube
^ Lubricate with G 052 142 A2 polycarbamide grease
11 - Selector fork
12 - Bolt
13 - Shift lever housing
14 - Tensioning ring
15 - Bellows
^ Remove catalytic converter and front heat shield before removing and installing

Notes:
^ Carefully pull boot over selector rod
^ Place boot on markings of selector rod and push rod

16 - Selector rod
^ With selector joint
17 - Bolt, 23 Nm
^ Self-locking
^ Always replace
18 - Hex socket-head bolt, 40 Nm
^ Cannot be removed from bearing bushing on front push rod
19 - Front push rod
