Reverse Idler Gear, Removing and Installing

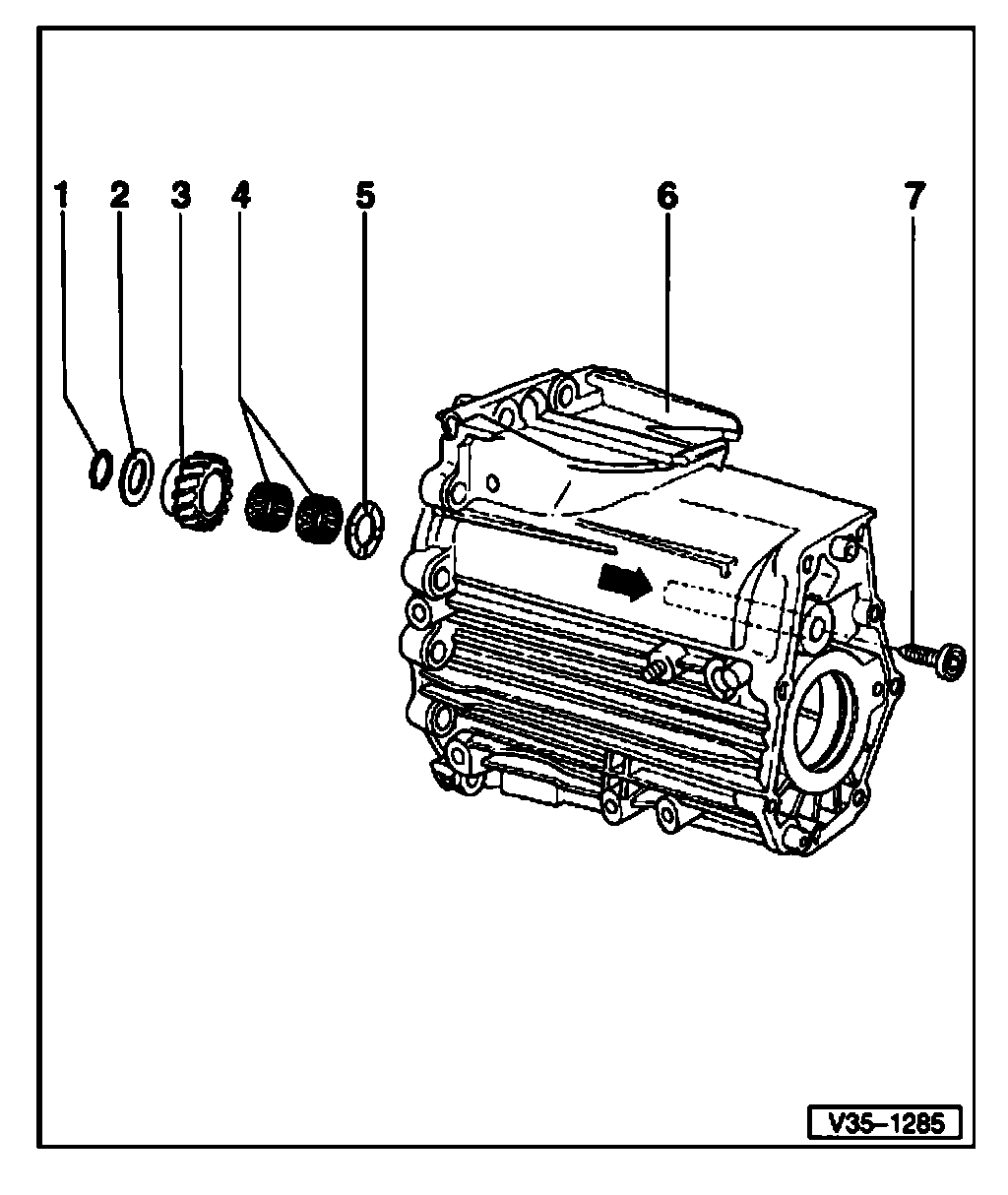

Reverse idler gear, removing and installing





1 - Circlip
2 - Support plate
3 - Reverse idler gear
^ Different versions, Assignment
4 - Needle bearing
5 - Thrust washer
6 - Transmission cover
^ With axle for reverse idler gear (arrow)
^ Your do not need to remove axle for reverse idler gear in order to remove reverse idler gear
^ Axle for reverse idler gear is not available as replacement part
7 - TORX bolt, 35 Nm
^ For additional fastening of axle for reverse idler gear
