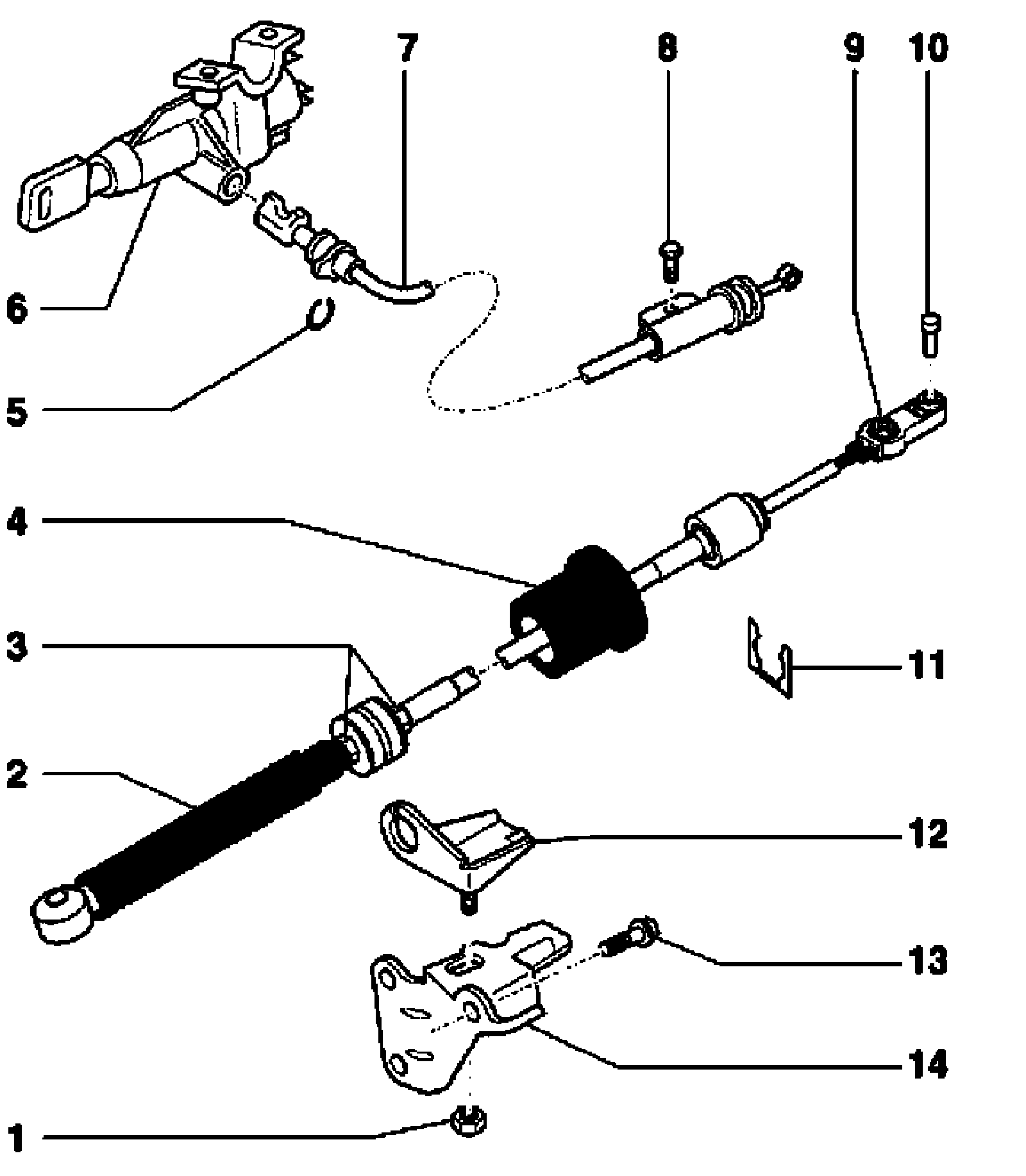

Selector Lever Cable and Locking Cable (Overview)

Selector lever cable and locking cable (overview)

Note:
^ Do NOT bend or kink selector lever cable.
^ Apply a thin coat of polyurea grease, Part No. G 052 142 A2, to the selector lever cable eyelet and ball socket





1. 23 Nm
2. Selector lever cable
^ Do not bend or kink, only lightly grease cable eye and ball socket before installing.
^ Selector lever cable must be replaced if rubber sleeves are damaged
^ When installing, make sure that rubber sleeve on transmission side is not twisted
3. Lock nuts - 12 Nm
4. Sealing collar
^ For selector lever cable
^ To be buttoned into shift mechanism bottom cover
5. Retaining clip
6. ignition starter switch
^ With ignition key removal lock
7. Locking cable
8. 9 Nm
9. Locking screw - 13 Nm
^ For selector lever cable
^ Loosen 1 turn for adjusting, do NOT remove completely
10. Pin
^ For selector lever cable
^ To remove selector lever cable, pull plastic locking spring on shift mechanism forward slightly and push up pin just far enough to release cable.
11. Retaining clip
^ For selector lever cable
12. Support bracket
^ For selector lever cable
13. 23 Nm
14. Bracket
^ For selector lever cable
