Locking Cable, Removing and Installing

Locking cable, removing and installing

Removing





Note: Do not kink locking cable.

CAUTION: Check steps required before disconnecting battery.





- Remove air conditioner operating unit
- Remove ashtray in center console
- Remove shift mechanism cover
- Turn ignition key to "ignition on" position.
- Move selector lever to position ?".

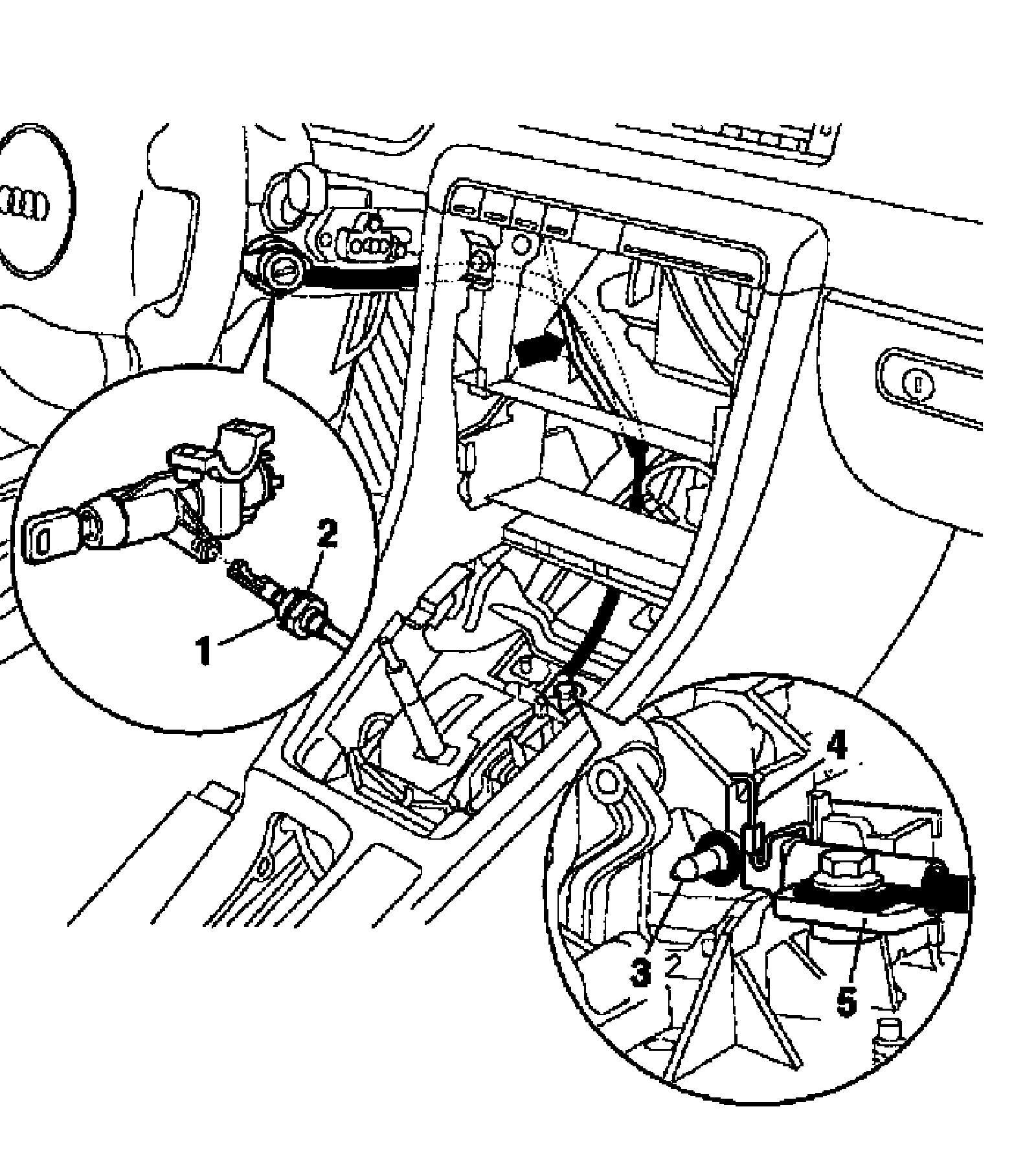

- Lift up securing ring -2- from locking device and pull locking cable -1- off ignition/starter switch.





- Lift up locking cable securing spring -4-. Pull locking cable support bracket -5- sideways off shift mechanism, then disengage locking cable eye.

Installing
Install in reverse sequence, note the following points:
- Route locking cable behind instrument panel brace (arrow) without kinking.
- Turn ignition key to "ignition on" position.
- Insert locking cable -1- in ignition/starter switch.





- Check that locking device -2- engages.
- Turn ignition/starter switch to locked position ("ignition off').
- Make sure that selector lever is in position ?".
- Engage eye of locking cable onto pin -3-.
- Lift up locking cable securing spring -4- slightly.
- Insert locking cable support bracket -5- into shift mechanism casing from right until locking cable securing spring -4- engages.
- Adjust locking cable.
- Check steps required after connecting battery
