Right Vent Temperature Sensor -G151-, Removing and Installing




Right Vent Temperature Sensor -G151-, Removing And Installing

Removing
- Remove glove box

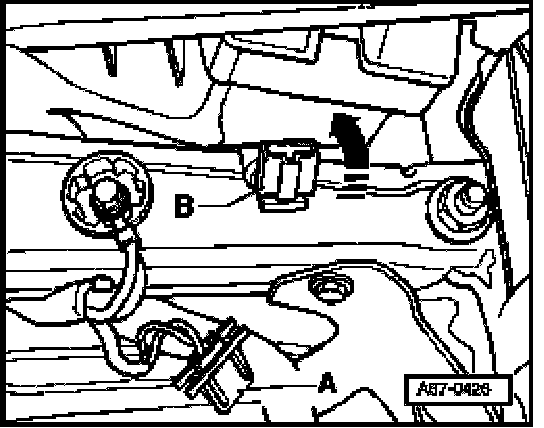

- Disconnect connector -A-.
- Turn sensor -B- 90 degrees (1/4 turn) and pull out of air guide channel.

Installing
Installation is the reverse of removal.
