Left Footwell Vent Temperature Sensor -G261- Remove & Install

Left Footwell Vent Temperature Sensor -G261-, Removing And Installing
NOTE: Observe connector arrangement to both sensors -G261- and -G262- (mix-up alert)

Removing
- Remove A/C Control Head -E87-

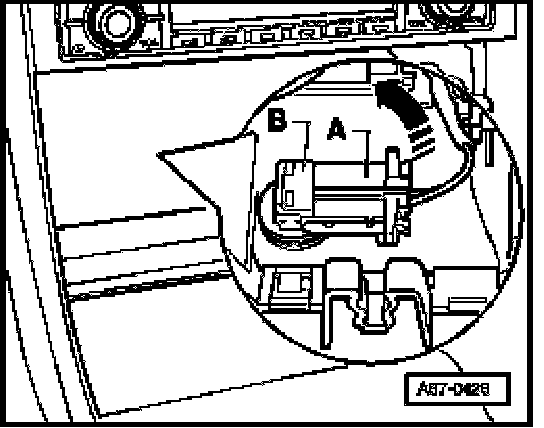

- Reach through opening for the A/C control head and disconnect connector -A-.
- Turn vent temperature sensor -B- approx. 90 degrees in direction of arrow.
- Remove vent temperature sensor out of air conditioner.

Installing
Installation is the reverse of removal.
