Ambient Temperature Sensor / Switch HVAC: Service and Repair

Fresh Air Intake Duct Temperature Sensor -G89-, Removing And Installing

Removing
- Remove glove compartment:

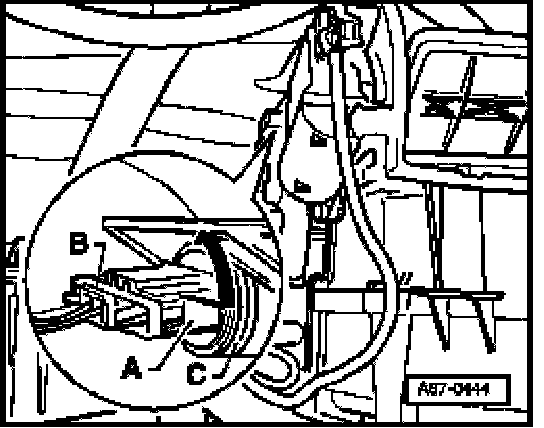

- Reach between air conditioner and floor of plenum chamber on temperature sensor -A- and turn approx. 90 degrees.
- Pull temperature sensor -A- out of air conditioner.
- Disconnect connector -B-.

NOTE:
If temperature sensor cannot be removed:
- Remove dust and pollen filter.







- Turn temperature sensor -A- in direction of arrow approx. 90 degrees and remove from intake hole toward passenger compartment.


Installing







- Check seating of O-ring seal -C- (if necessary lubricate using soap water)

Install all removed components in reverse order.
