Brake Booster Vacuum Sensor: Service and Repair

Brake booster pressure sensor -G294-, removing and installing
Removal
- Take off the cover of the plenum chamber.
- Pull the electrical connector out downward.

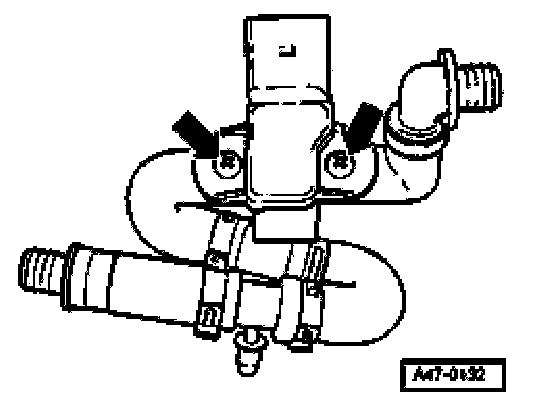

- Undo the bolts -arrow-.

Note: The sensor may also be attached by means of clips.

- Take out the vacuum switch -1-.

Installing
Install in reverse order.
