FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Audi
>>
2004
>>
A4 Cabriolet (8H7) L4-1.8L Turbo (AMB)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Testing and Inspection
>>
Constantly Variable Transmission 01J
>>

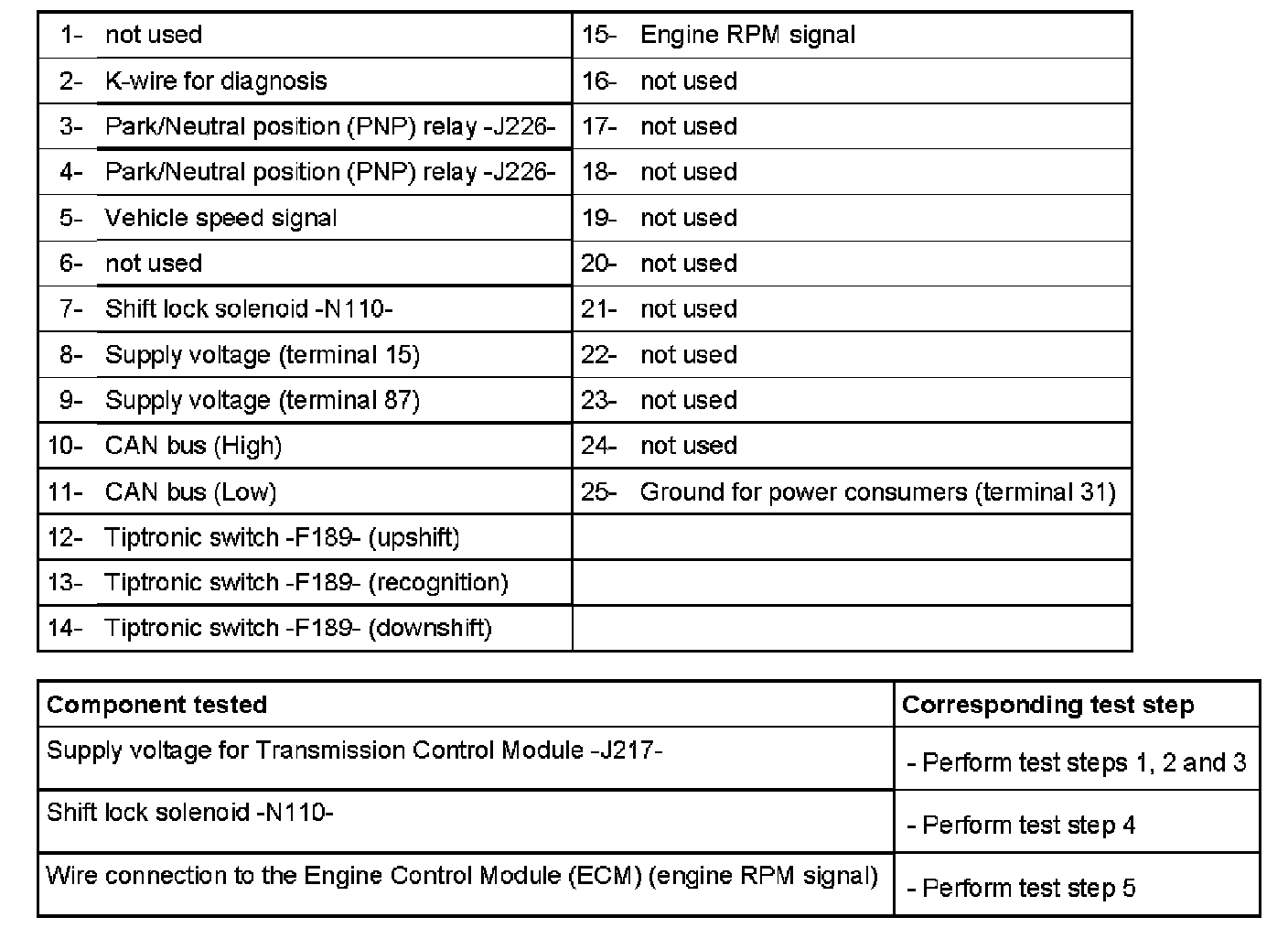

Multiple Harness Connector (25-Pin Connector) For Transmission Control Module ~J217- (Cavities on V.A.G 1598121)
Multiple Harness Connector (25-Pin Connector) For Transmission Control Module ~J217- (Cavities on V.A.G 1598121)
Part 2:
