Leak Detection Pump (LDP) -V144-, Removing and Installing

Leak Detection Pump (LDP) -V144-, Removing And Installing

Removing
- Remove left rear wheel.
- Remove rear left wheelhousing liner.

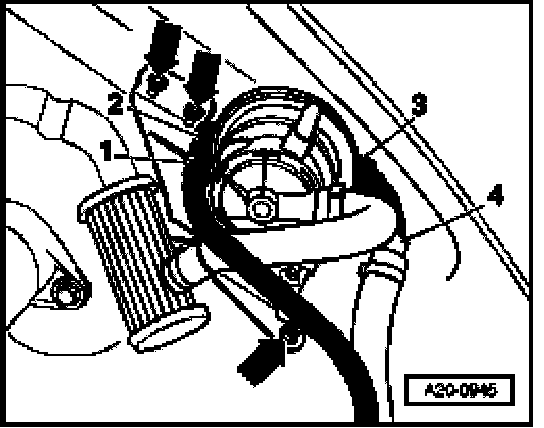

- Unscrew nuts (arrows).
- Remove LDP with bracket, disengage harness connector -3- with ignition off and disconnect.
- Remove hose connection -4- after pressing release button.
- Cut through cable tie -1- and disconnect hose -2-.

Installing
Installation is reverse of removal, noting the following:







- Secure hose -2- to LDP bracket with cable tie -1-.


NOTE: Secure all hose connections using hose clamps appropriate for the model type.


Tightening torque

Component Nm
LDP bracket to wheel housing 4
