EVAP Canister/Leak Detection System, Servicing

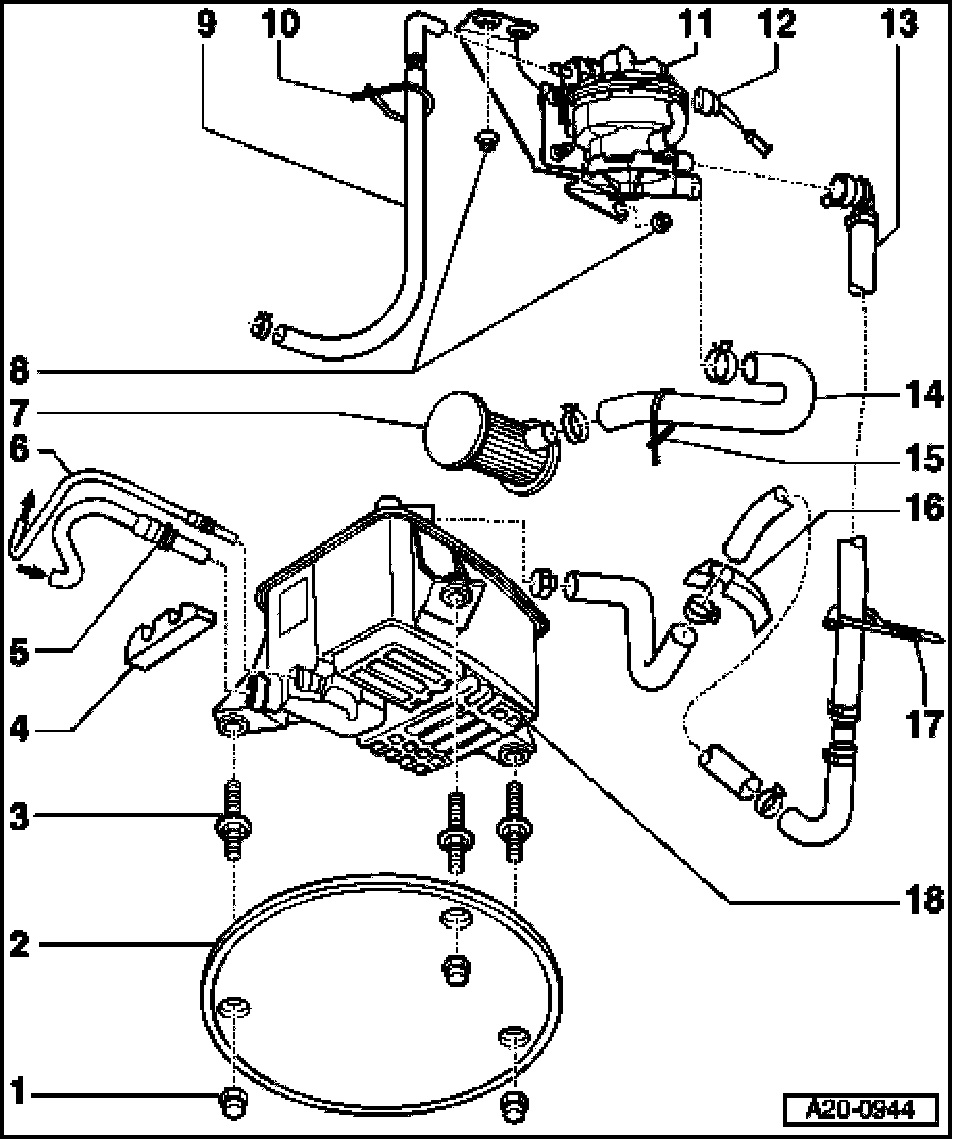

EVAP Canister/leak Detection System, Servicing (front- And All-wheel Drive Vehicles)







1 - Cap nut - 10 Nm
2 - Cover
- For EVAP canister
3 - Stud bolt - 15 Nm
4 - Sealing piece
5 - Ventilation line
- From gravity valve at fuel tank
- To remove, press release ring on EVAP canister
6 - Ventilation line
- To Evaporative Emission (EVAP) Canister Purge Regulator Valve -N80-
- To remove, press release ring on EVAP canister
7 - Air filter housing
- For Leak detection pump (LDP) -V144-
- No maintenance procedure
8 - 4 Nm
9 - Vacuum line
- To Leak detection pump (LDP) -V144-
10 - Cable ties
- For securing vacuum line to Leak Detection Pump (LDP) bracket
11 - Leak detection pump (LDP) -V144-
- Installation location: Under wheel housing liner in rear left wheel housing
12 - Electrical harness connector
- Black
13 - Connection hose
- Leak Detection Pump (LDP)/EVAP canister
- Pressure side
- To remove, press release button at connection on (LDP)
14 - Connection hose
- Leak Detection Pump (LDP)/air filter
15 - Cable ties
- For securing hose to Leak Detection Pump (LDP) bracket
16 - Sealing piece
17 - Cable ties
- For securing connection hose to wheel housing
18 - EVAP canister
- Installation location: Bottom of spare tire well
