Basic Setting (Function 04)

Basic Setting

With engine stopped and ignition switched on, the following operation can be carried out with the "Function 04" basic setting:
- Adaptation of the Throttle Drive Control to the Engine Control Module (ECM), see Display group 060
- Vehicles with automatic transmission: Adaptation of kick-down function of Throttle Position (TP) Sensor to Engine Control Module (ECM), see Display group 063

With the engine running, the following operations can be performed with the basic setting function:
- Generation of readiness code.
- Performance of Oxygen Sensor (O2S) and Oxygen Sensor control

Test conditions for operations with engine running
- No DTCs stored in Diagnostic Trouble Code (DTC) memory
- Coolant temperature at least 80 degrees C.
- Electrical devices switched off (radiator fan must not run during the test).
- Air conditioning switched off.
- Vehicles with automatic transmission: Selector lever in position P or N.

Test sequence
- Connect VAS 5051 tester and select vehicle system "01 - Engine electronics". Ignition must be switched on for this. Scan Tool Connecting

or, depending on desired operation:

- Start engine.

Display on VAS 5051:







- In selection -1-, click on diagnostic function "04 - Basic Setting".

Display on VAS 5051:







1 - Enter display group
- Enter desired 3-digit display group number in button field -2- and press -Q- button to confirm input.

Example:
- Press buttons -0-, -0- and -1- to select "display group number 001" and press -Q- button to confirm input.

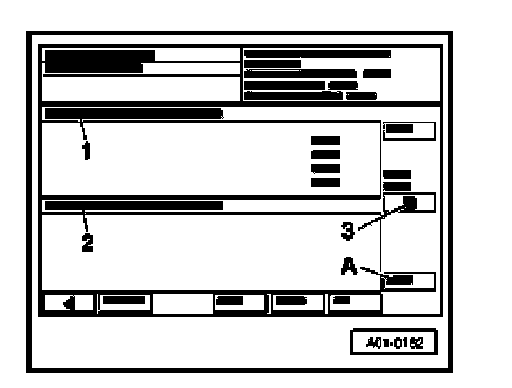

Display on VAS 5051:







1 - Measured values not in basic setting
2 - Measured values in basic setting
3 - Display group X
A - Activating basic setting


NOTE: Basic setting is initiated after button -A- is pressed.


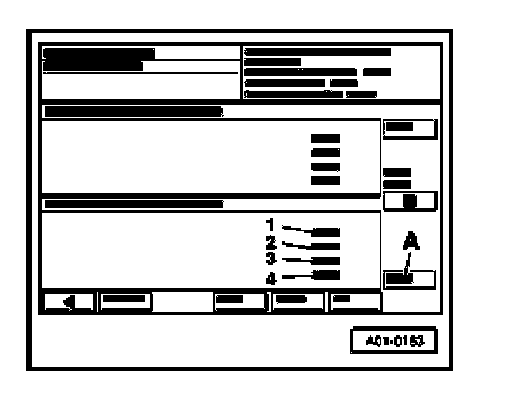

Display on VAS 5051:







1 - Display field 1
2 - Display field 2
3 - Display field 3
4 - Display field 4
- End function "04 - Basic setting" by pressing <- button.
