Measured Value Block, Reading

Measured Value Block, reading

CAUTION: Please observe safety precautions.

Test procedure
- Connect VAS 5051 Vehicle Diagnosis, Measurement and Information System and select vehicle system "02 Transmission Electronics". Ignition must be switched on.
or, depending on the desired operation:
- Start engine.





Display on VAS 5051
- Touch -1- diagnostic function "08 Read Measured Value Block".





Display on VAS 5051
1 - Enter display group Max. input value = 255
- On key pad -2- enter desired 3-digit display group number -List of Display Groups, and confirm entry by touching Q button.

Example:
- Enter "001 " for "Display group number 001 " and confirm by touching Q button





Display on VAS 5051 for display group 001 to 255:
1 - Display group X
2 - Display field 1
Display field 2
Display field 3
Display field 4

Note:
^ If a display field is not being used, there will be no display.

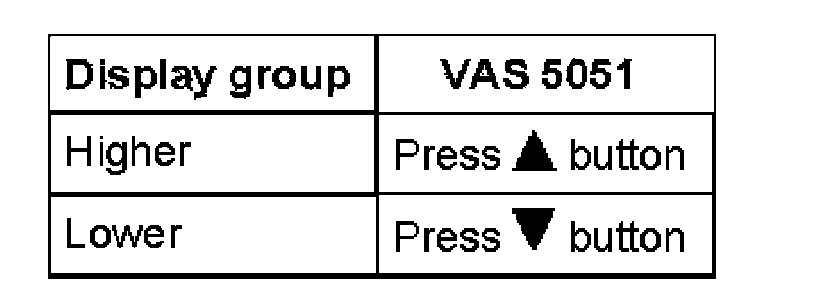

^ To switch to another display field, proceed as follows:





- End function "08 Read Measured Value Block" by touching 4 button.

Part 1:

Part 2:

Part 3:

Part 4:

Part 5:

Part 6:

Part 7:

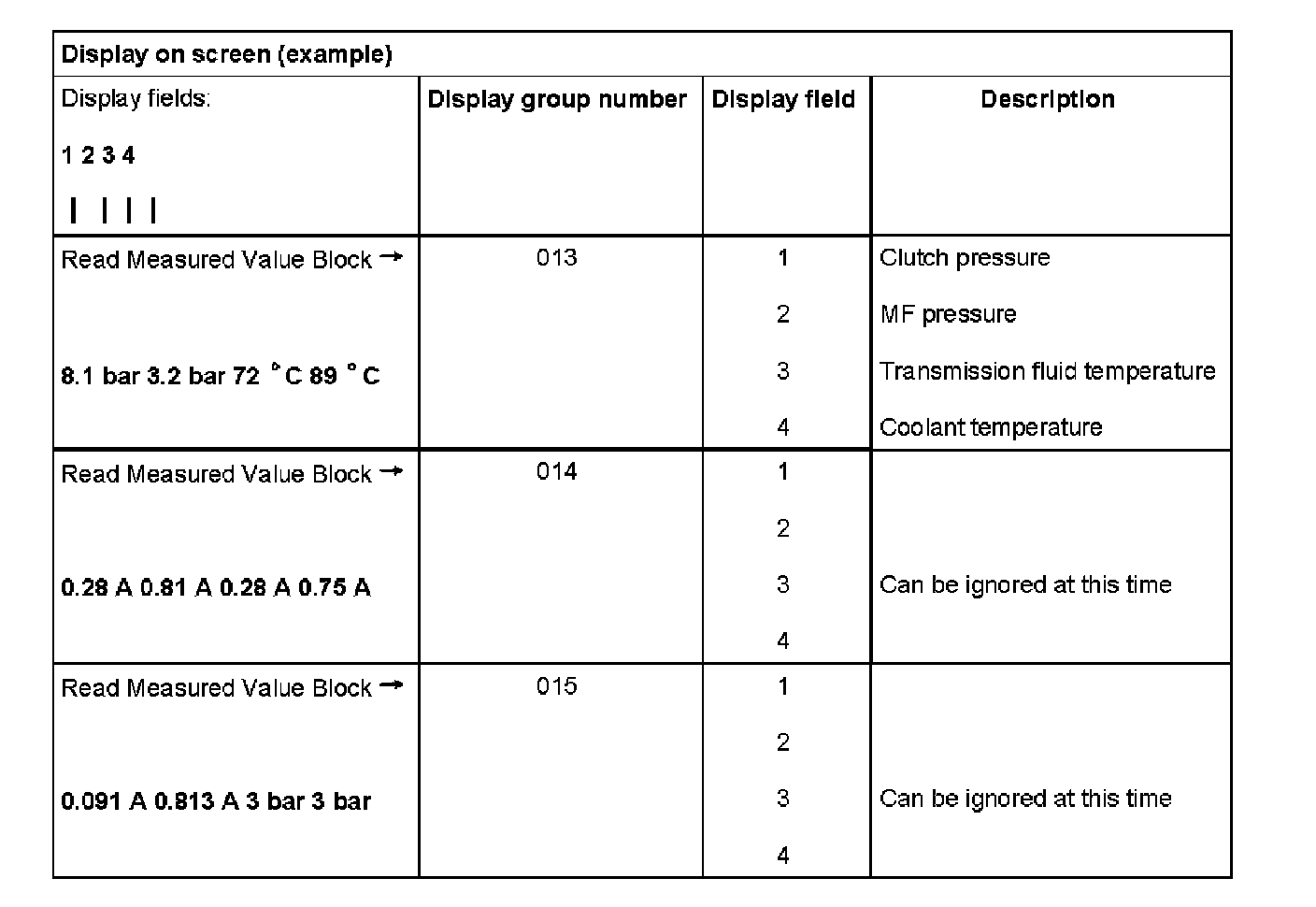

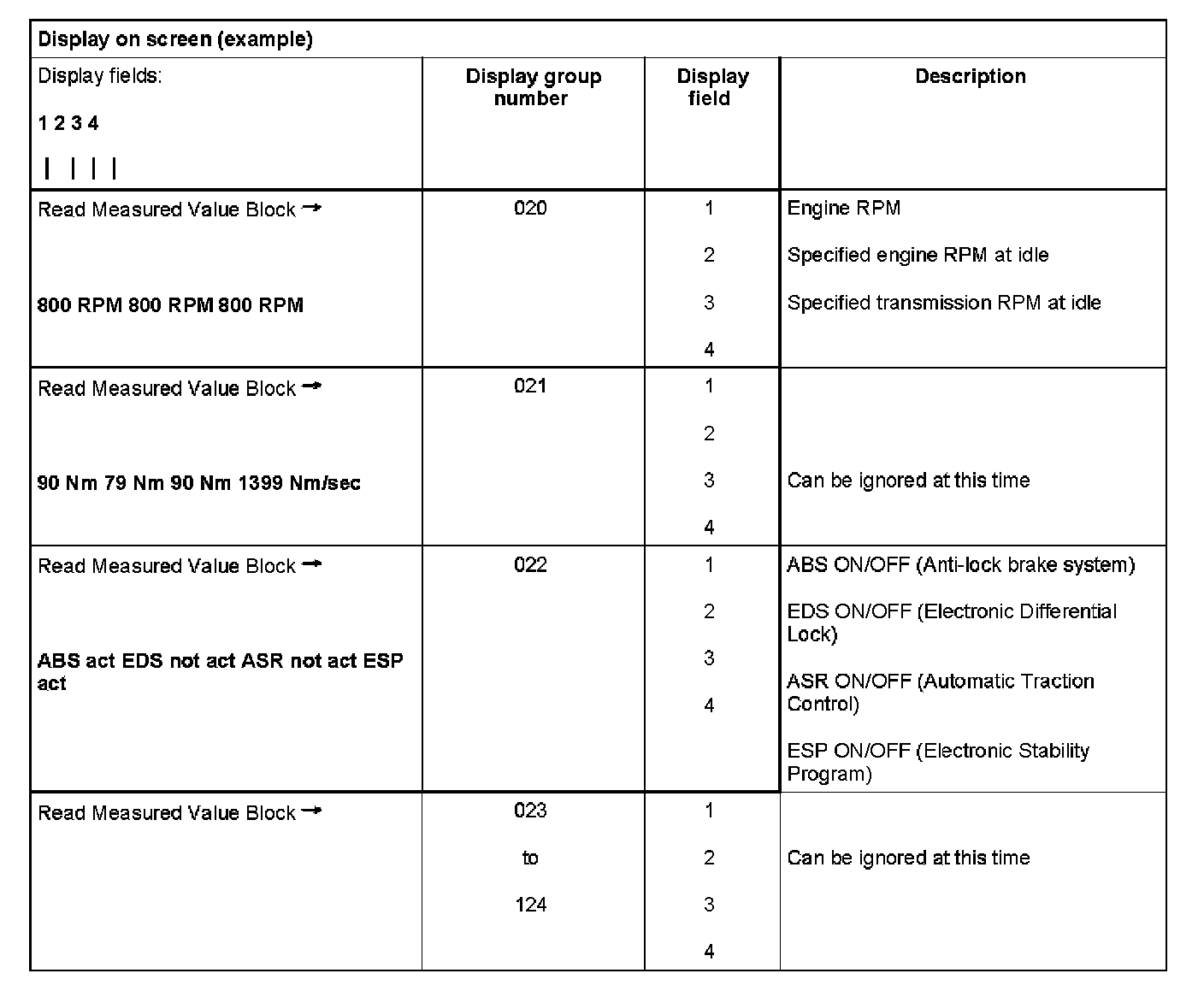

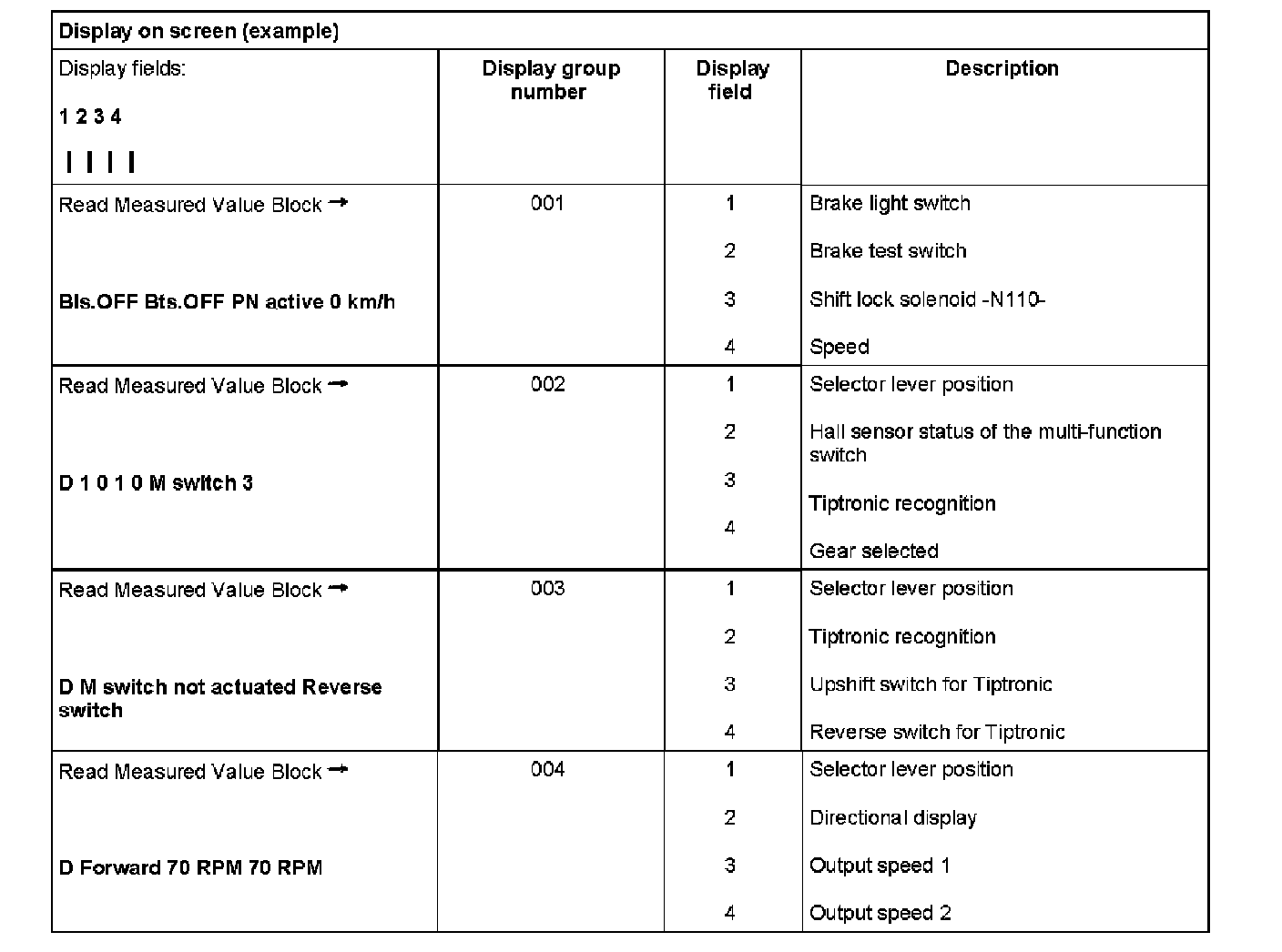

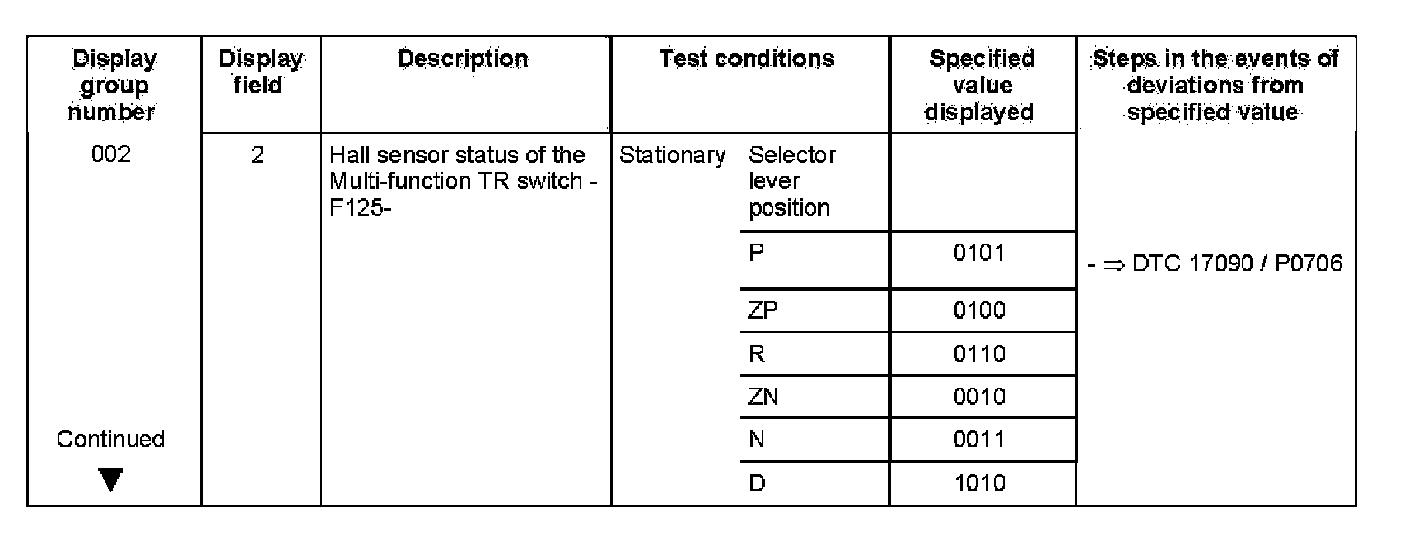

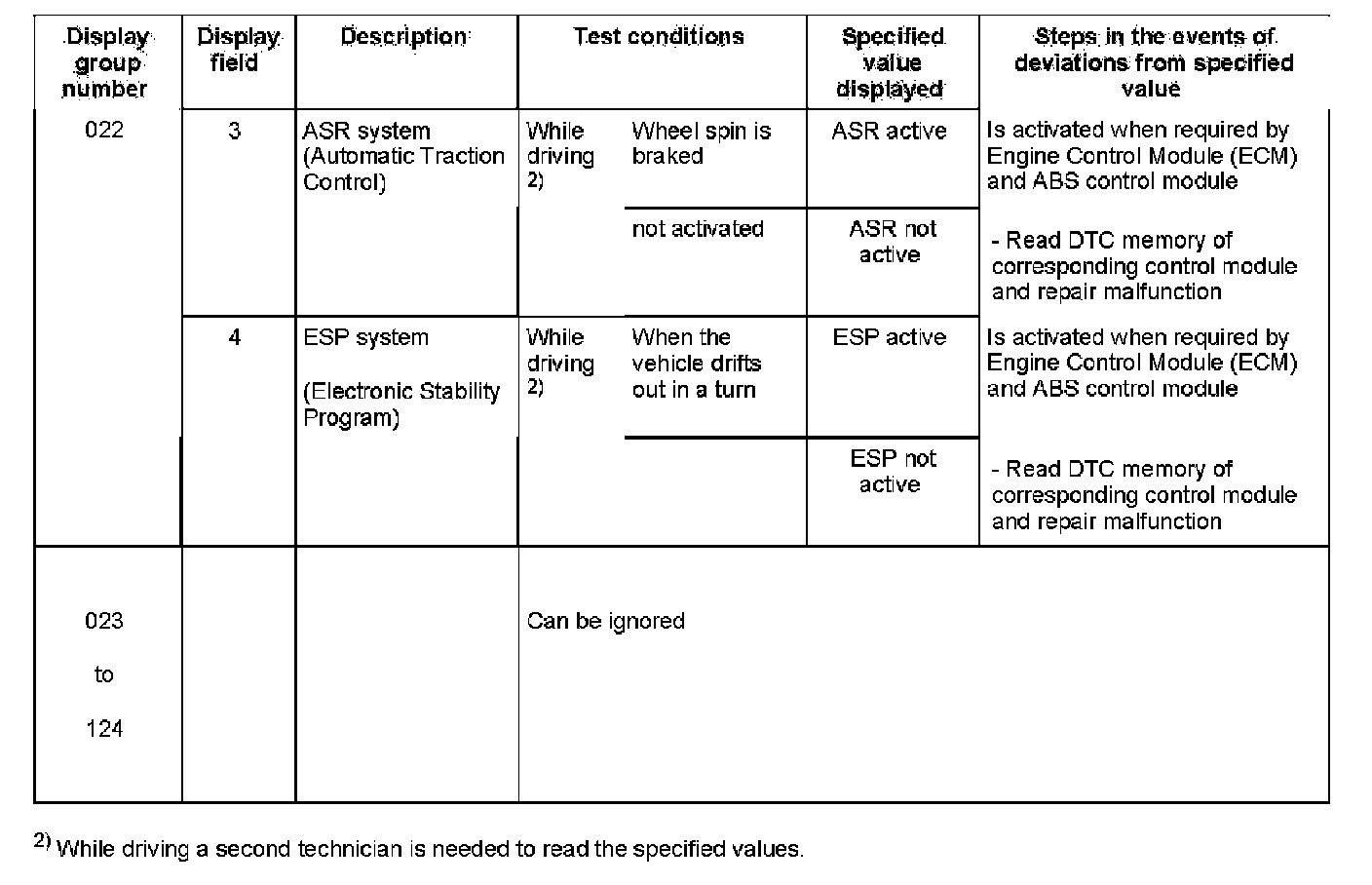

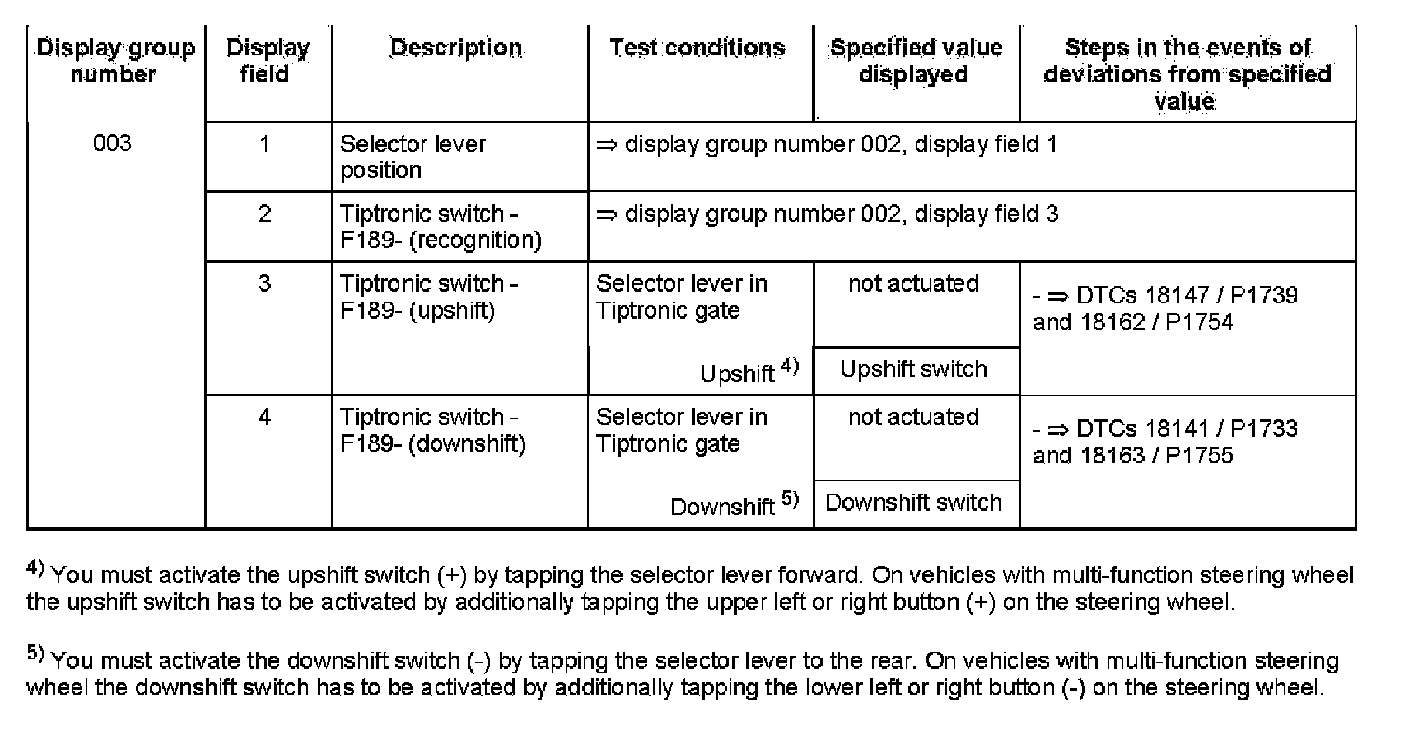

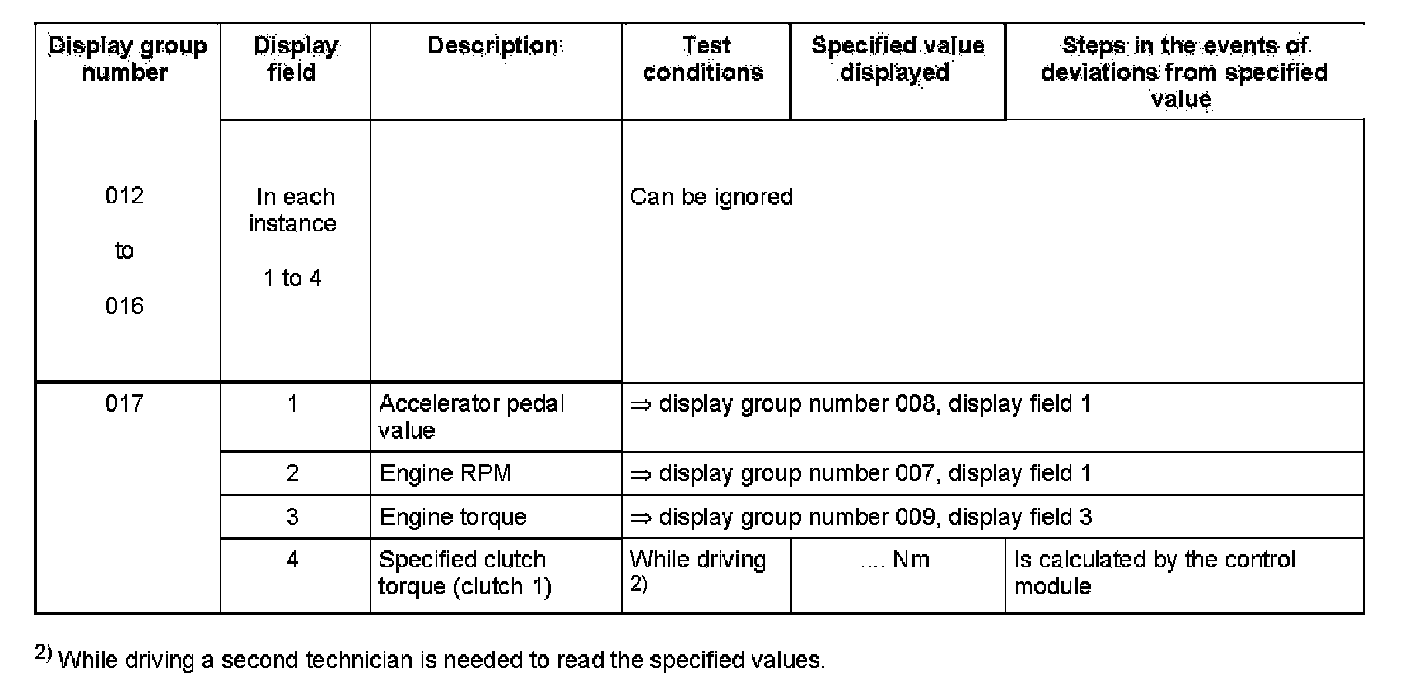

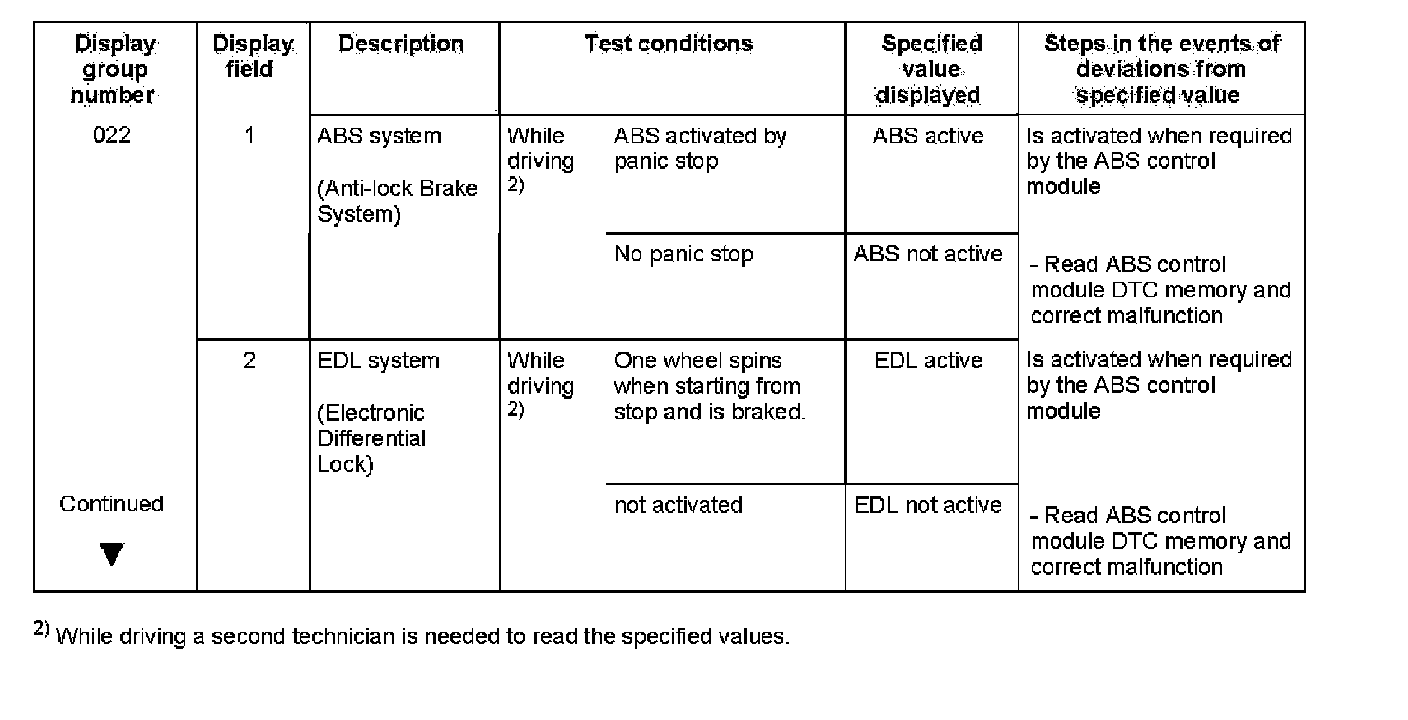

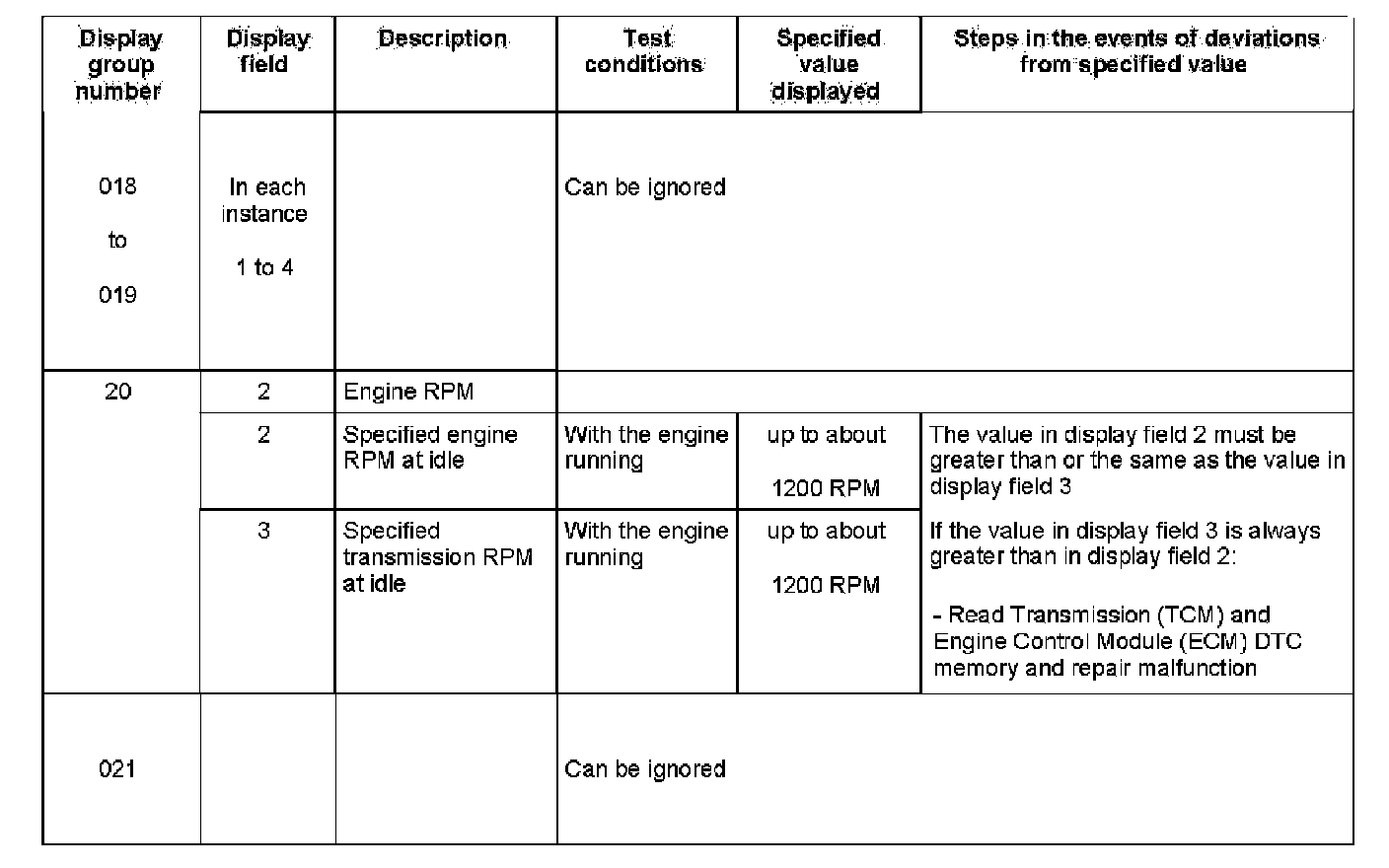

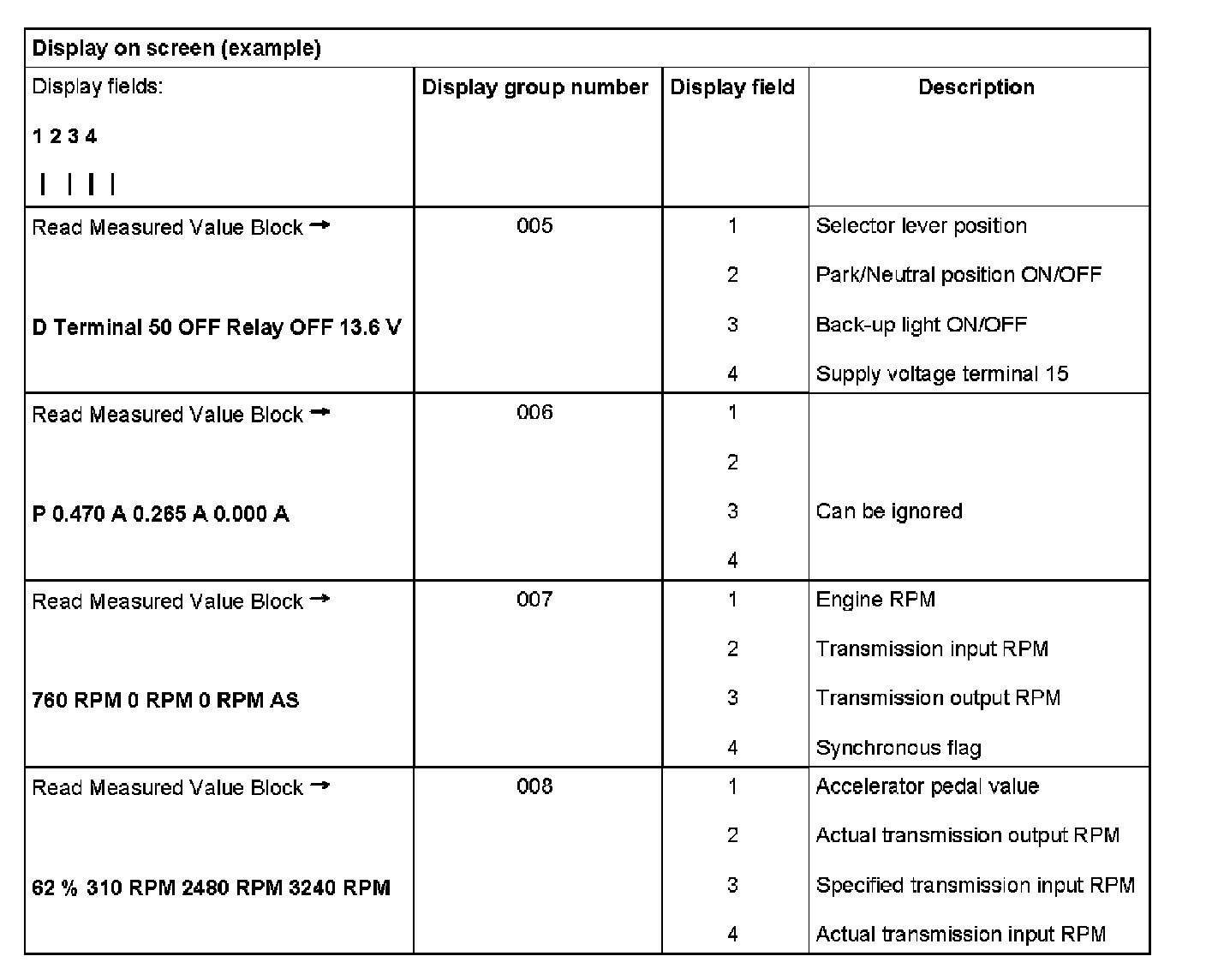

List of Selectable Display Groups

Note: The legend for the values in the individual display fields can be found under- "Test Chart for Measured Value Blocks".

Part 1:

Part 2:

Part 3:

Part 4:

Part 5:

Part 6:

Part 7:

Part 8:

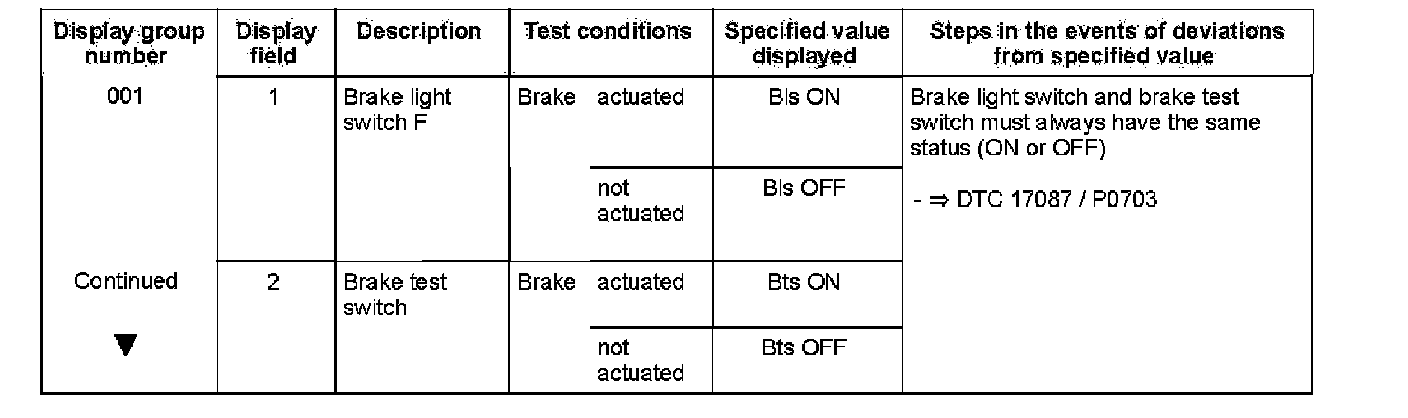

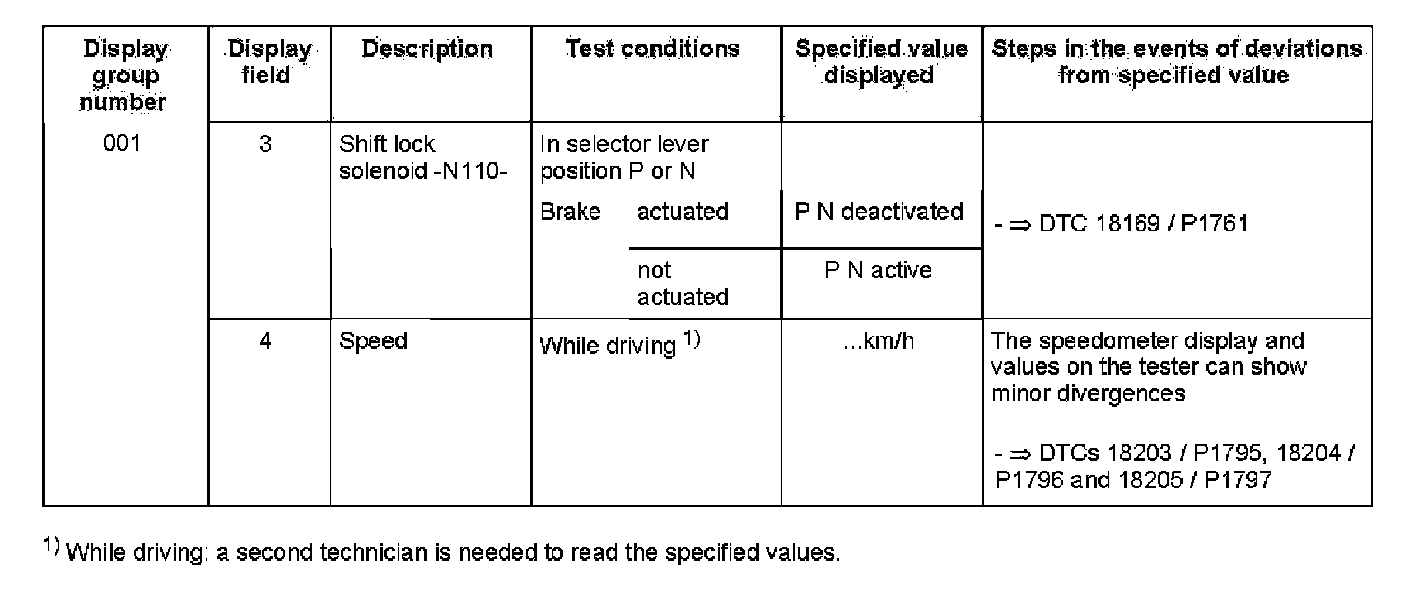

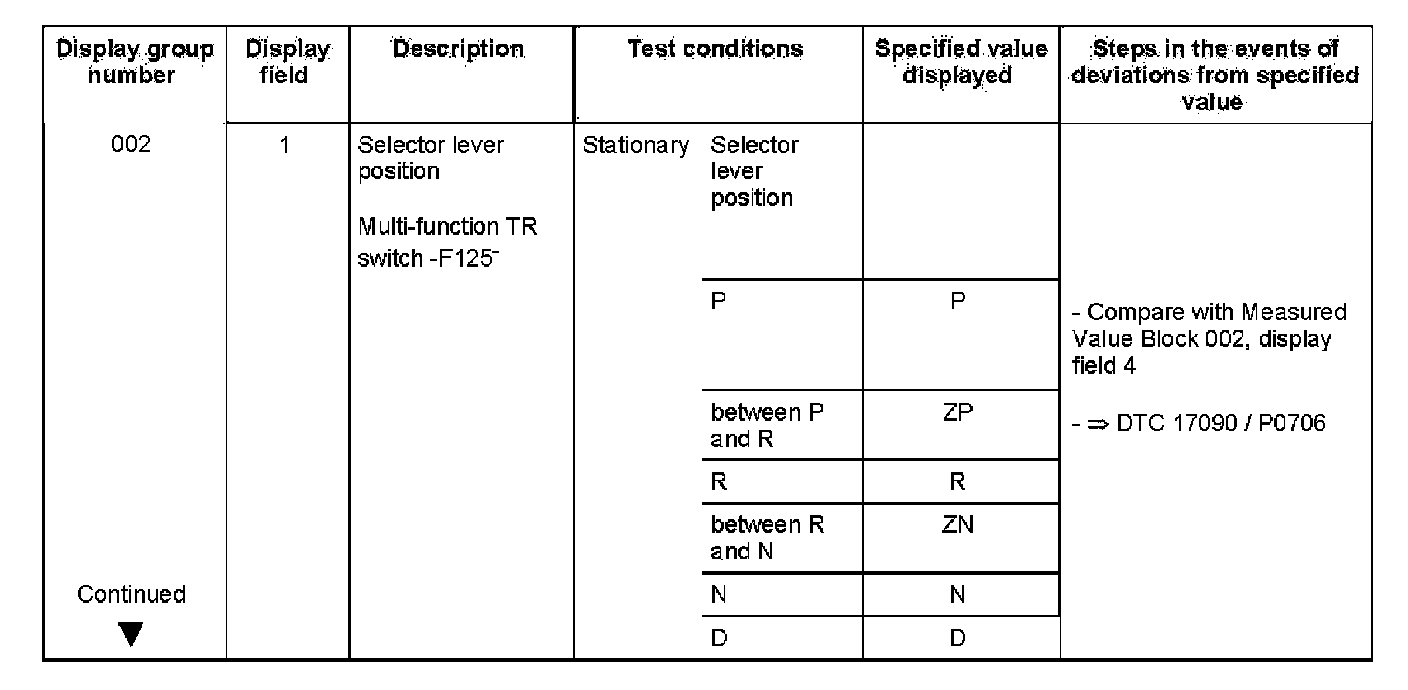

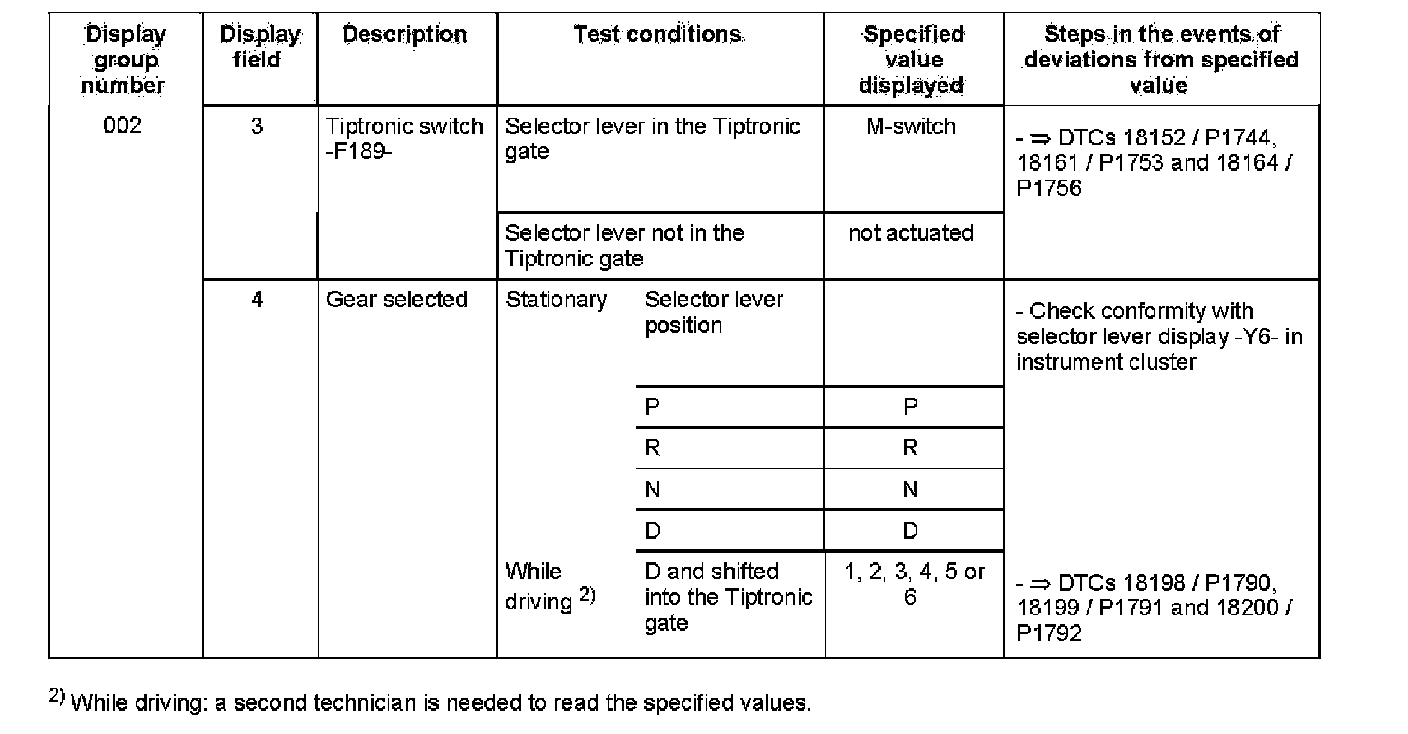

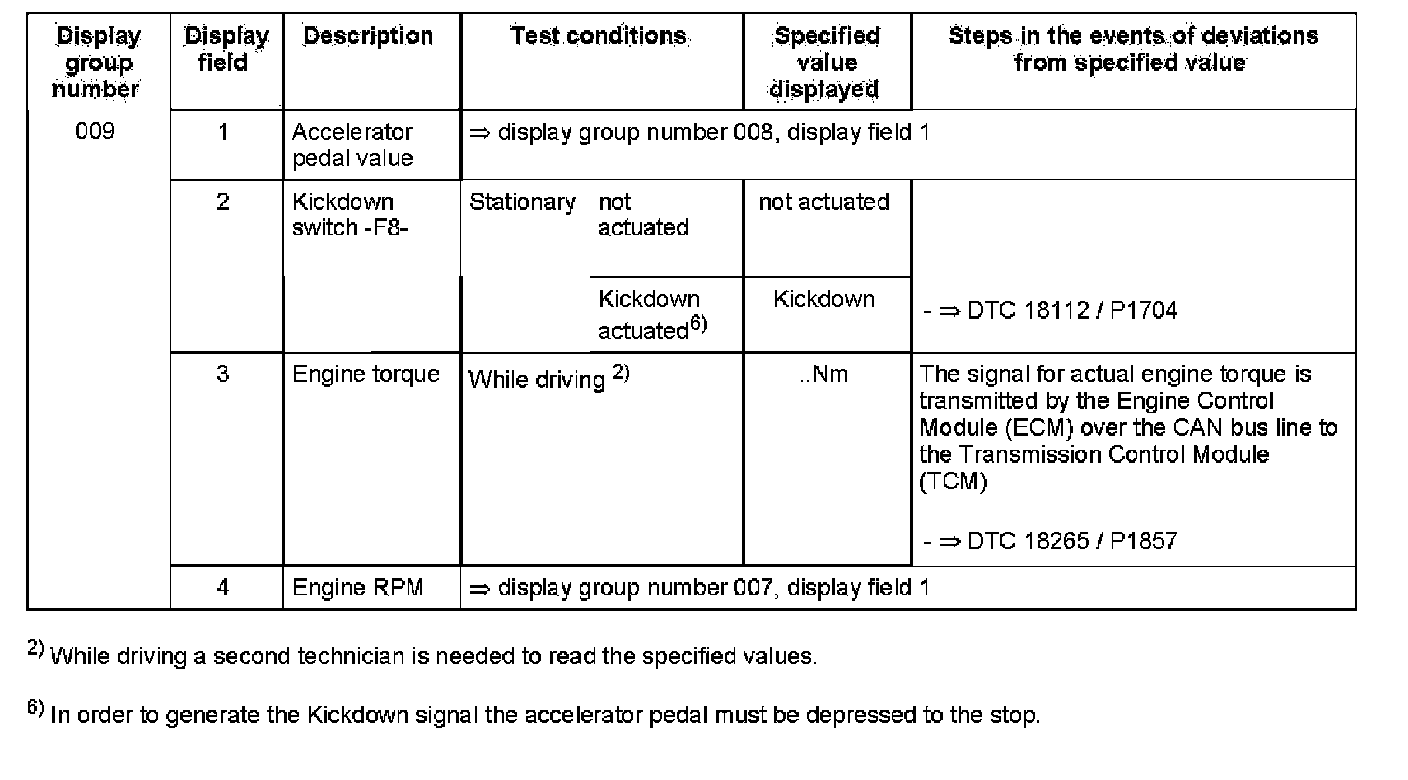

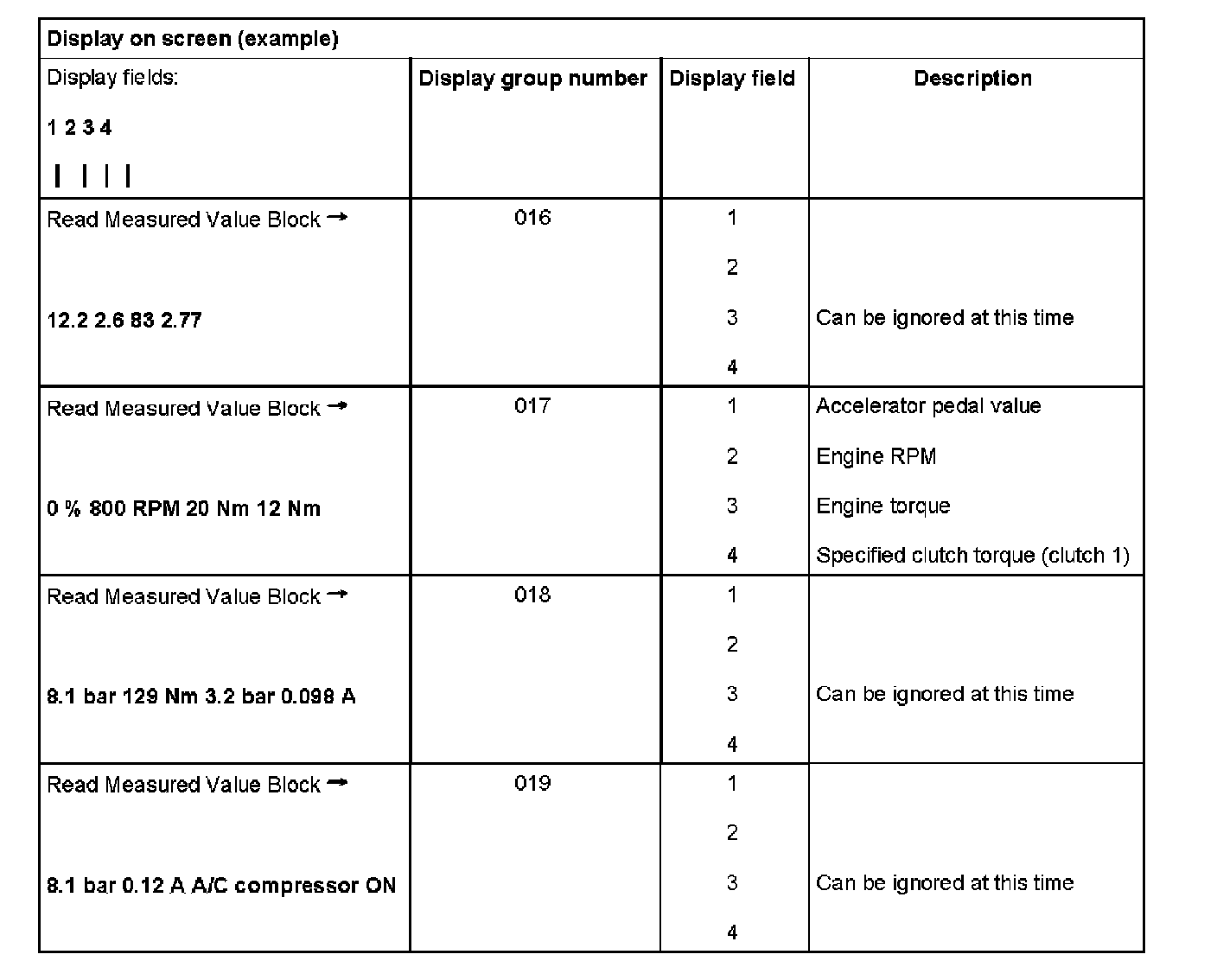

Measured Value Block table

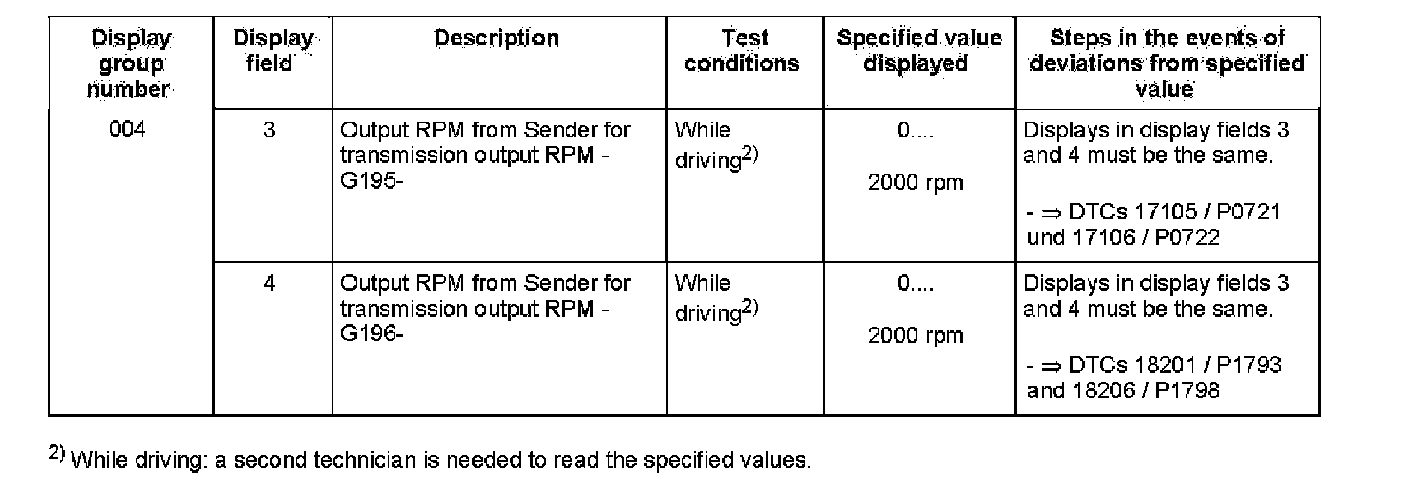

Notes on display group number 004:
^ If "0 RPM" is shown in display field 3 or 4, the corresponding sender is faulty and the Transmission Control Module (TCM) must be replaced.
^ If "0 RPM" is shown in display field 3 and 4, there is a mechanical defect in the transmission, and the transmission must be replaced.

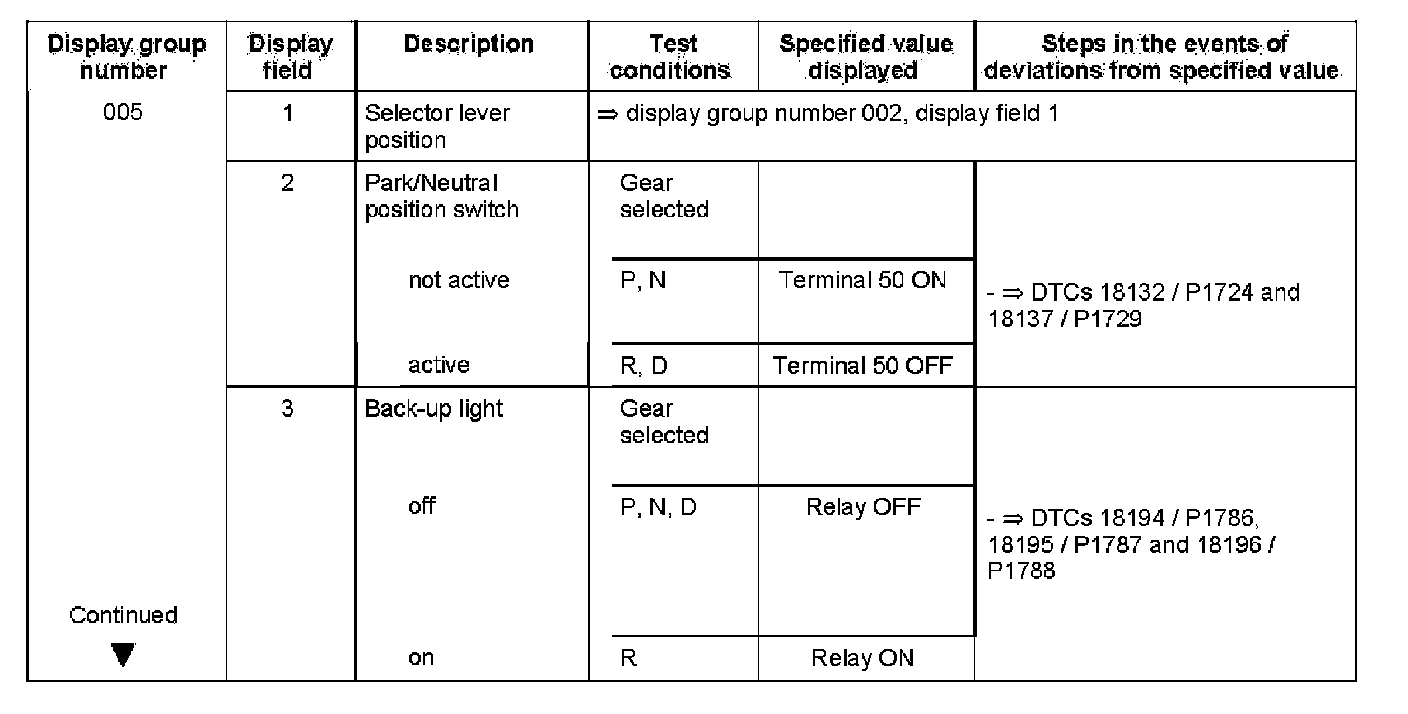

Part 1:

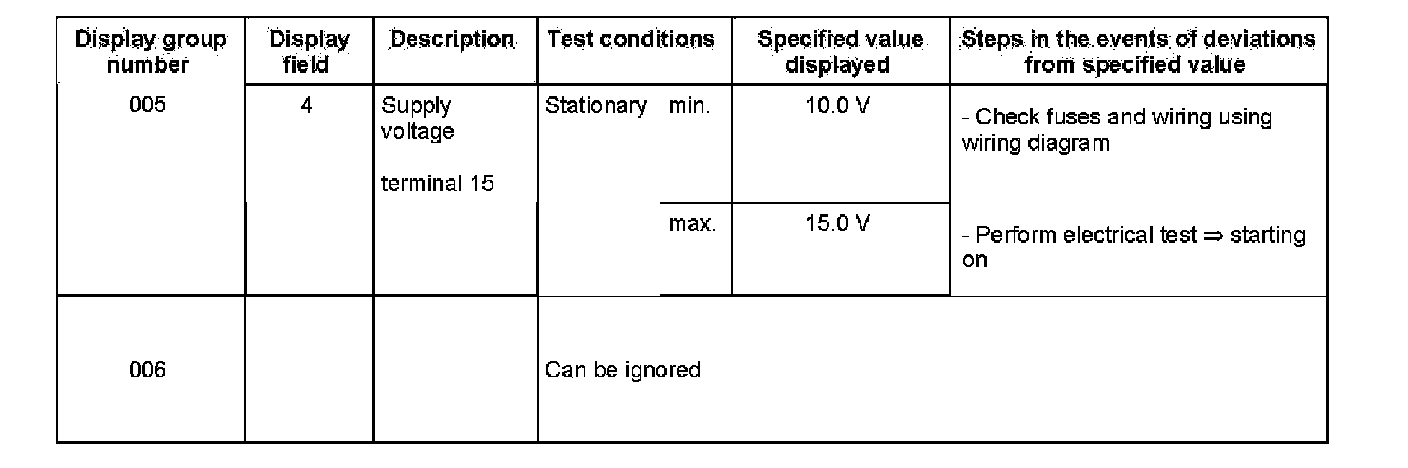

Part 2:

Part 3:

Part 4:

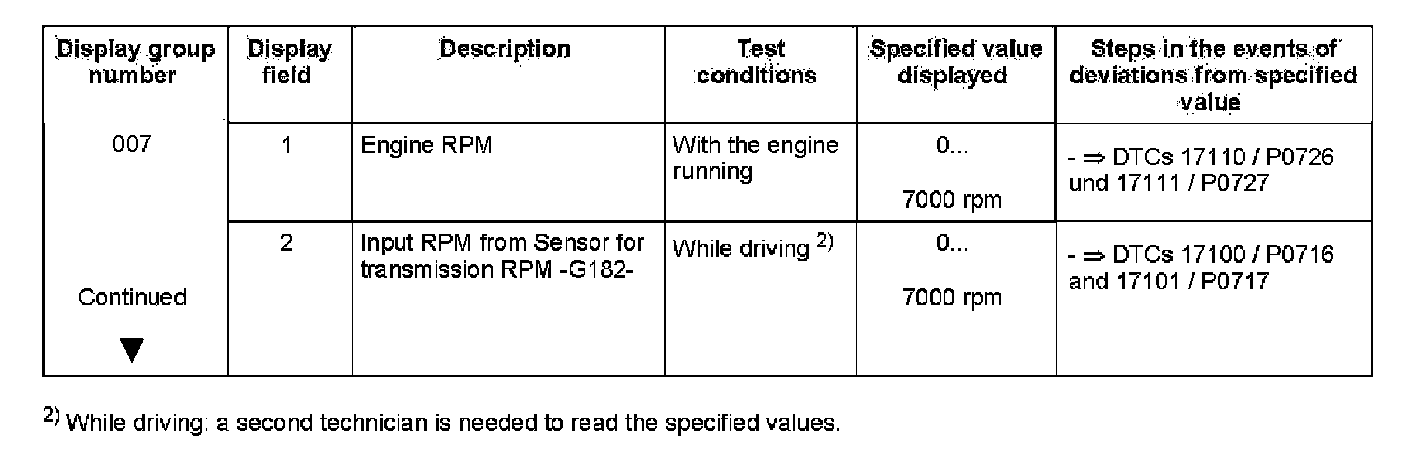

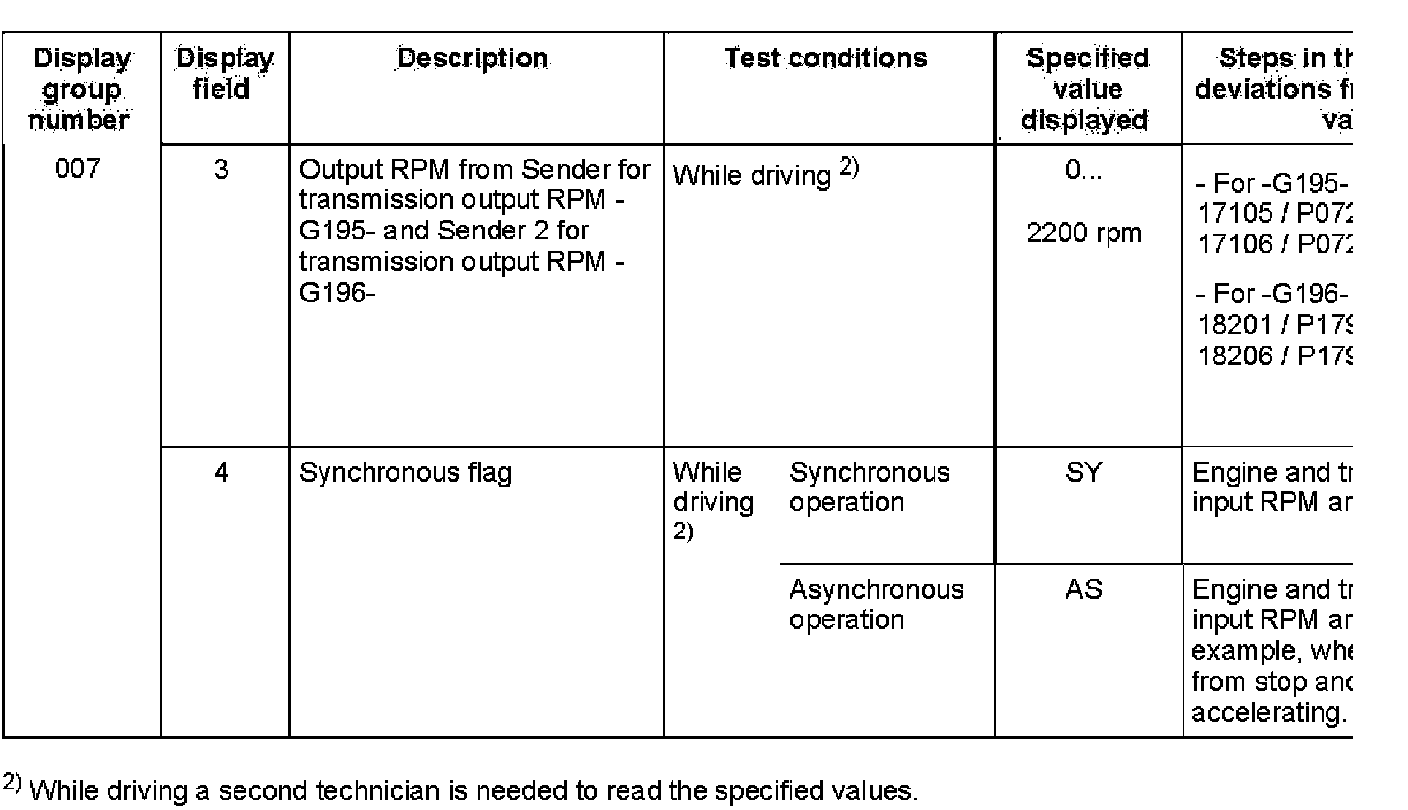

Note on display group number 007, display field 4:
^ If "AS" is always displayed, the clutch is slipping. The ATF must be changed. "AS" is still displayed the transmission must be replaced.

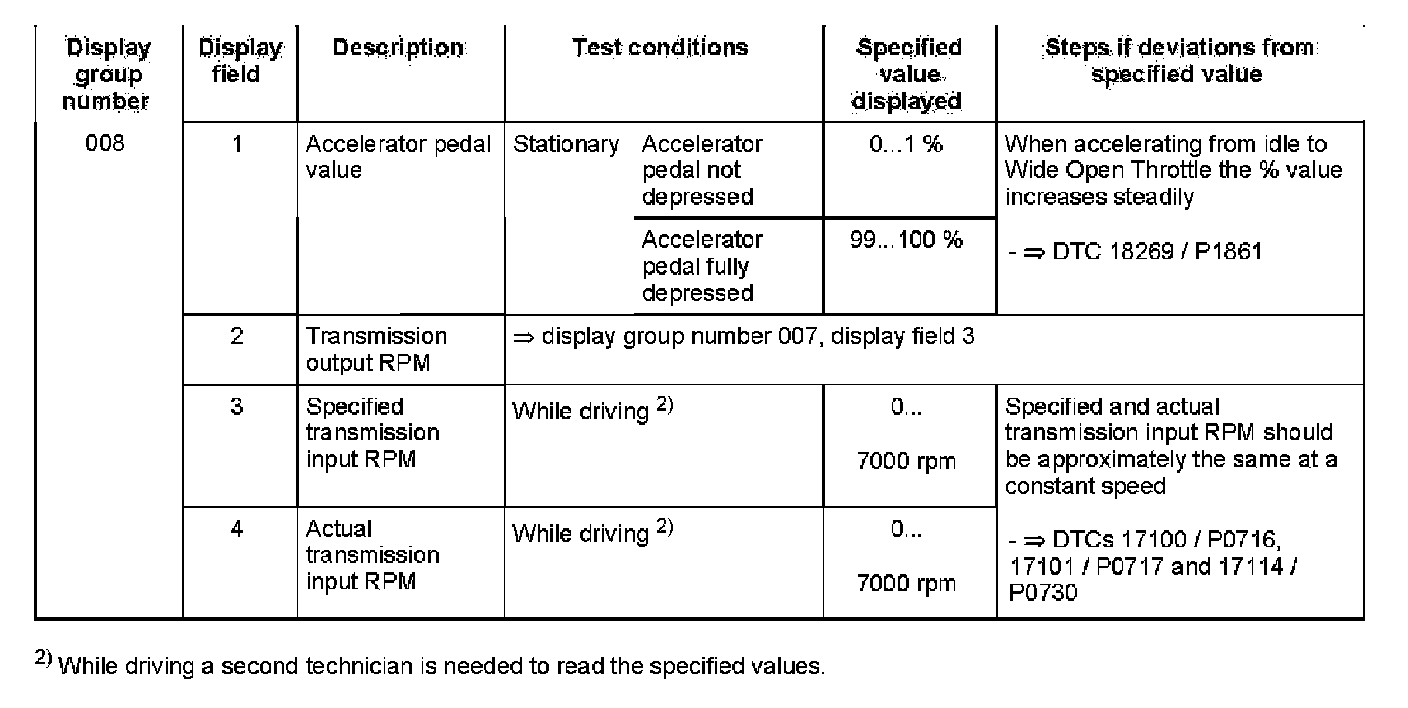

Part 1:

Part 2:

Part 3:

Part 4:

Part 5:

Part 6:

Part 7:

Part 8:

Part 9:

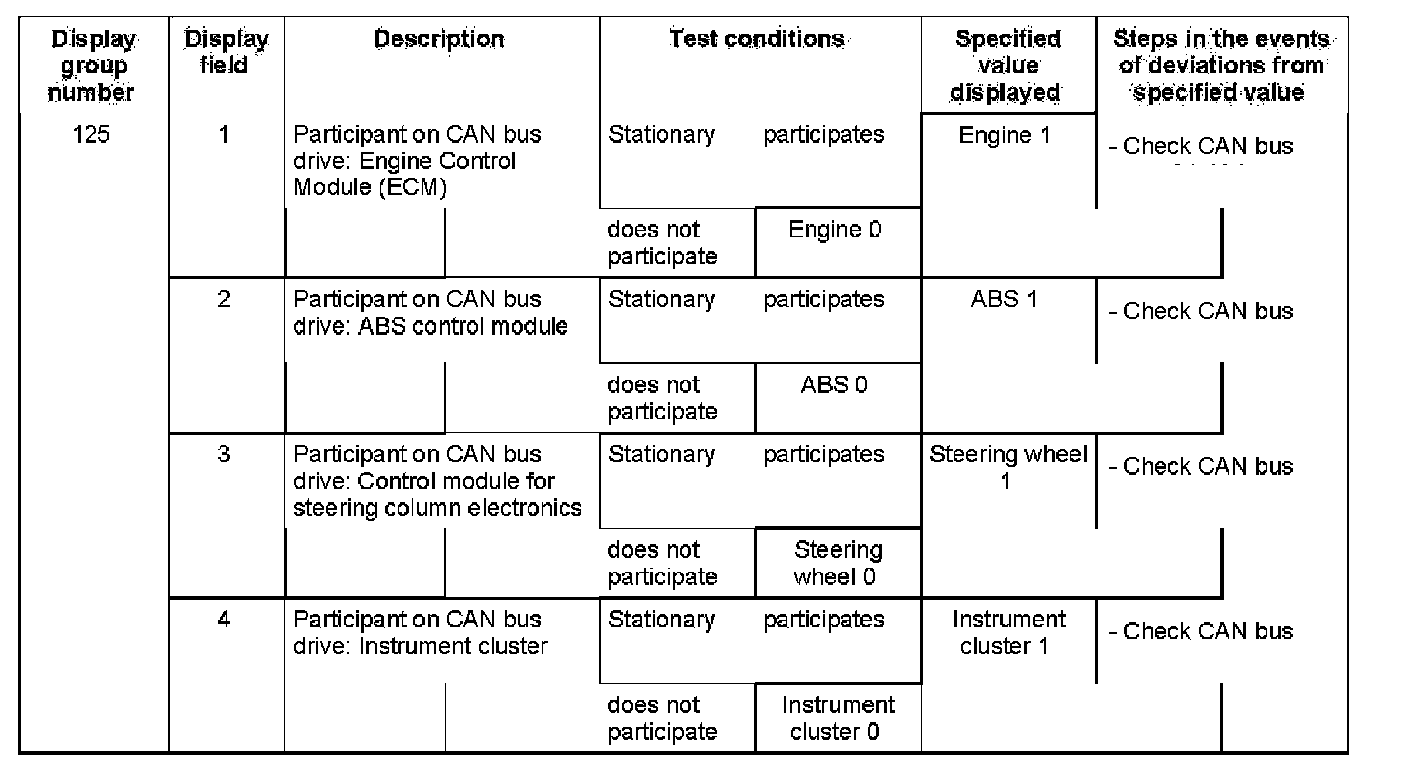

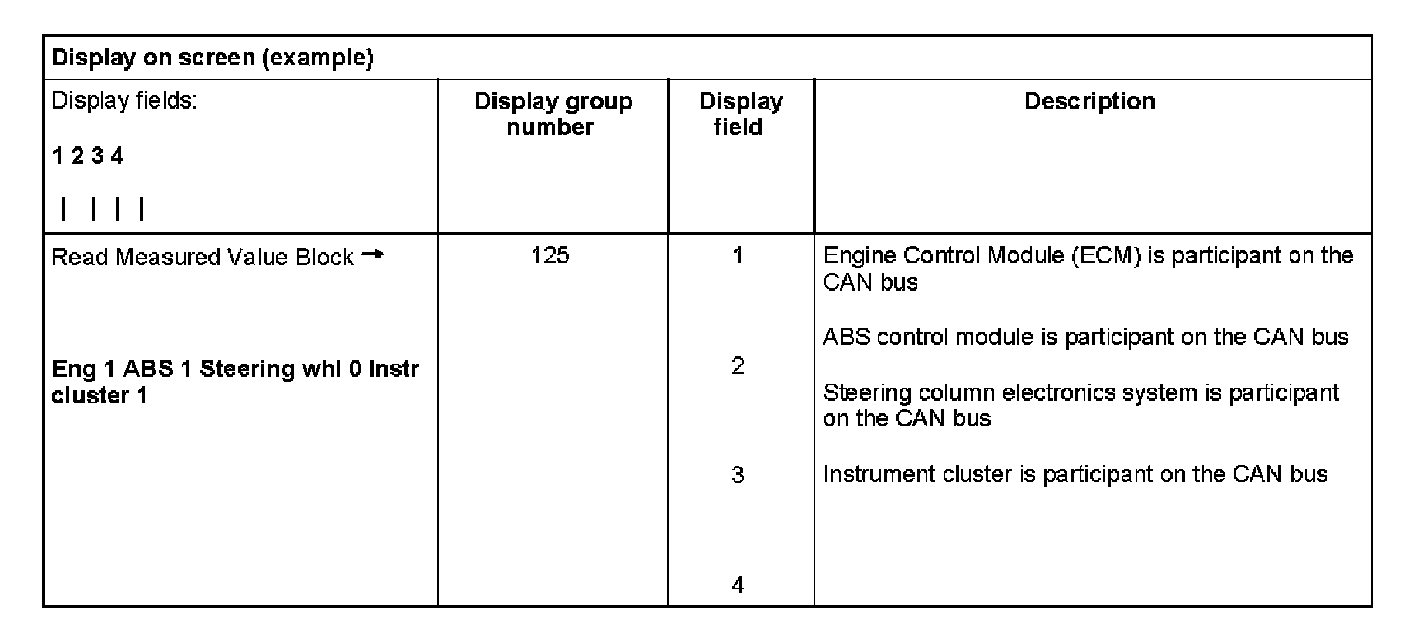

Notes on display group number 125
^ If "I " is displayed, communication from the corresponding control module to the Transmission Control Module (TCM) is 0.K.
^ If "0 " is displayed and not trouble code has been set in the DTC memory, the corresponding control module does not have CAN capability (or is faulty).

Adaptation
Adaptation must be performed after the following operations:
^ After replacing the Transmission Control Module (TCM) -J217
^ After coding the Transmission Control Module (TCM)
^ After reprogramming (flash) the Transmission Control Module -J217

Requirement:
^ No trouble codes in the DTC memory, read DTC memory.

Adaptation for driving forward
- Read Measured Value Block display group 010, engine at idle





Display on VAS 5051
^ Check whether transmission fluid temperature in display field 3 is higher than 60°C. A short test drive may be necessary to reach this temperature.
^ Drive forward briefly and then brake to a stop again.
^ Check display in display field 2.
^ Display must from change "ADP. is running" to "ADP. O.K."
If the display does not come up as described
- Repeat start from stop and braking procedure until "ADP. O.K." is displayed.
If the specified value "ADP. O.K." is not obtained
^ Read DTC memory and correct malfunction. Adaptation must be performed again afterward.
^ Perform adaptation for driving in reverse.

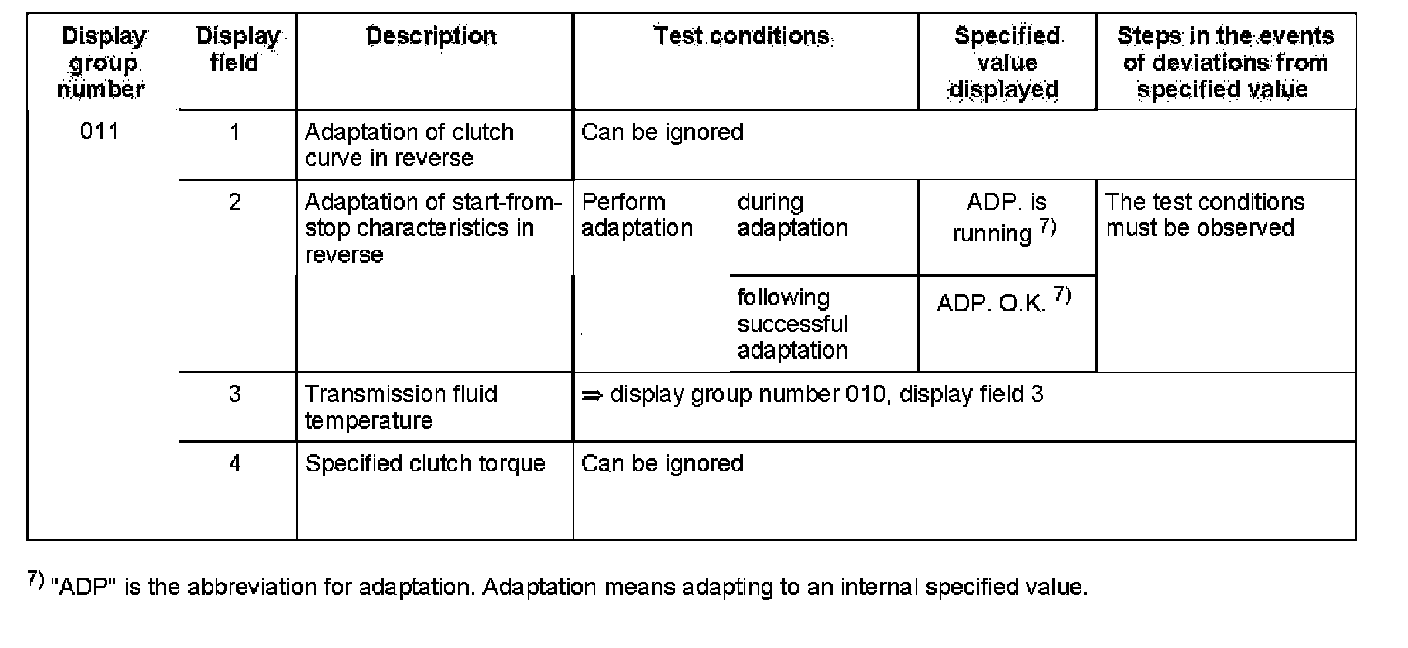

Adaptation for driving in reverse:
- Read Measured Value Block display group 011, engine at idle





Display on VAS 5051
^ Drive backward (in reverse) briefly and then brake to a stop again.
^ Check display in display field 2.
^ Display must from change "ADP. is running" to "ADP. O.K."
If the display does not come up as described
- Repeat start from stop and braking procedure until "ADP. O.K." is displayed.
If the specified value "ADP. O.K." is not obtained
- Read DTC memory and correct malfunction. Adaptation must be performed again afterward.
