Attachment Bulletin # 190401
Group: 19Number: 04-01
Date: Sept. 10, 2004
Subject:
Map Controlled Engine Cooling Thermostat, Servicing
Model(s):
A4 1.8T (Eng. Code AMB) 2002 > 2005
Cabriolet 1.8T (Eng. Code AMB) 2003 > 2005
Description

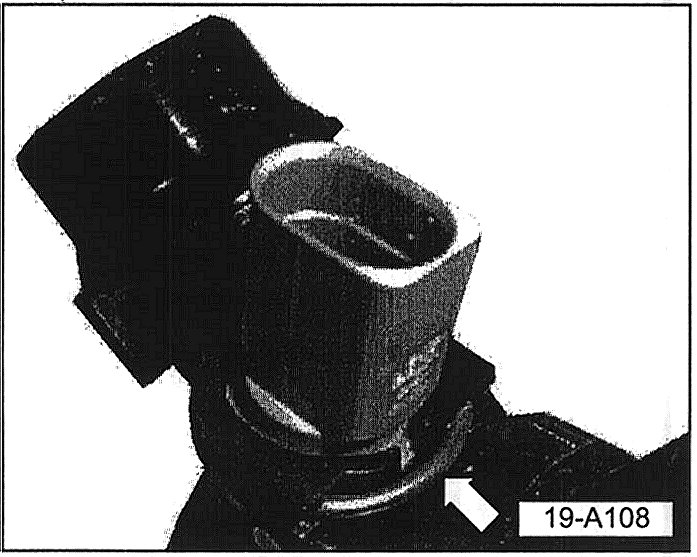

The electrical connector for the Map Controlled Engine Cooling Thermostat -F265- is installed in the Coolant Thermostat Housing using a fastening clip -arrow-.
Service
Only electrical diagnosis can be performed on the Map Controlled Engine Cooling Thermostat -F265-.
^ Removal of clip or connector is not necessary or required.
^ Connector is not a serviceable part.
^ Clip must never be removed.
Note:
Electrical connector and thermostat housing can not be separated. Removing fastening clip will damage the electrical connector and/or the thermostat housing.
CAUTION!
If necessary, the Map Controlled Engine Cooling Thermostat -F265- and thermostat housing must be replaced as an assembly.
