Display Group 007
Display Group 007

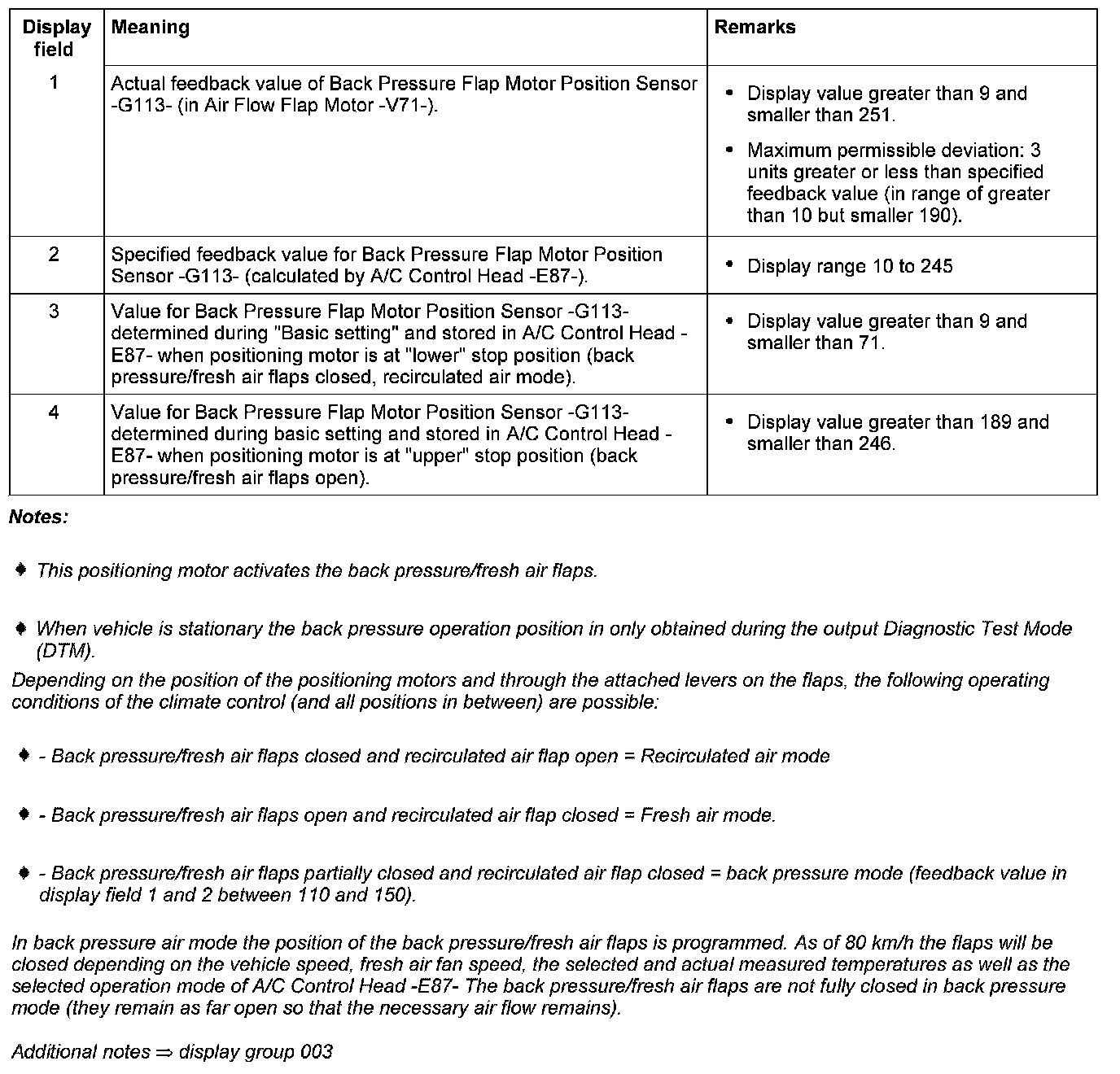

Display Group 007:
Air Flow Flap Motor -V71-
Display Field 1 - 4:
