Display Group 006
Display Group 006

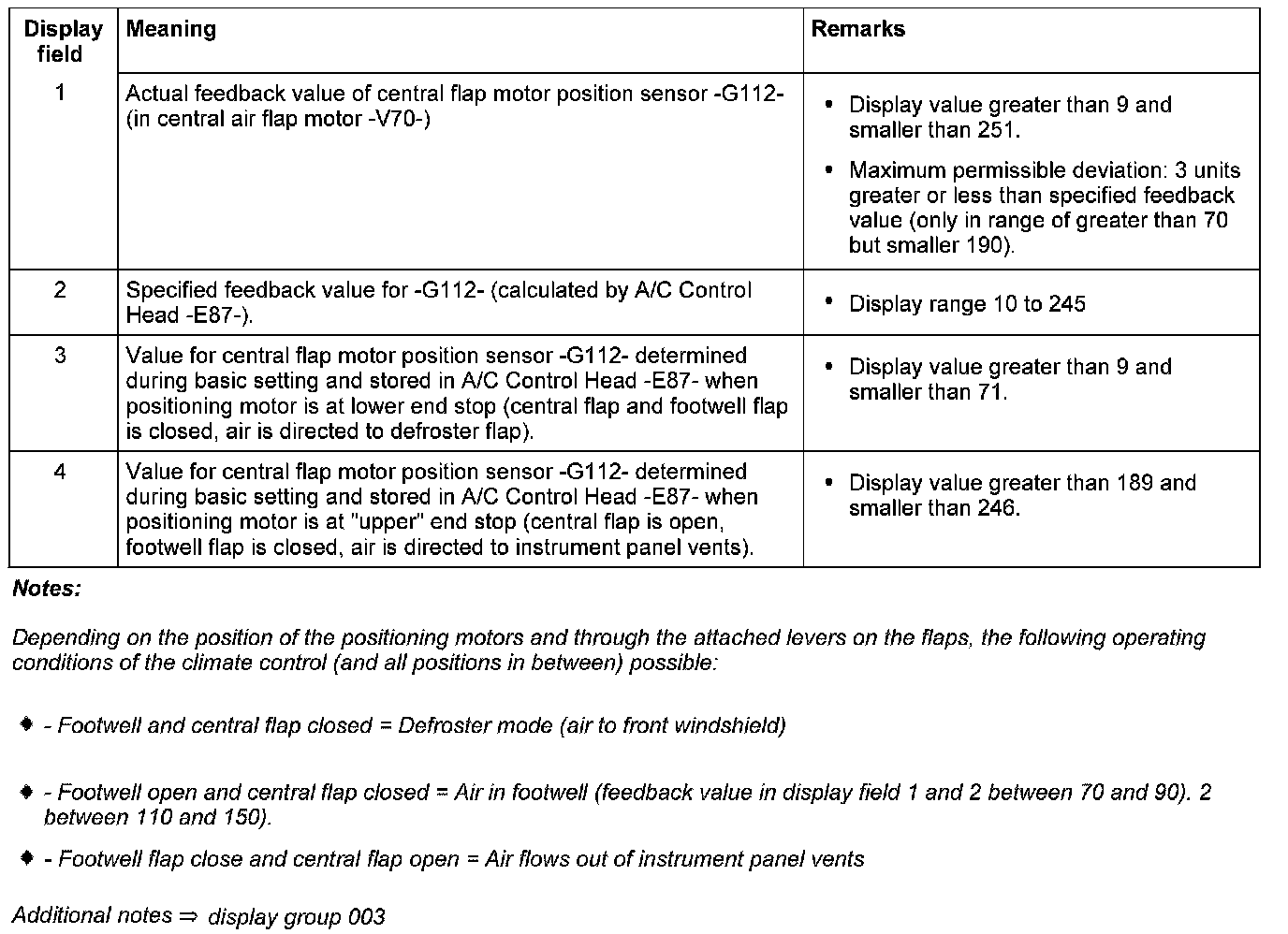

Display Group 006:
Central Air Flap Motor -V70-
Display Field 1 - 4:
