Display Group 003
Display Group 003

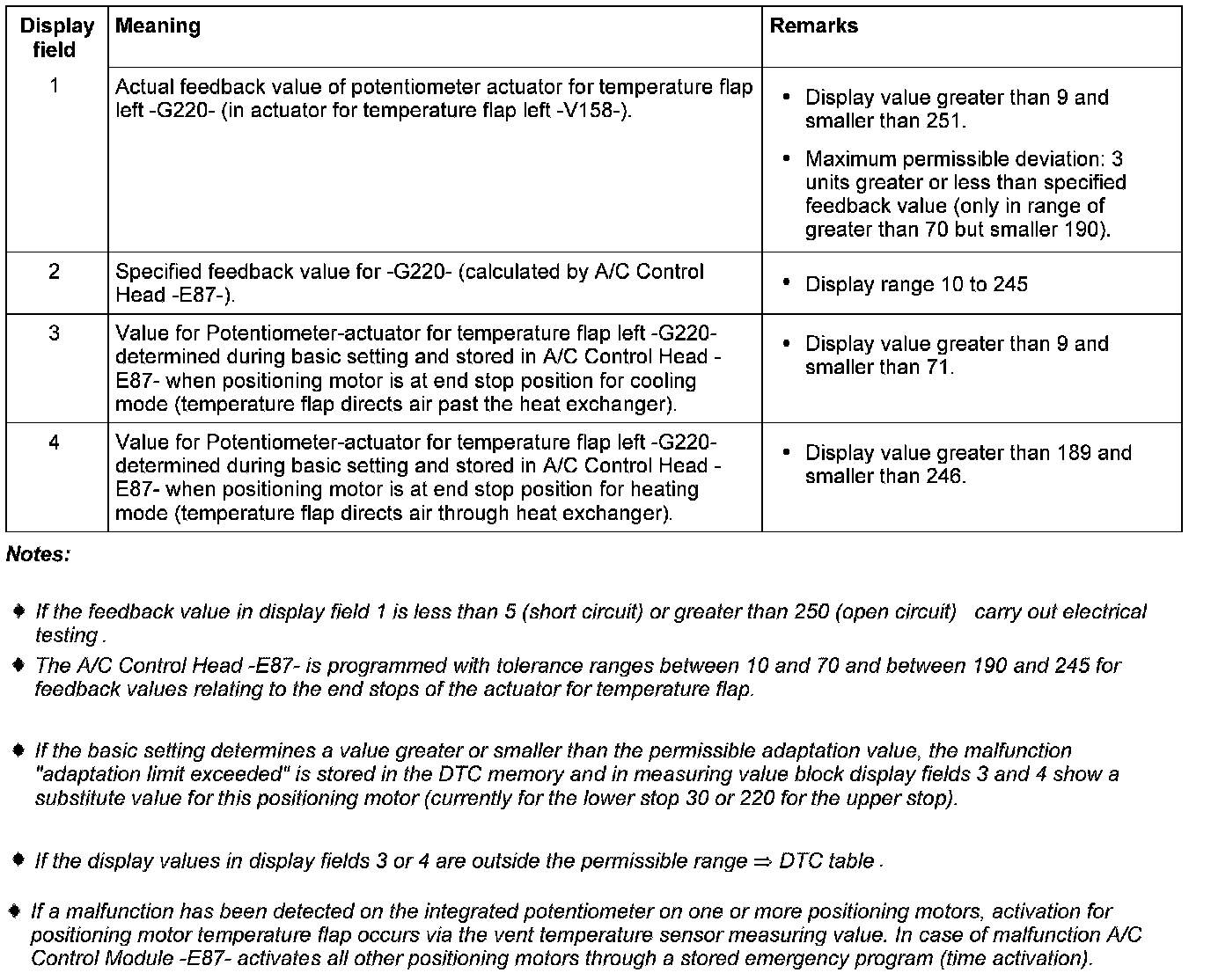

Display Group 003:
Actuator for temperature flap left -V158-
Display Field 1 - 4:
