Evaporator Vent Temperature Sensor -G263- Remove & Install




Evaporator Vent Temperature Sensor -G263-, Removing And Installing

Removing
- Remove glove compartment:

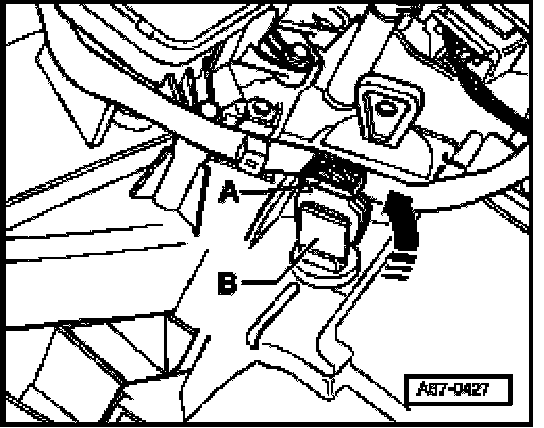

- Disconnect connector -A-.
- Turn sensor -B- 90 degrees (1/4 turn) and pull out of air conditioning unit.

Installing
Installation is the reverse of removal.
