Pilot Needle Bearing, Extracting and Driving In Crankshaft

Pilot needle bearing, extracting and driving in crankshaft
Special tools and repair equipment required





^ Special tool VW 207 C





^ Special tool Kukko 21/1 (1)and Kukko 22/1 (4)
^ Depth gauge

Notes:
^ A pilot needle bearing must be installed in crankshaft on vehicles with manual transmission. Install pilot needle bearing if necessary.
^ On vehicles with automatic transmission, no pilot needle bearing must be installed in crankshaft. Remove pilot needle bearing if necessary.

Removing

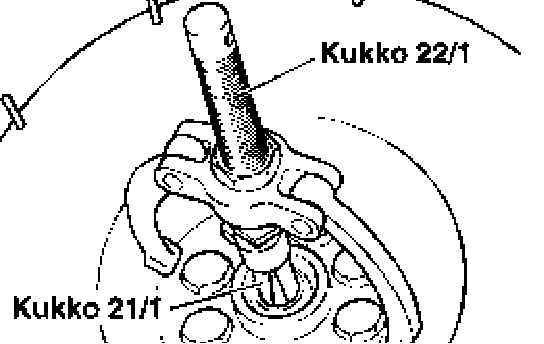

^ Pull out pilot needle bearing using Kukko 21/1 and Kukko 22/1.

Installing

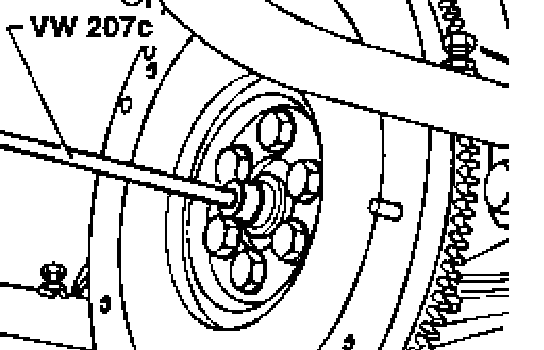

^ Drive in with drift 207c or centering mandrel 3176.
^ Lettering on pilot needle bearing must be visible when installed.

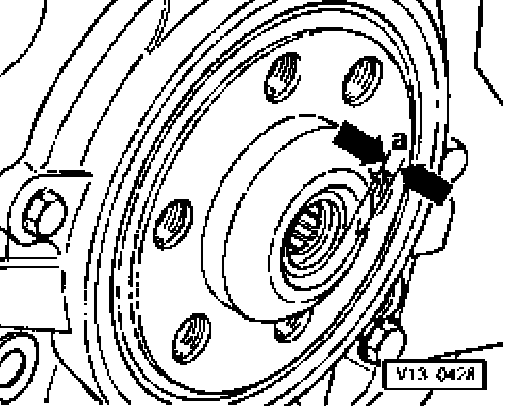

Installation depth for pilot needle bearing
^ Distance a = 1.5mm
