P1793
P1793

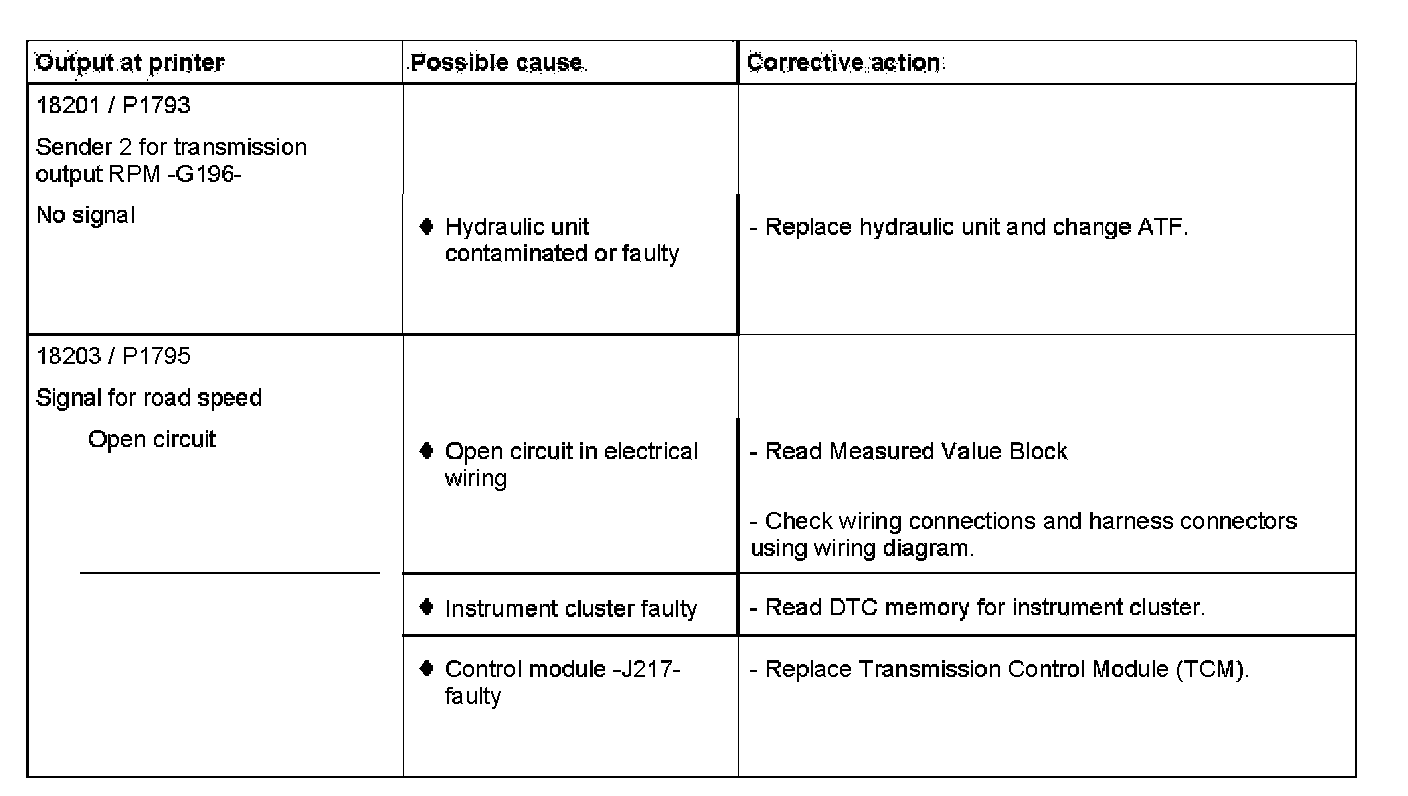

P1793 Sender 2 for transmission output RPM -G196-; No signal
Note on DTC 18201 / P1793:
^
If DTC 181811 P1773 is displayed in addition, the sensor wheel maybe faulty and the transmission must be replaced.
