01V, 5 Speed A/T

DTC 17114 / P07030

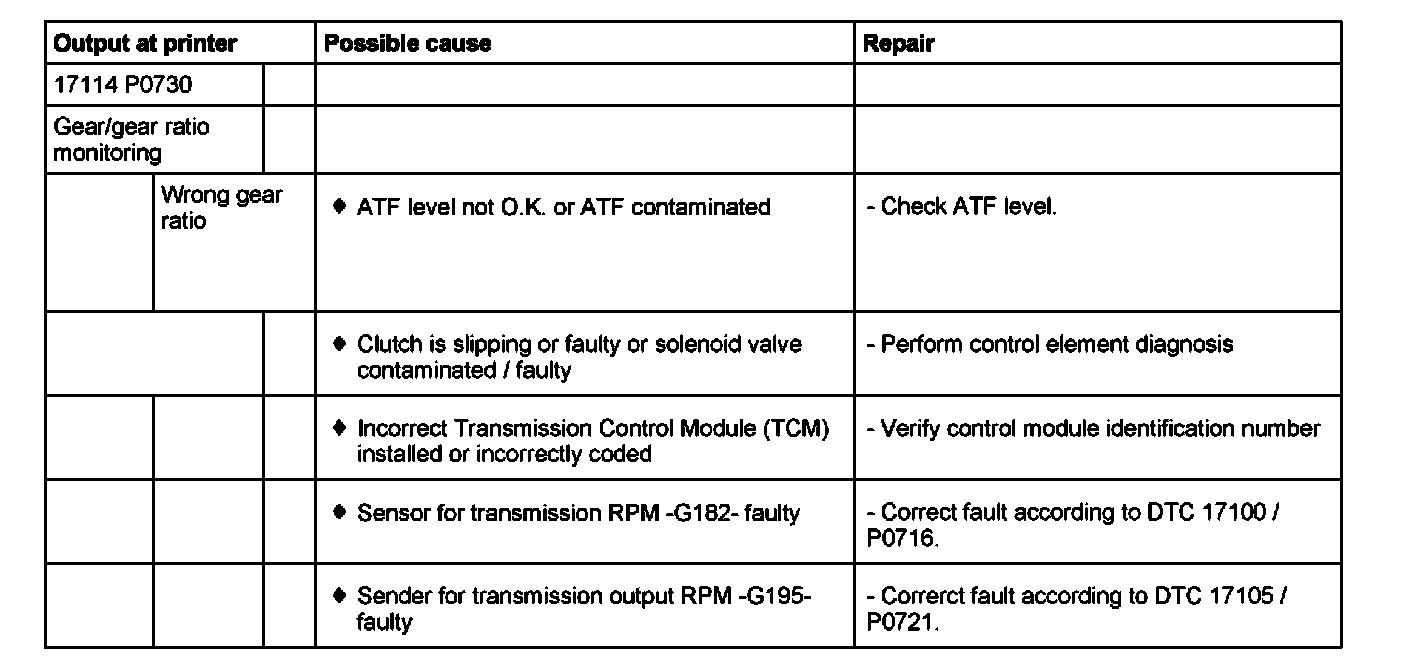

Notes on DTC 17114 / P0730:
^ The gear monitoring function of the Transmission Control Module checks the gear ratios by comparing transmission input and transmission output RPM, taking into consideration the gear currently engaged. This DTC is displayed when a detected, unacceptable gear ratio (implausibility) is found.
^ When testing full braking RPM, transmission input RPM in the converter with the vehicle stationary and gear engaged must be almost zero. If this is not the case, this DTC is also displayed because clutch damage may be present (Read Measured Value Block display group number 00 1).
