Tightening Specifications

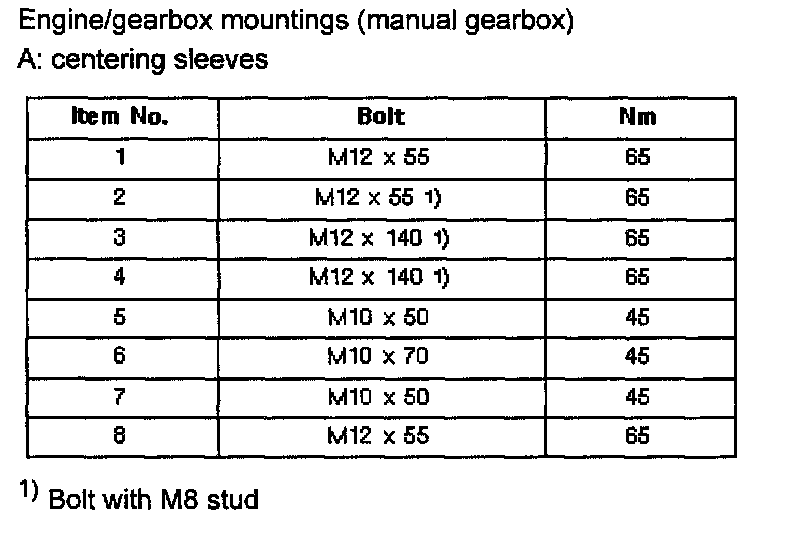

Engine/Gearbox Mounting Torques:

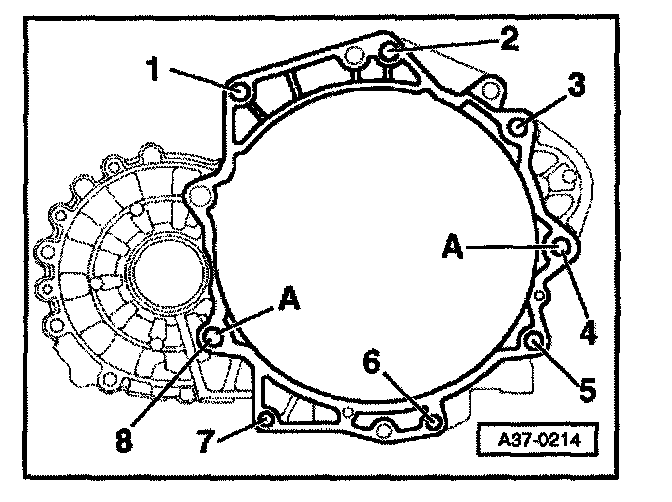

1.8L (TT) Engine/Gearbox Mounting Position:

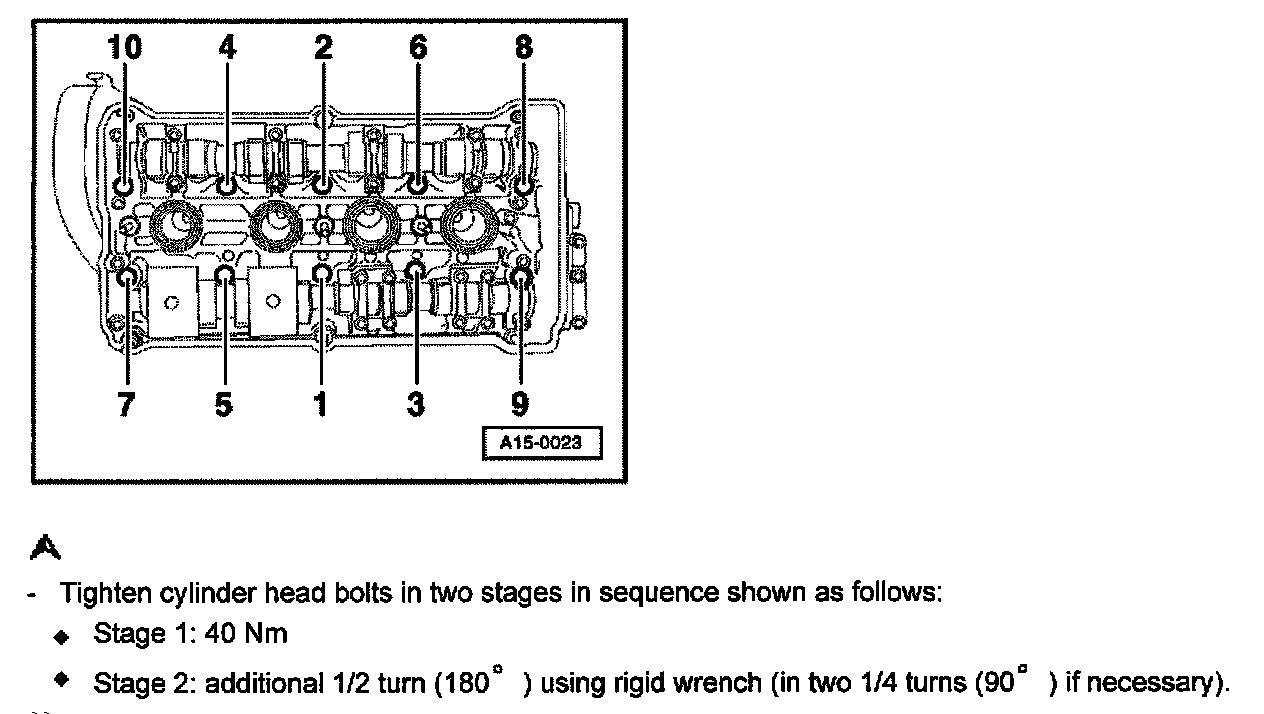

1.8L (TT) Cyl. Head Sequence/Torque:
