Over-Center Spring, Removing and Installing

Over-center spring, removing and installing
Special tools and equipment

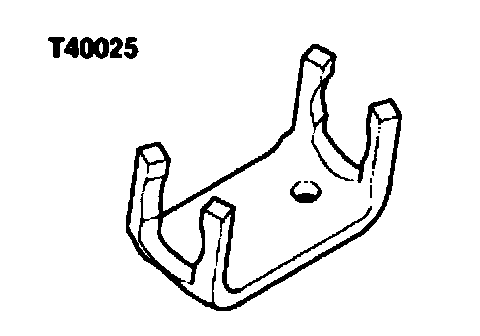

^ T40025 Mounting clip

Removing
- Remove driver's storage compartment:

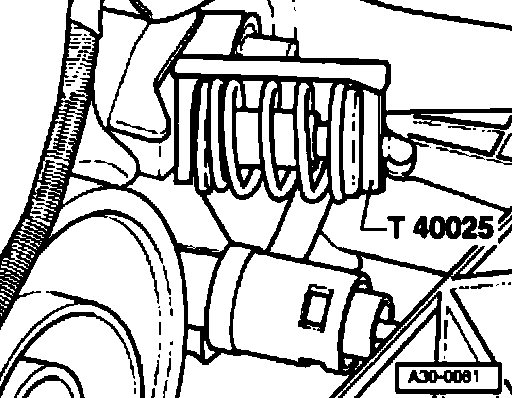

- Tension over-center spring with clutch pedal and press on mounting clip T40025.
- Move clutch pedal to home position and pull over-center spring together with mounting clip T40025 downward to remove.

Installing
- Pull clutch pedal into passenger compartment.
Installation position of over-center spring:
^ Black side of over-center spring faces clutch pedal.

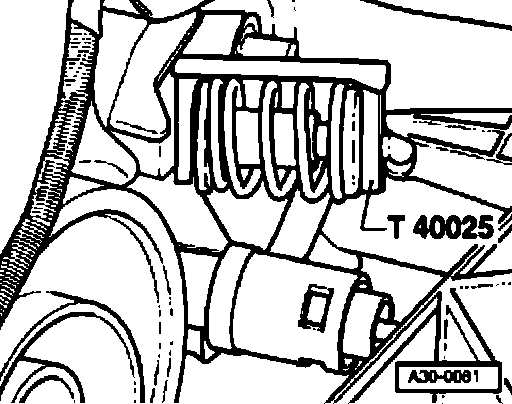

- Install over-center spring with mounting clip T40025, press clutch pedal and remove mounting clip.
