Sensor For Transmission RPM -G182-, Removing and Installing

Sensor for transmission RPM -G182-, removing and installing
Removing
- Removing valve body.

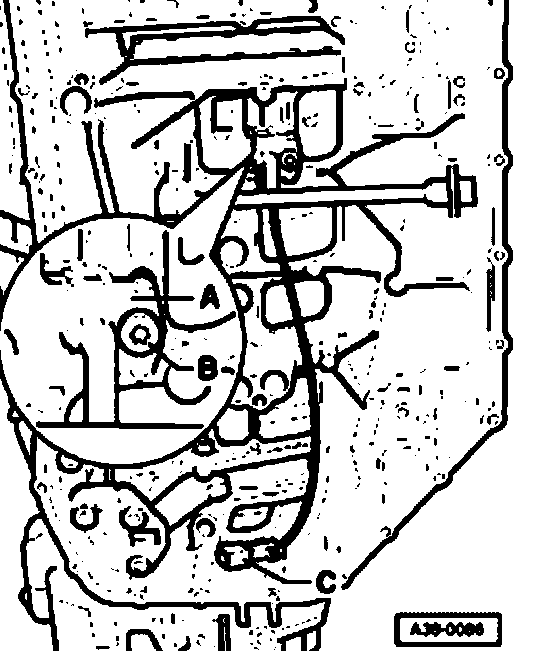

- Unbolt Sensor for transmission RPM -A- from transmission.

Installing
- Bolt on Sensor for transmission RPM -A- at transmission via bolt -B-. Tightening torque is 9 Nm.
- Route wire with connector -C- according to illustration, so that the wire is not pinched when installing the valve body.
- installing valve body.
- Fill up ATF.
