Shift Indicator - A/T: Locations


Electrical/Electronic components and installed locations





12 - Transmission Range (TR) Selector Lever Display -Y6-

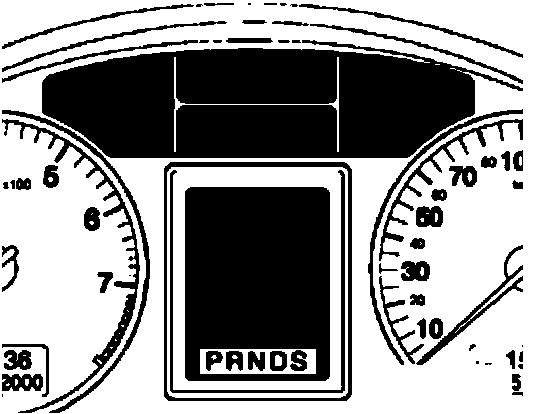

Fig. 14 Transmission Range (TR) Selector Lever Display -Y6-:
