Diagram 34/6 (Tracks 57-70)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

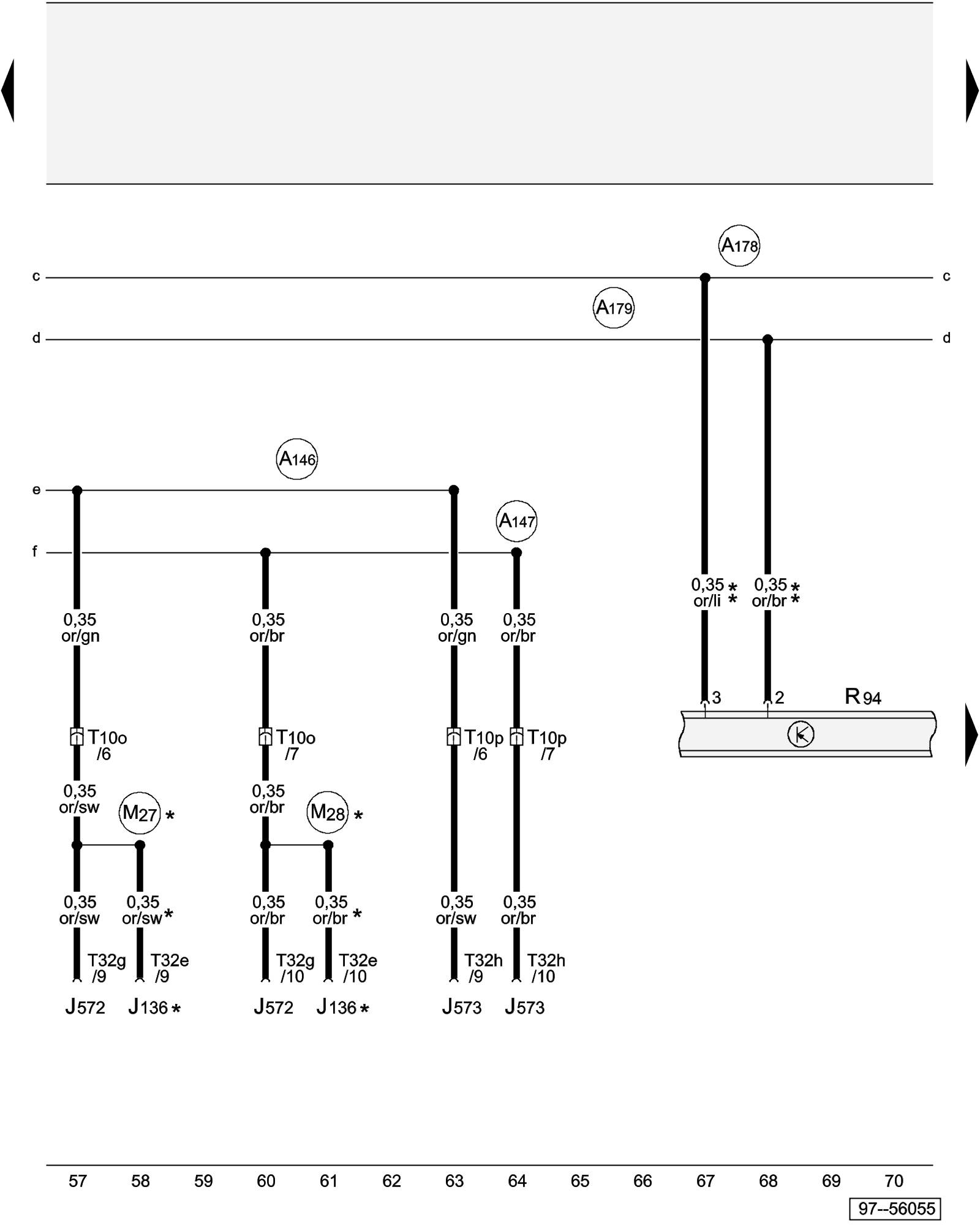

Navigation and Infotainment CAN-Bus Wiring





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J136 - Memory Seat Adjustment Control Module

J572 - Driver's Entry Assistance Control Module

J573 - Front Passenger's Entry Assistance Control Module

R94 - Navigation Interface Navigation System Overview

T10o - 10-Pin Connector, red, connector station seat wiring, driver's seat Connector Station

T10p - 10-Pin Connector, red, connector station seat wiring, front passenger's seat Connector Station

T32e - 32-Pin Connector, on memory seat adjustment control module

T32g - 32-Pin Connector, white, on driver's entry assistance control module

T32h - 32-Pin Connector, white, on front passenger's entry assistance control module

(M27) - CAN-Bus High Connection - Convenience (in driver's seat adjustment wiring harness)

(M28) - CAN-Bus Low Connection - Convenience (in driver's seat adjustment wiring harness)

(A146) - Comfort System CAN-Bus High Connection (in instrument panel wiring harness)

(A147) - Comfort System CAN-Bus Low Connection (in instrument panel wiring harness)

(A178) - Infotainment High-Bus Connection (in instrument panel wiring harness)

(A179) - Infotainment Low-bus Connection (in instrument panel wiring harness)

* - Power Seats (with memory) only

** - Only models with radio/navigation system
