Convertible Top Upholstery - Assembly Overview

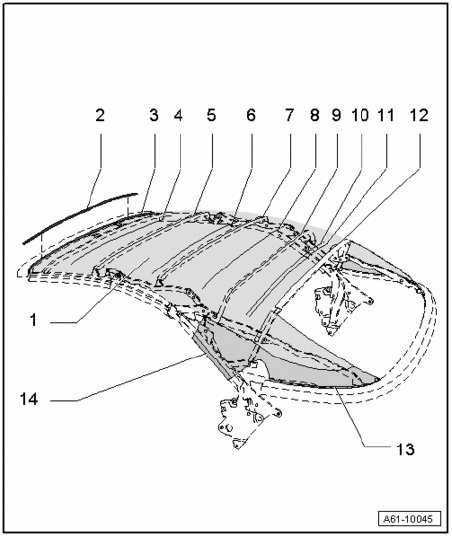

Convertible top upholstery - assembly overview







1 - Convertible top upholstery
2 - Molding
3 - Profile strip
4 - Zip fastener
- Outside
5 - Round molding
6 - Zip fastener
- Outside
7 - Round molding
8 - Zip fastener
- Outside
9 - Round molding
10 - Zipfastener
- Outside
11 - Zip fastener
- Inner
12 - Round molding
13 - Round molding
14 - Adhesive surface
- Double-sided tape can be used several times.
- Use Double-Sided Adhesive Tape 434 019 25 if damaged.
