A4 Cabriolet (8H7) L4-1.8L Turbo (AMB)
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
P Code Charts
>>
P1788
P1788

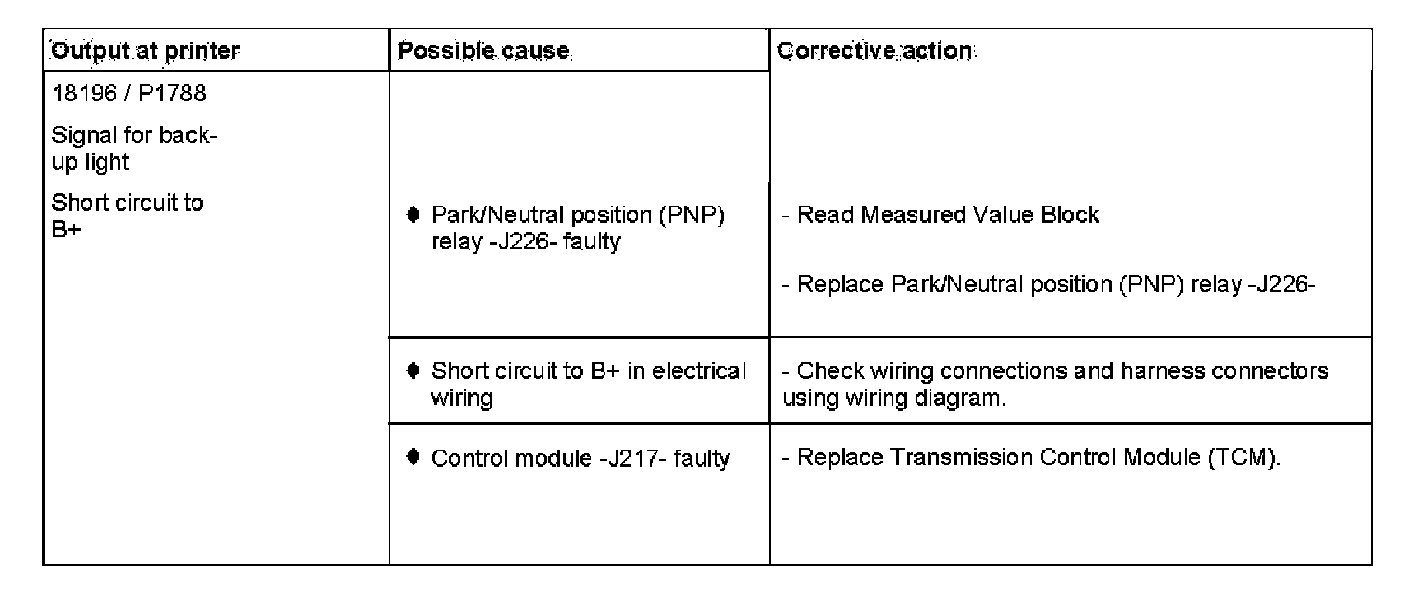

P1788 Signal for back up light; Short circuit to B+
