Accelerator Pedal: Service and Repair

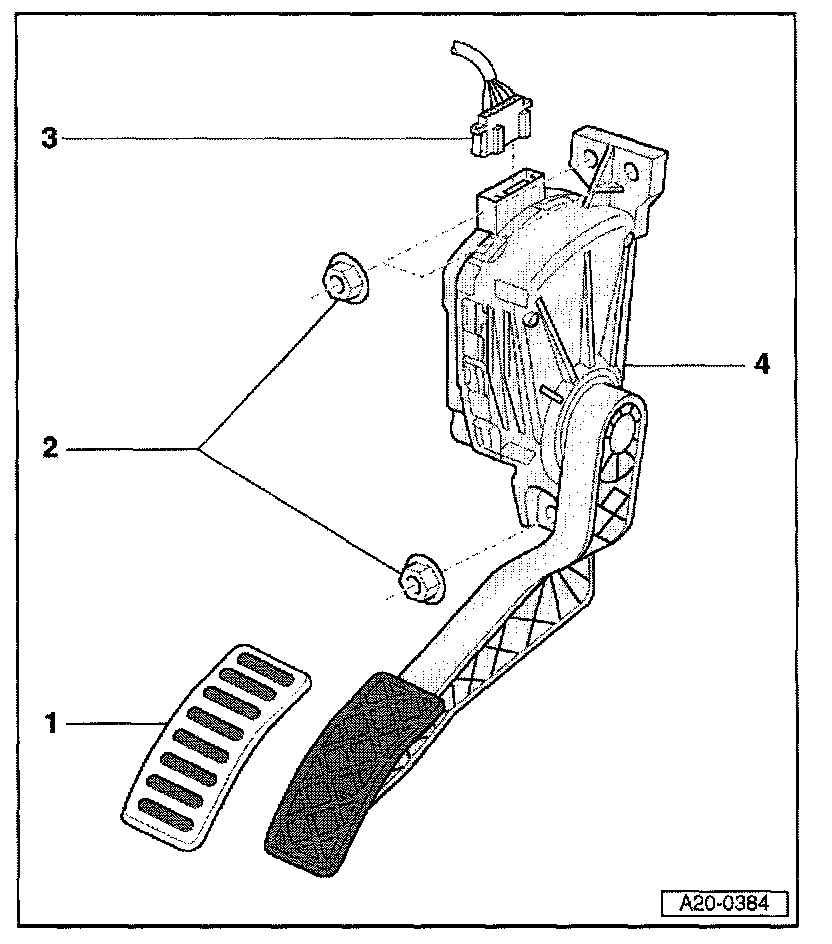

1 - Rubber pedal cover
2 - 10 Nm
3 - 6 - pin harness connector
4 - Accelerator pedal module
- With Throttle Position (TP) sensor - G79 - and sender -2- for accelerator pedal position - G185 -
- Removing and installing.

Removing and installing accelerator pedal module with Throttle Position (TP) sensor - G79 - and sender -2 - for accelerator pedal position - G185 -

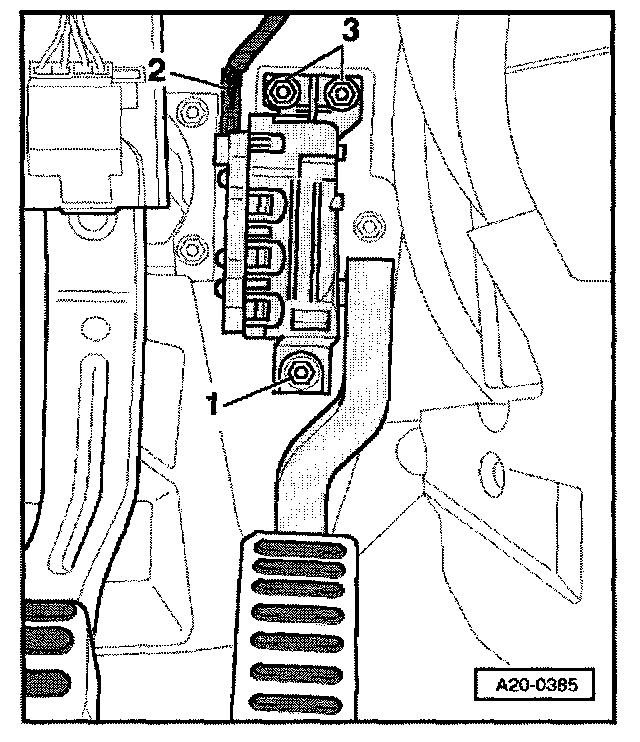

- Remove driver - side storage compartment.







- Disconnect 6 - pin harness connector -2-.
- Remove nuts -1- and -3-.
- Remove accelerator pedal module.

Installation is the reverse of removal.

Tightening torque

Component Nm
Accelerator pedal module at pedal mount 10
