Foot Rest: Service and Repair

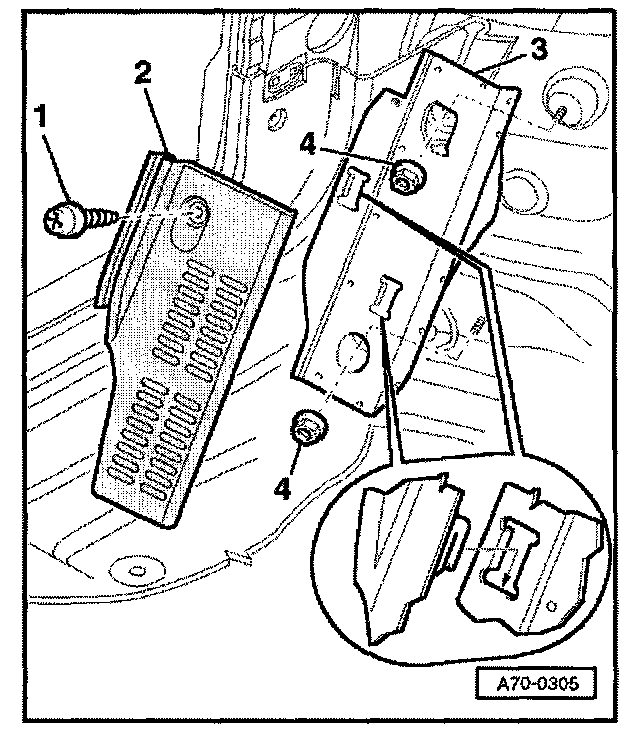

FOOT REST AND FOOT REST SUPPORT BRACKET, REPLACING





Removing Foot Rest
- Remove lower A - pillar trim.
- Remove screw - 1 -.
Tightening torque: 1.5 Nm (13 in. lb)
- Press foot rest - 2 - upward and remove.

Removing Foot Rest Support Bracket
- Remove foot rest.
- Fold back floor covering around foot rest support bracket.
- Remove nut - 4 - (2x).
Tightening torque: 4 Nm (35 in. lb)
- Remove foot rest support bracket - 3 -.
