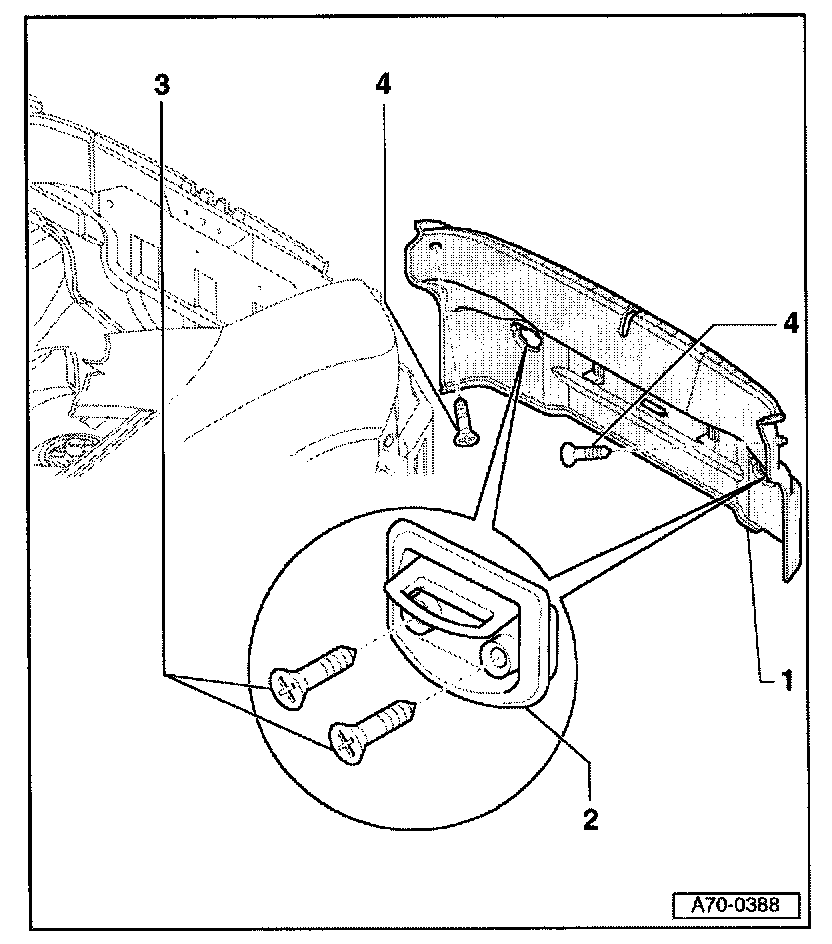

Rear Cross Panel Trim, Removing and Installing

1 - Rear cross panel trim
- Remove screws - 3 - (4x) from fastening rings - 2 - on left and right.
- Remove screws - 4 - (2x).
- Unclip rear cross panel trim - 1 - upward.
- After installing, ensure seal is installed correctly
2 - Fastening rings
3 - Screws (4x)
- Tightening torque: 4.5 Nm (40 in. lb)
4 - Screws (2x)
- Tightening torque: 2 Nm (18 in. lb)
