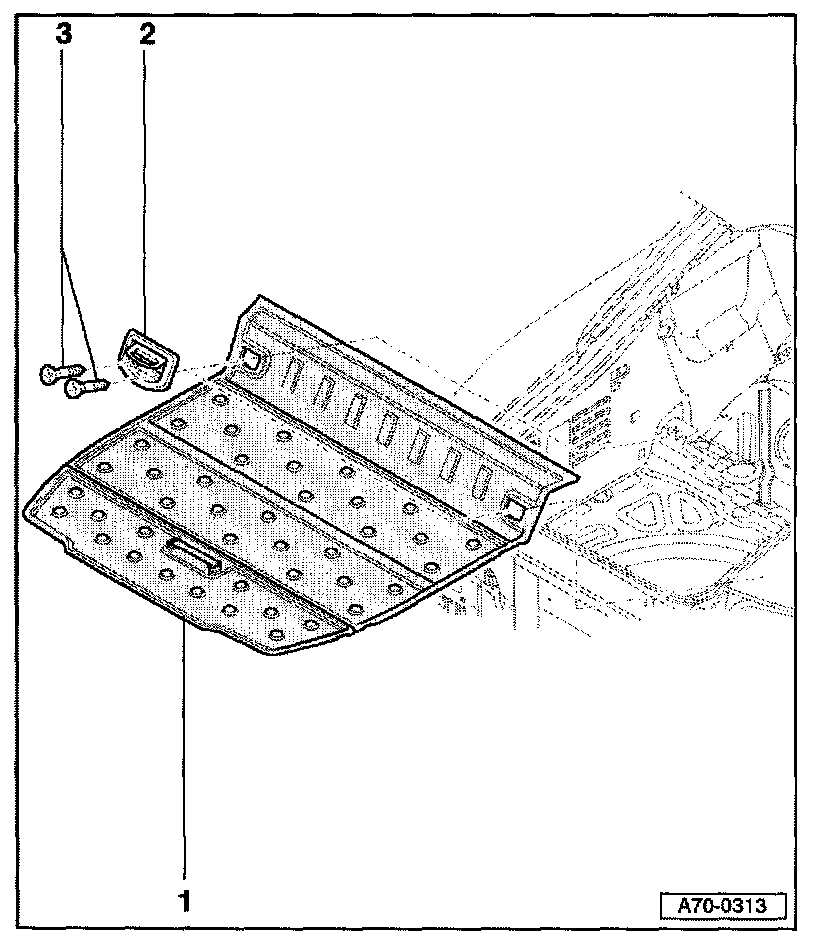

Luggage Compartment Floor Lining, Removing

1 - Luggage compartment floor lining
- Remove screws - 3 - (4x) from fastening rings - 2 - on left and right.
- Fold down rear - seat backrests.
- Remove luggage compartment floor lining - 1 - forward.
2 - Fastening rings
3 - Screws (4x)
- Tightening torque: 4.5 Nm (40 in. lb)
