Engine Control System

Diagnostic Trouble Code Tables

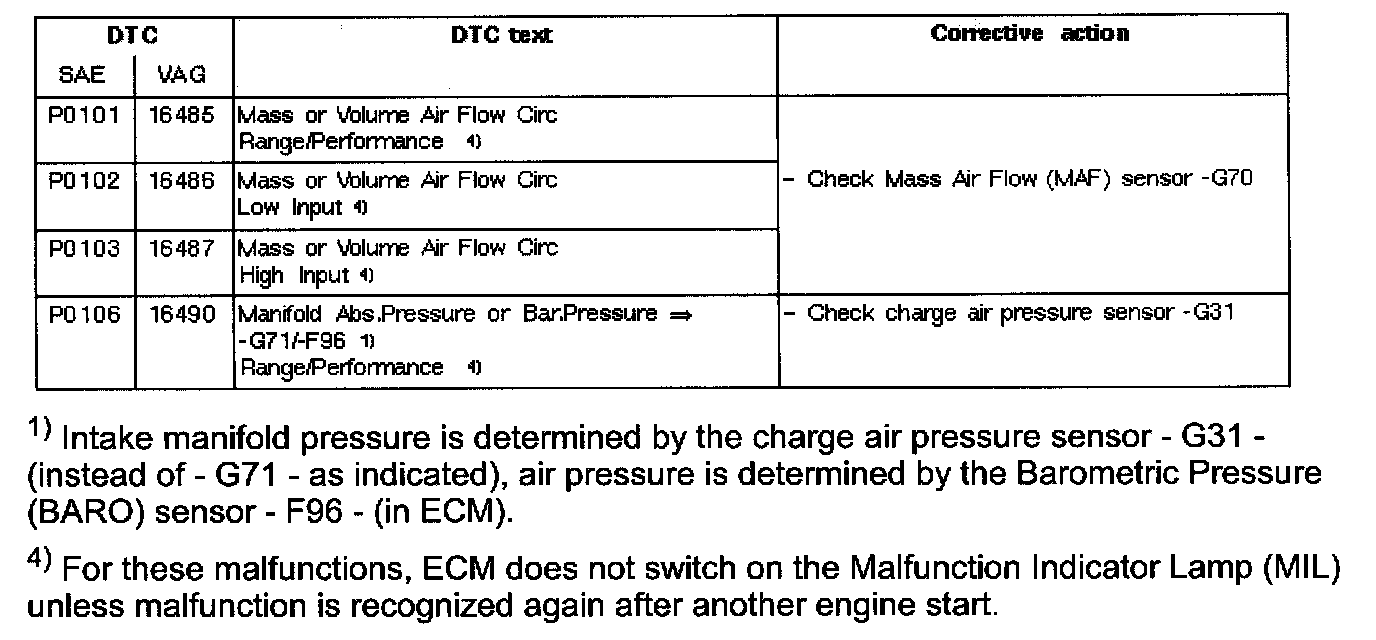

DTC P0101 - P0106:

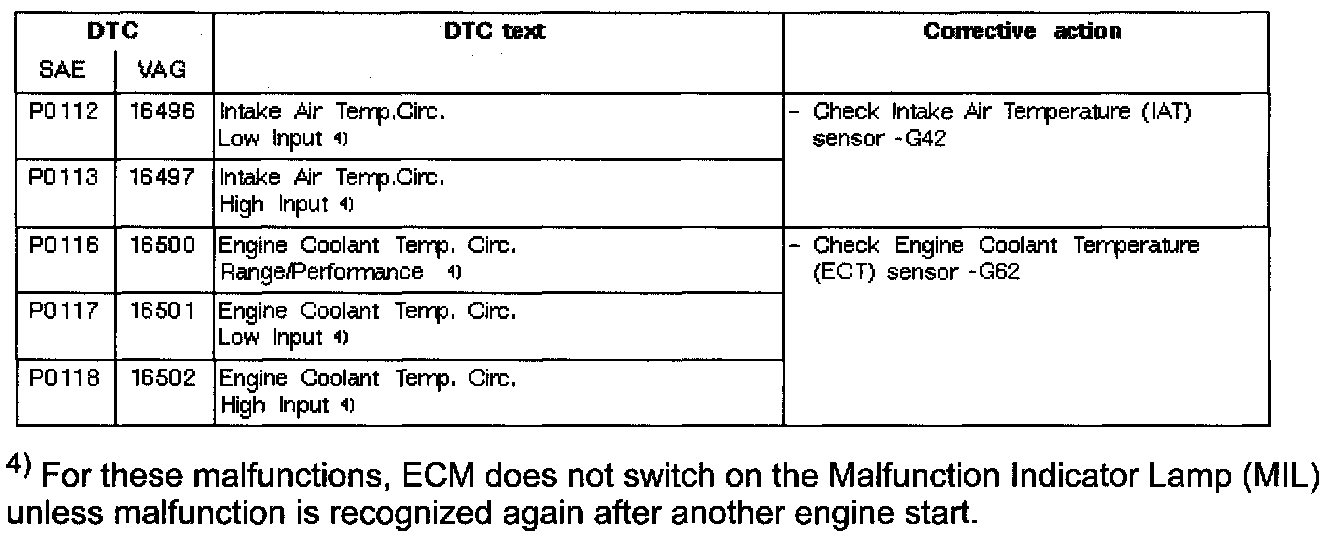

DTC P0112 - P0118:

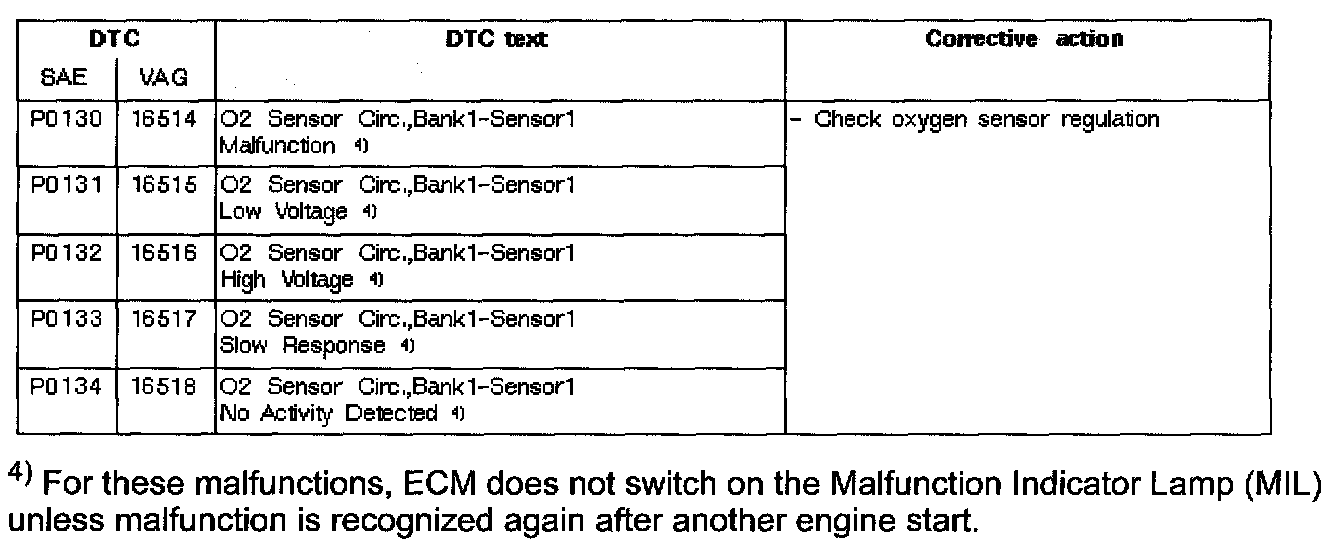

DTC P0130 - P0134:

DTC P0136 - P0140:

DTC P0236 - P0238:

DTC P0300 - P0322:

NOTE: For malfunctions potentially caused by fuel shortage (e.g. combustion misfires) the DTC "P1250, Fuel Level Too Low" is also indicated. This means that combustion misfires could not be recognized on account of a technical malfunction, but rather because there is/was too little fuel in fuel tank.

DTC P0327 - P0422:

DTC P0441 - P0563:

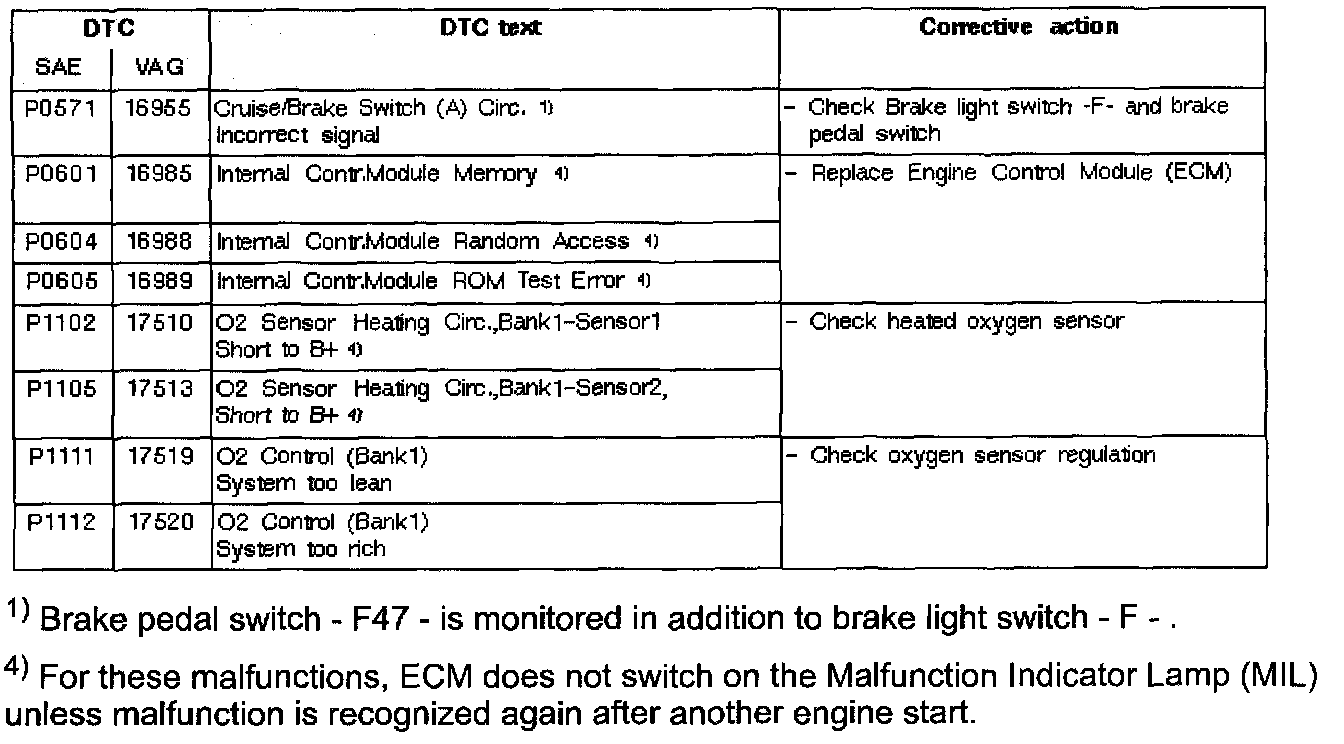

DTC P0571 - P1112:

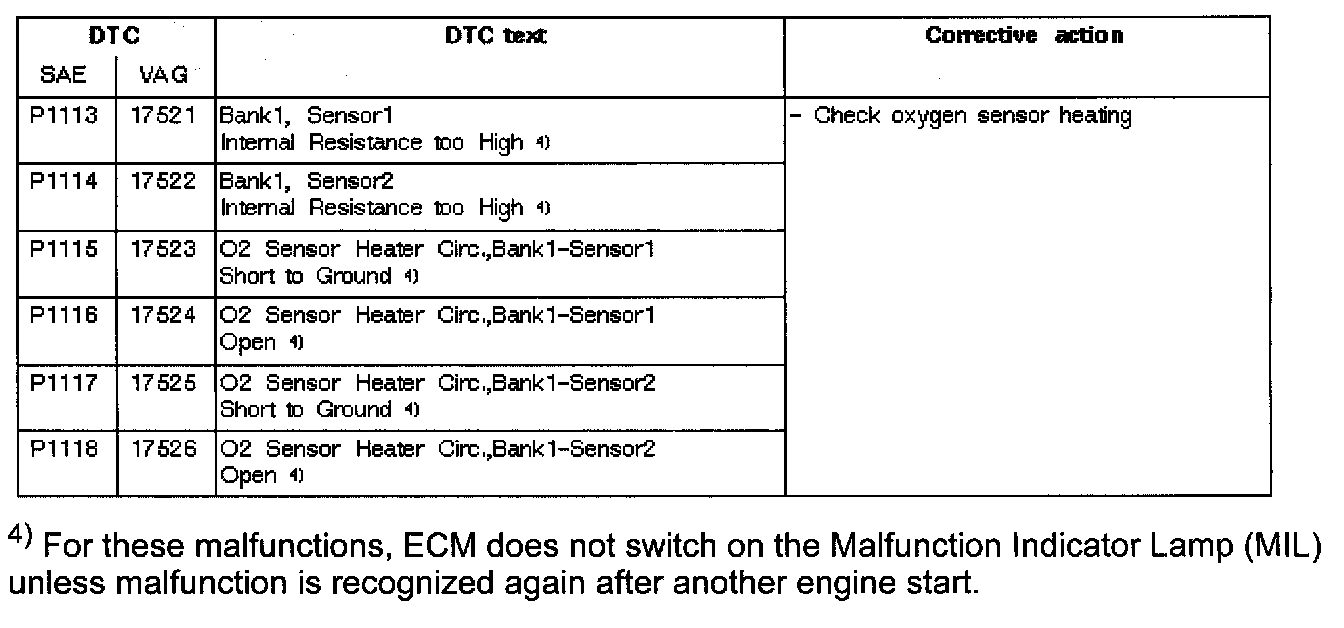

DTC P1113 - P1118:

DTC P1127 - P1128:

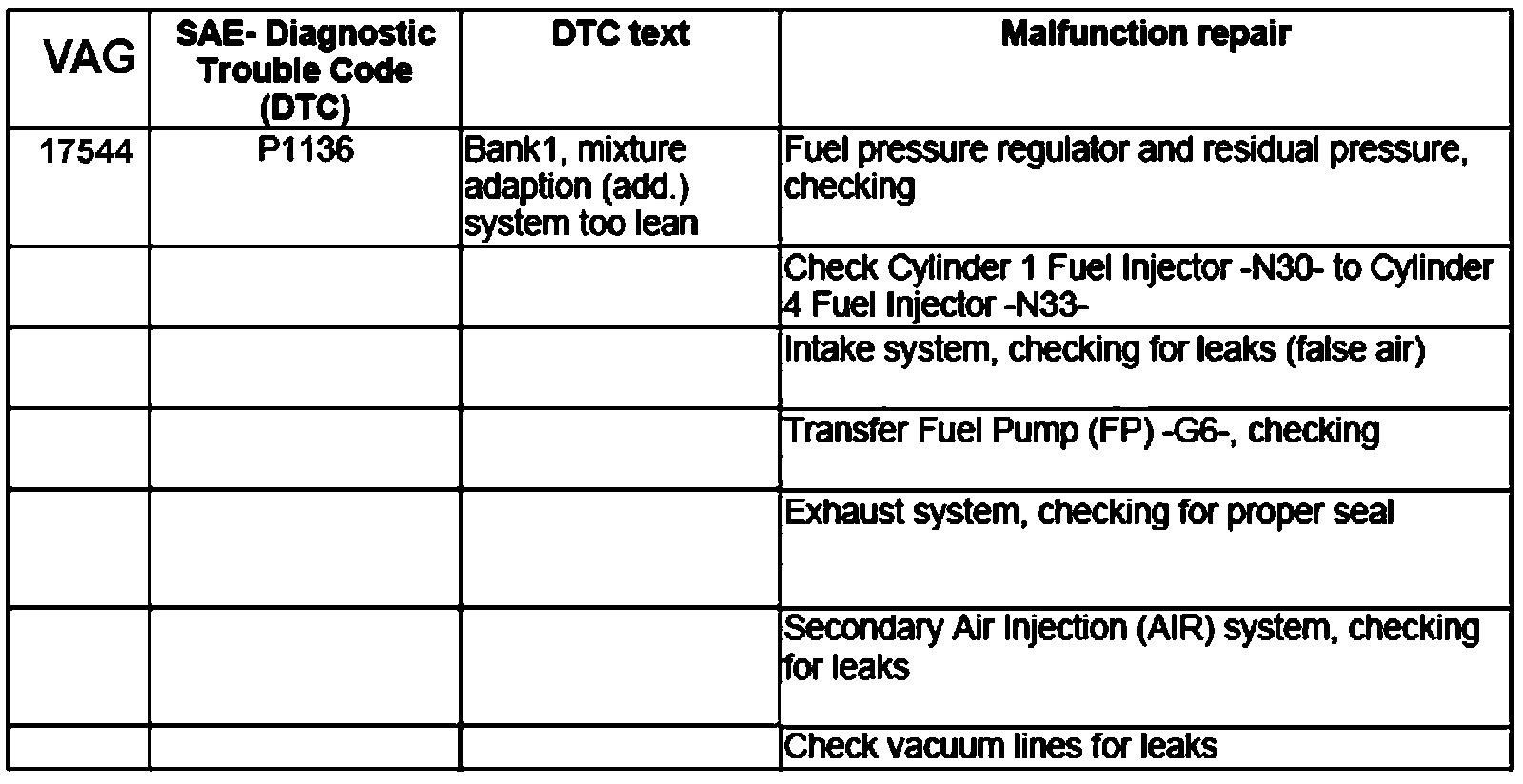

DTC P1136:

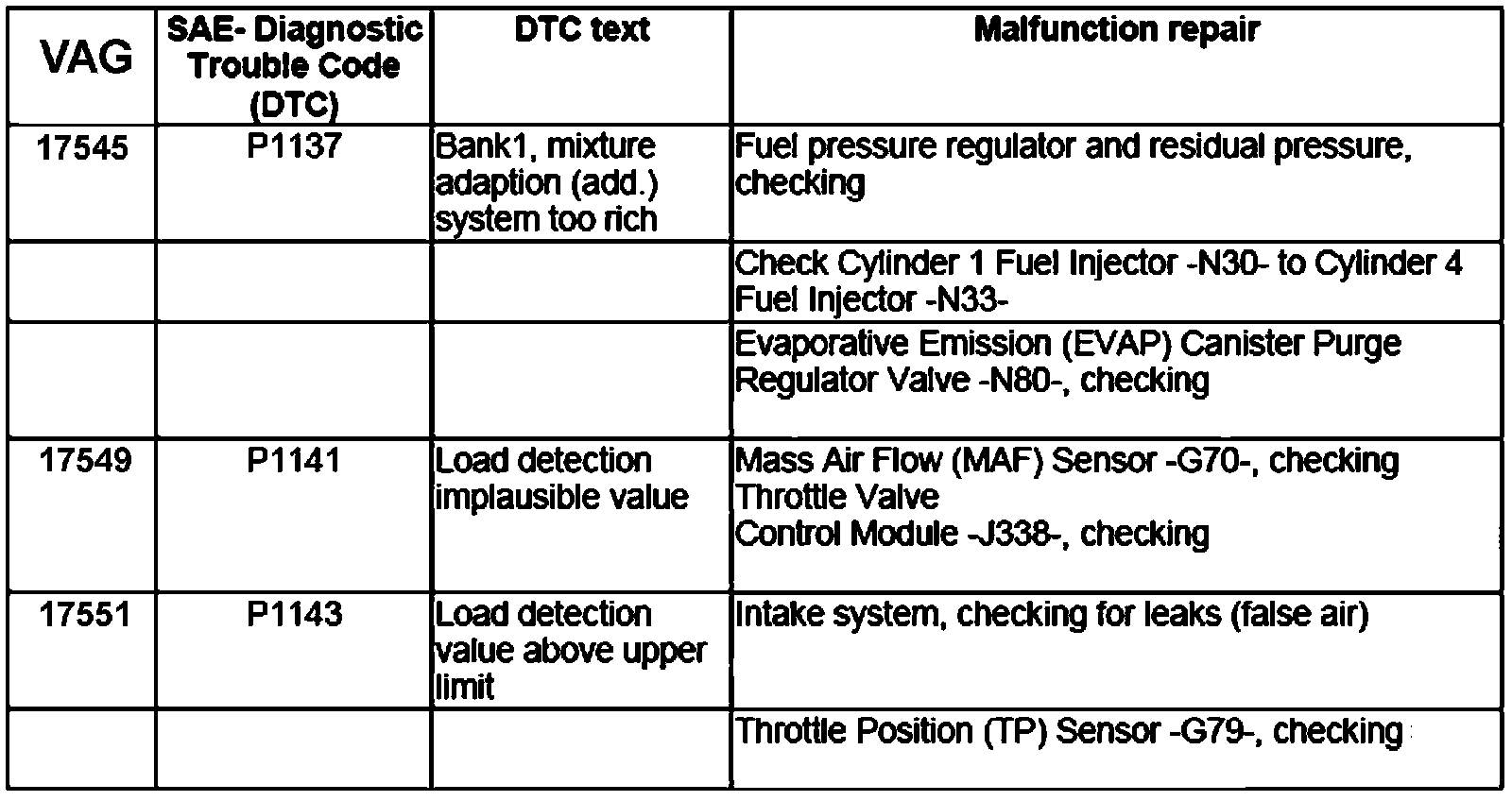

DTC P1137 - 1143:

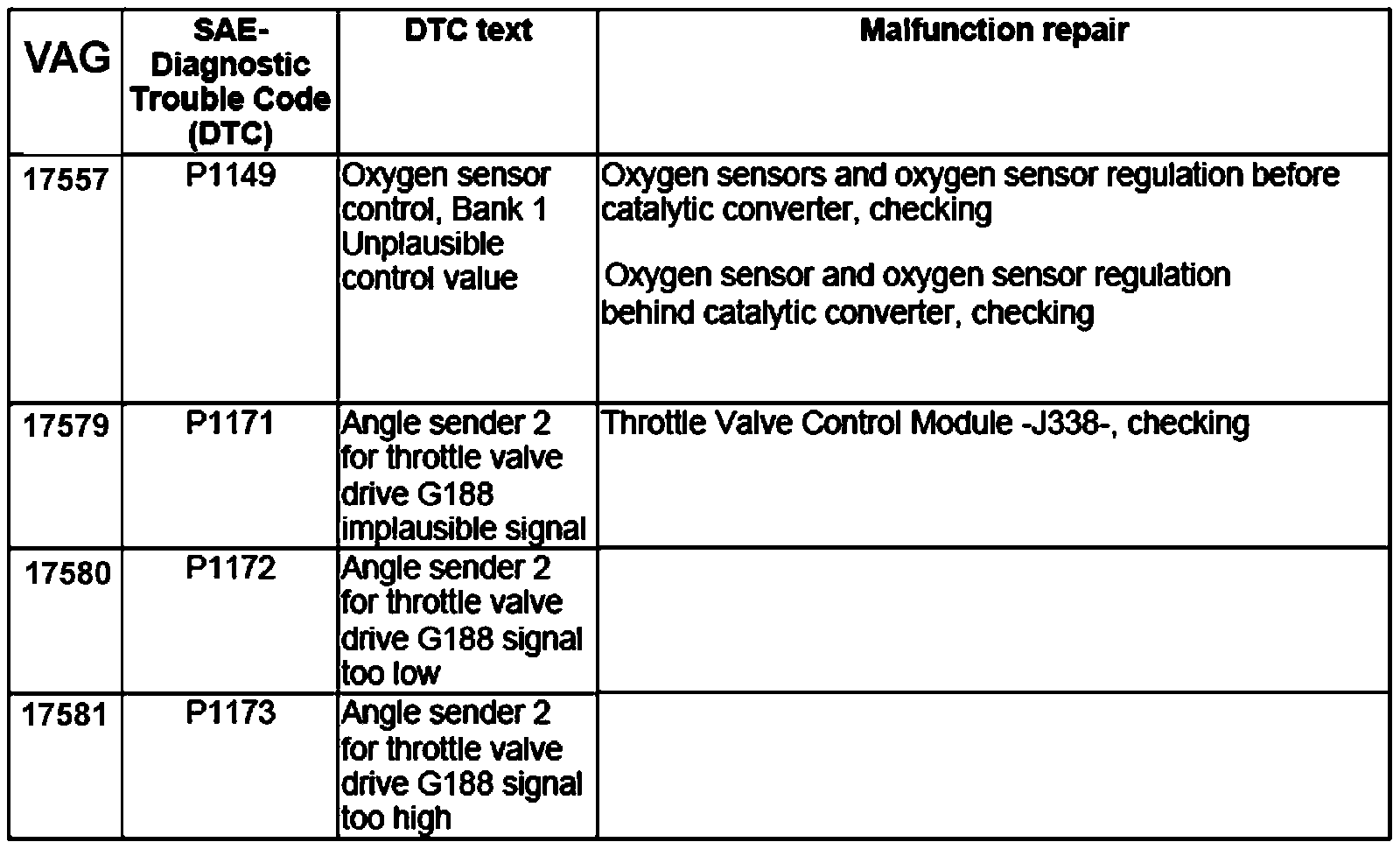

P1149 - P1173:

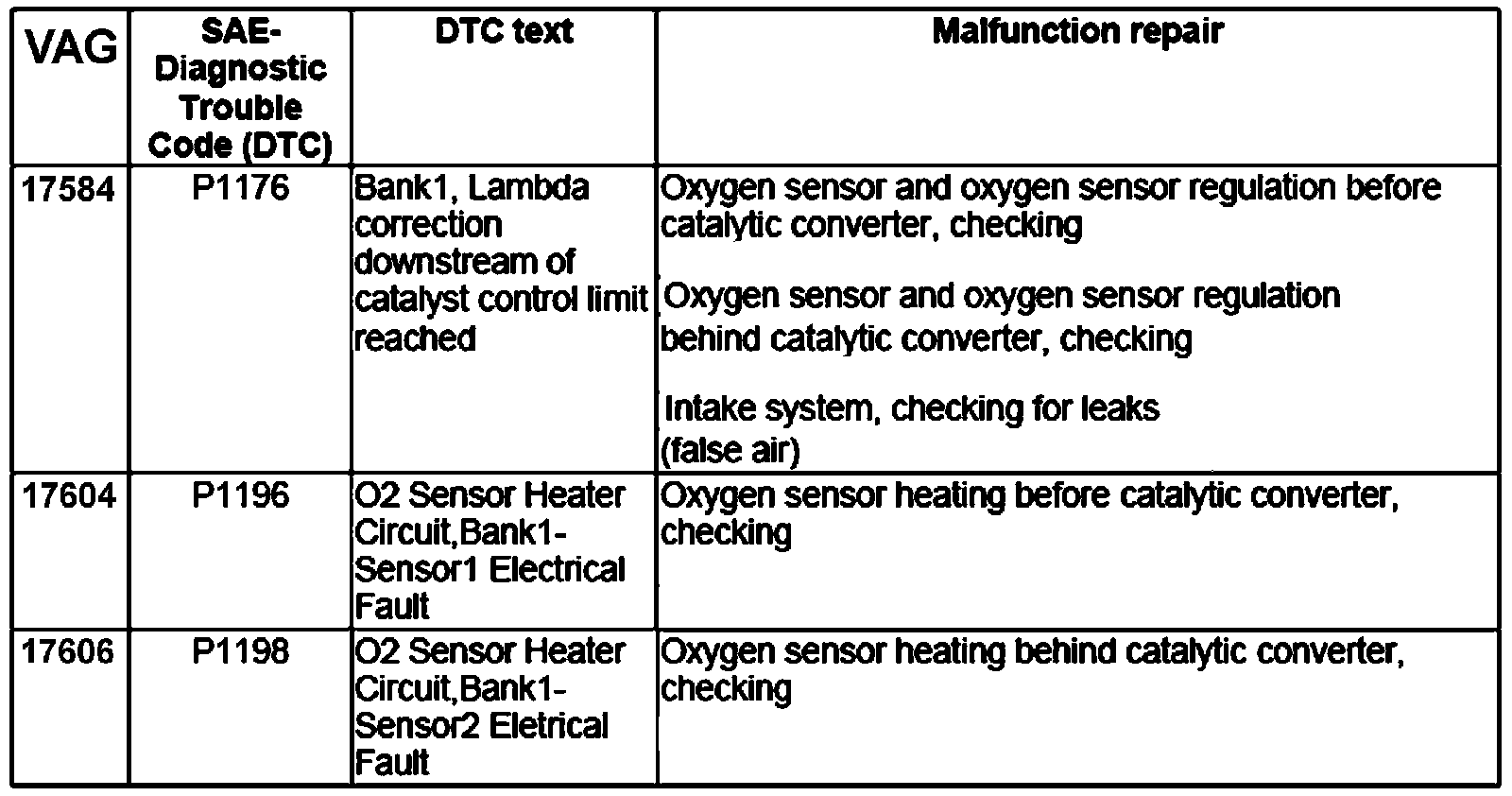

P1176 - P1198:

DTC P1203 - P1228:

DTC P1237 - P1240:

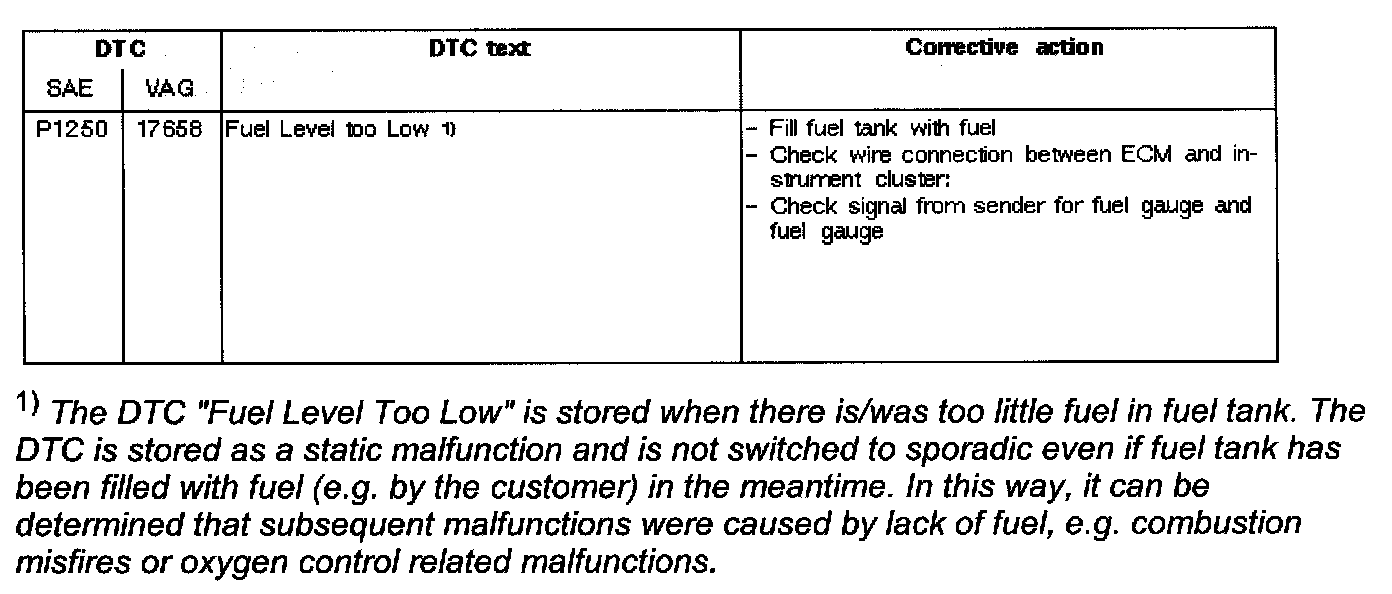

DTC P1250:

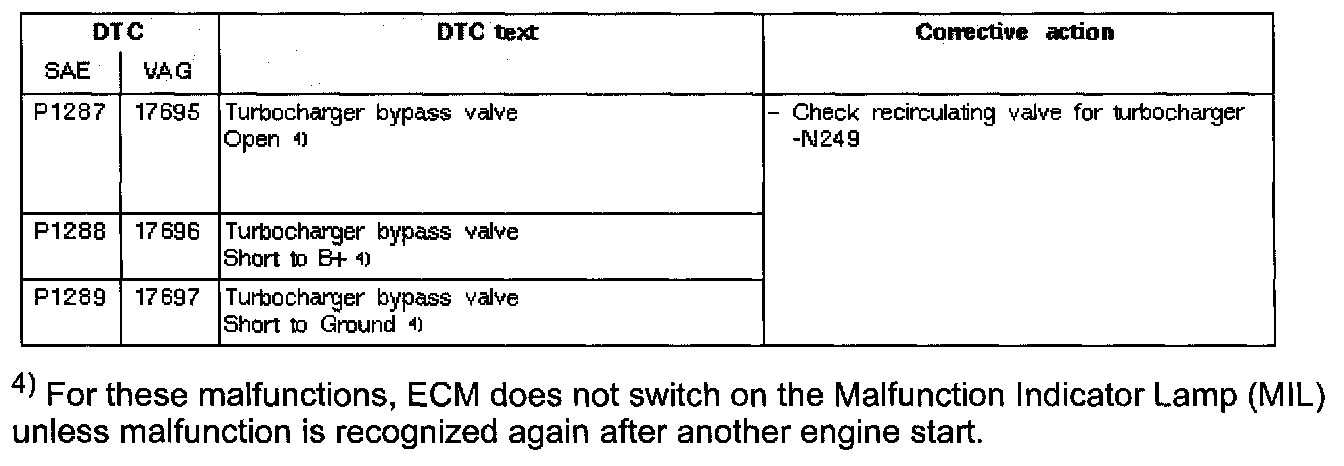

DTC P1287 - P1289:

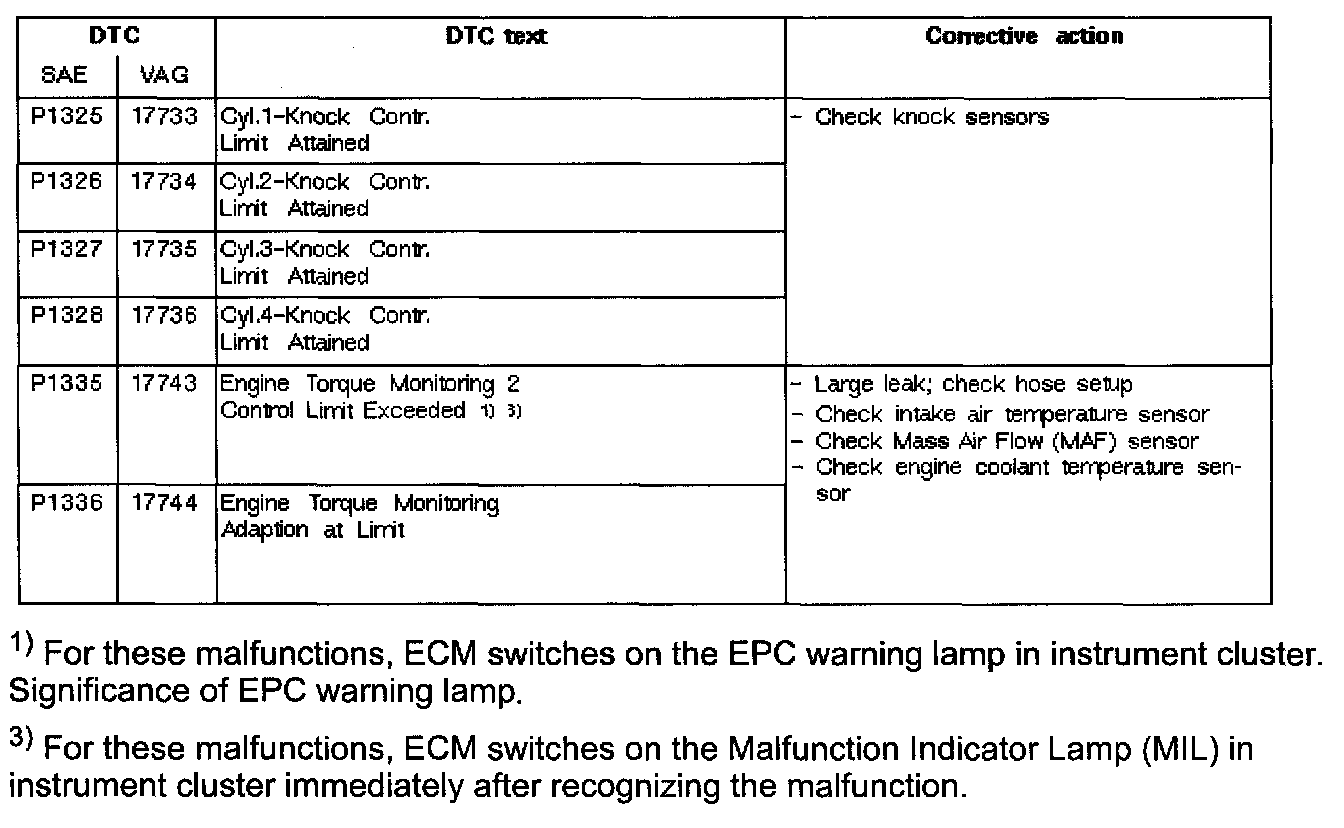

DTC P1325 - P1336:

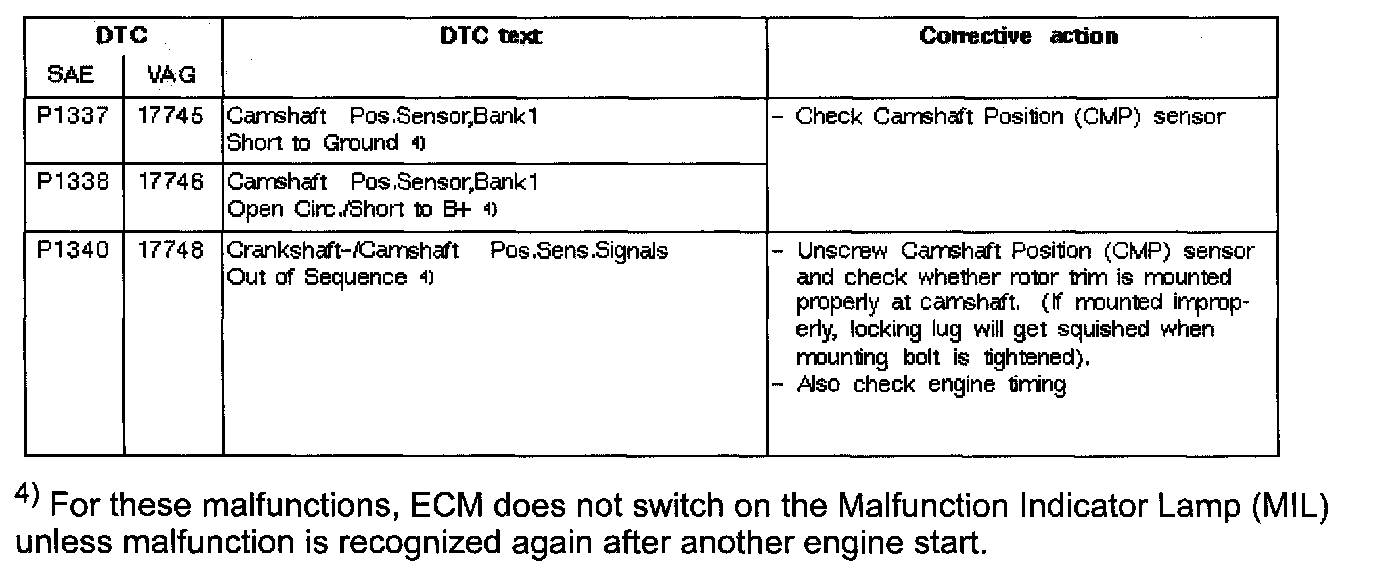

DTC P1337 - P1340:

DTC P1355 - P1359:

DTC P1360 - P1366:

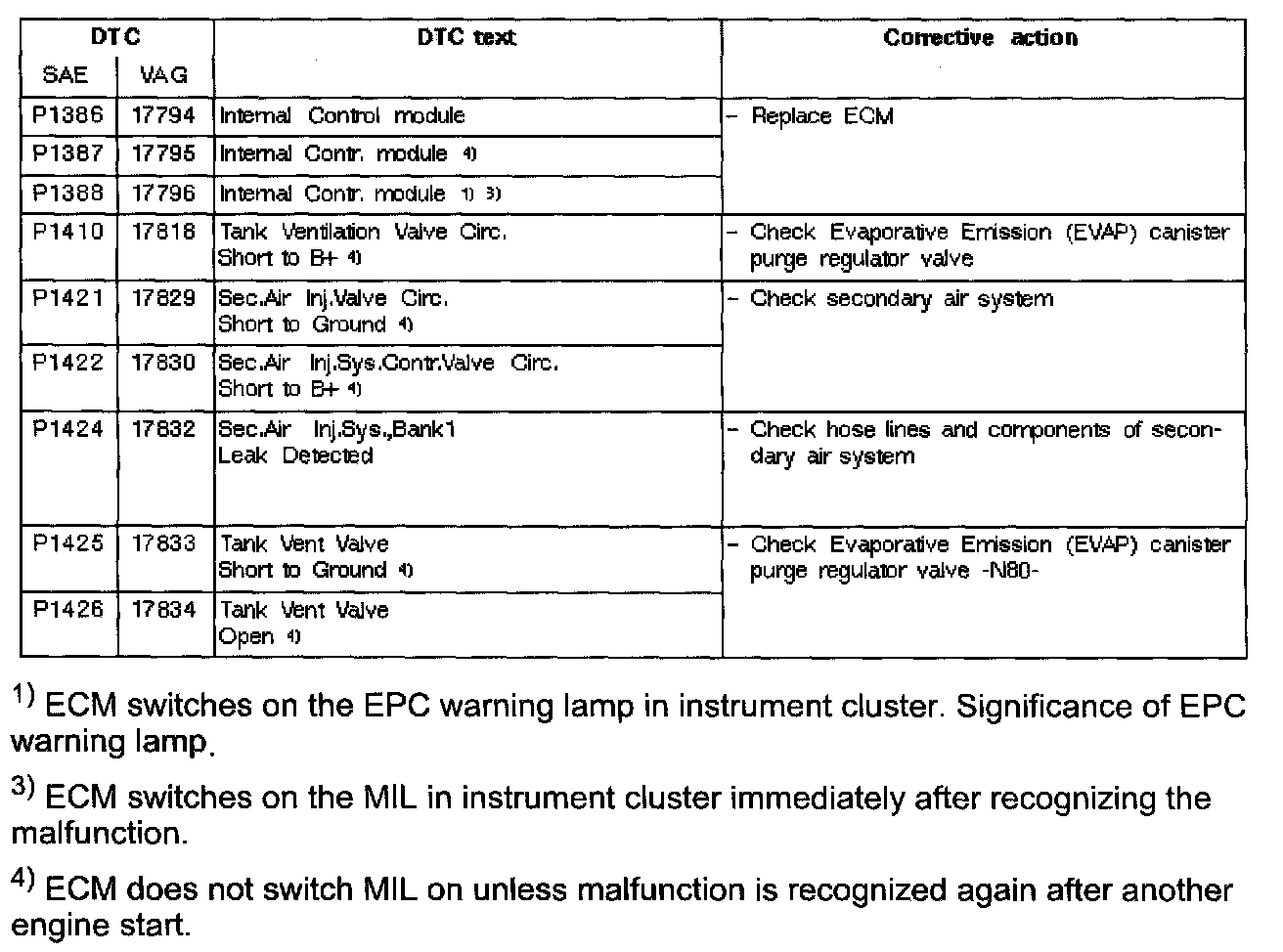

DTC P1386 - P1426:

DTC P1432 - P1469:

DTC P1471 - P1476:

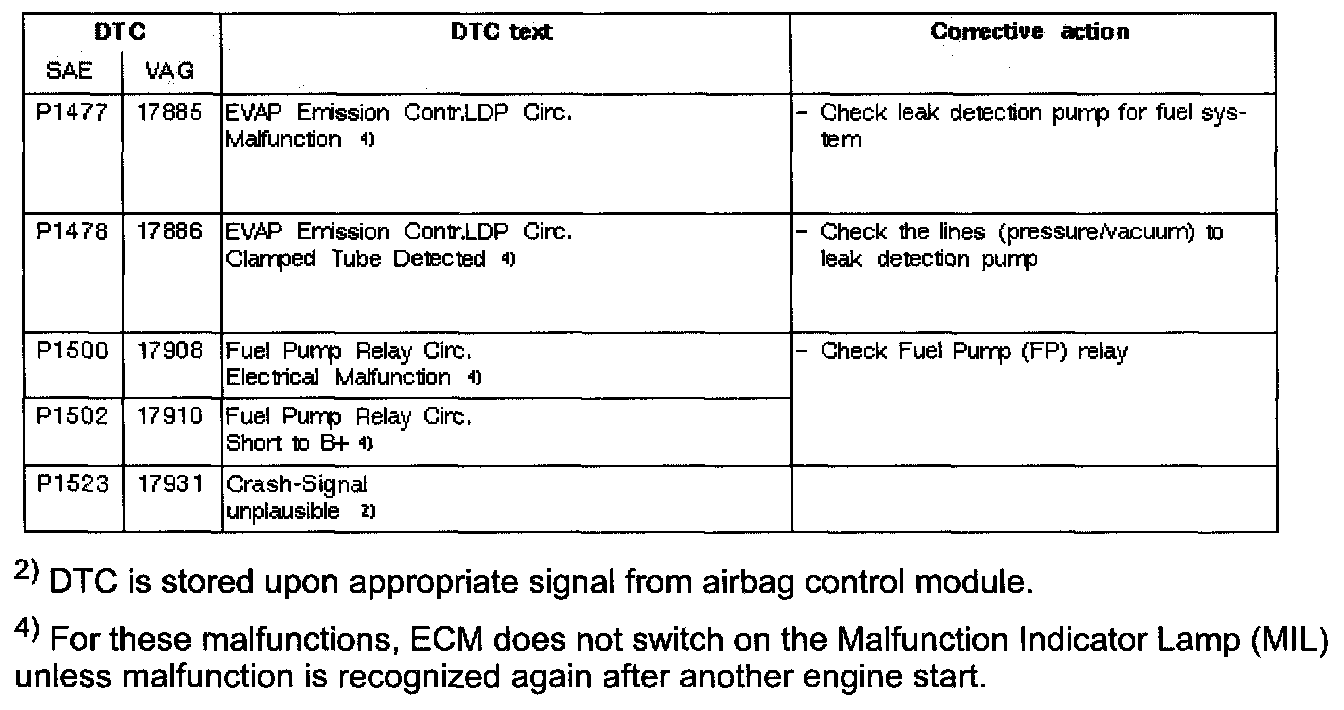

DTC P1477 - P1523:

DTC P1539 - P1545:

DTC P1546 - P1560:

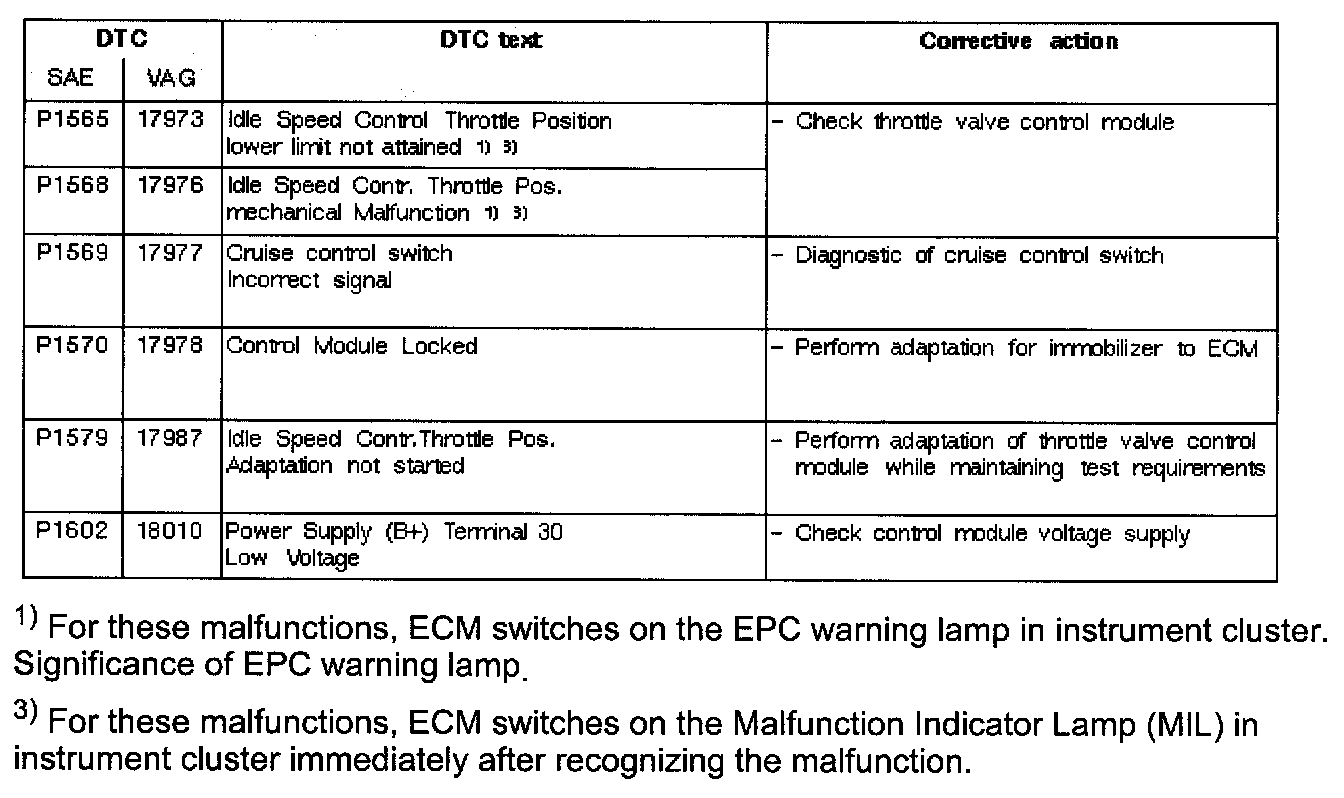

DTC P1565 - P1602:

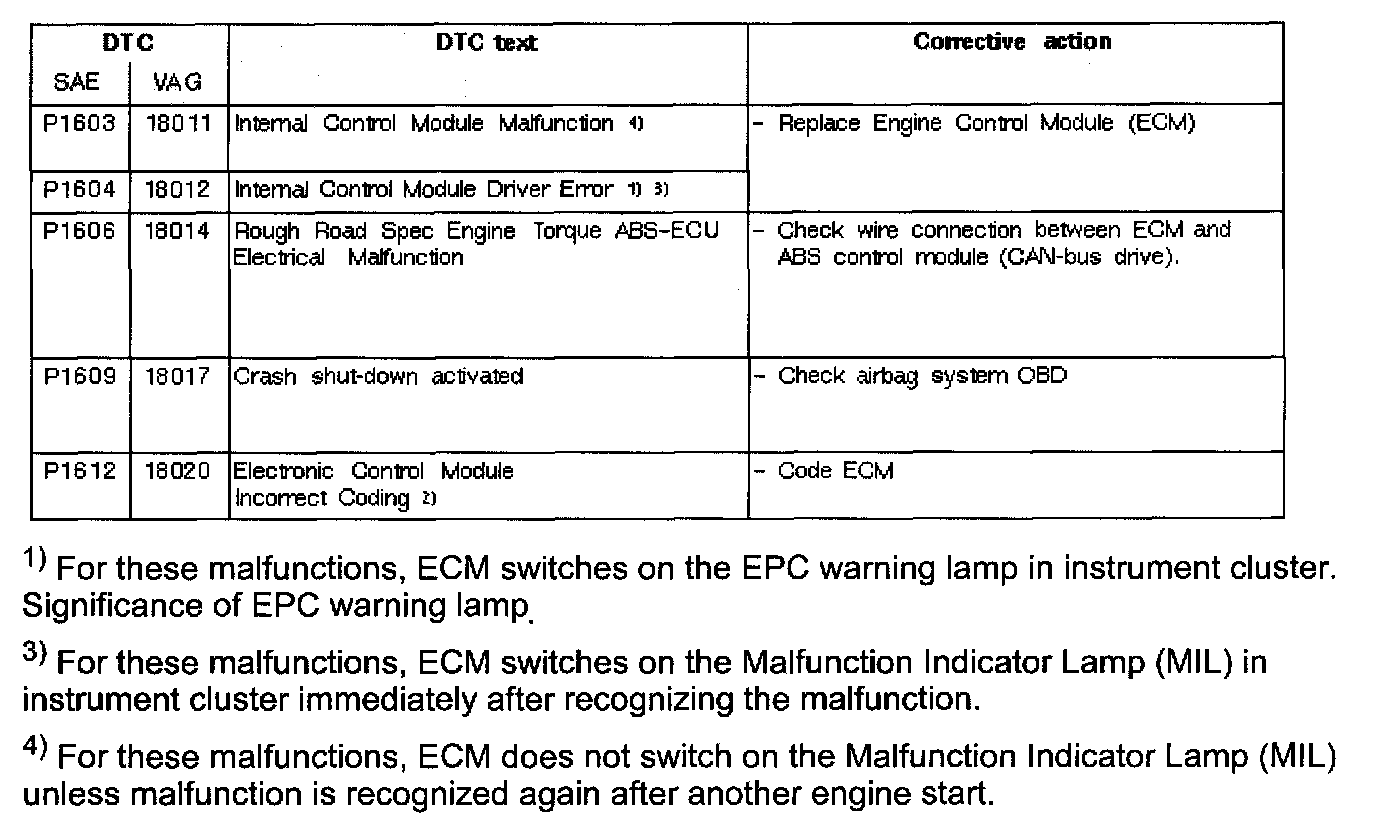

DTC P1603 - P1612:

DTC P1630 - P1639:

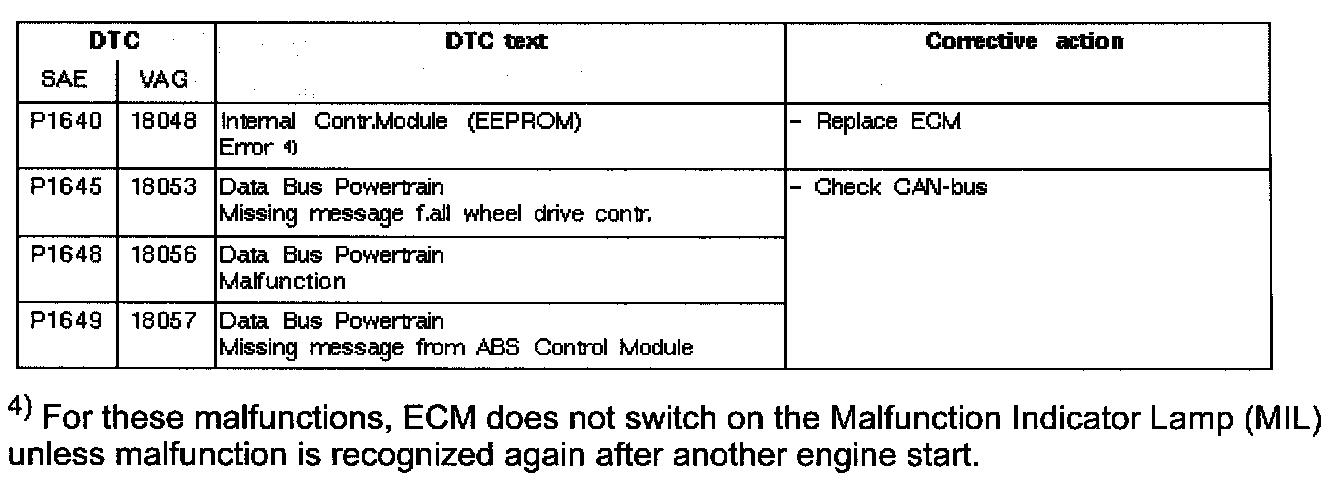

DTC P1640 - P1649:

DTC P1676 - P1853:

NOTE: The malfunction light for power acceleration -K132- (in wiring diagram: malfunction light for power accelerator activation -K132) is also called the EPC warning lamp.
