Read Measuring Value Block (Function 08)

Read Measuring Value Block (Scan Tool Function 08)

Test requirements
- Coolant temperature at least 80 degree C.
- Electrical consumers switched off (radiator fan must NOT run during test).
- A/C switched off.
- Steering in "straight-ahead" position

Test sequence
- Connect VAS5051 tester or VAG1551 scan tool and select the control module for engine electronics using address word 01. Connecting VAS 5051/VAG1551 Scan Tool
Engine must run at idle for this.

Indicated on display:


Rapid data transfer HELP
Select function XX


- Press buttons -0- and -8- to select "Read Measuring Value Block" and press -Q- button to confirm input.

Indicated on display:


Read Measuring Value Block Q
Input display group number XXX


- Enter desired three digit display group number and confirm by pressing the -Q- button.

NOTE: The display group that should be chosen depends on current function and component tests.

Indicated on display for display group 000:


Read Measuring Value Block 0 ->
1 2 3 4 5 6 7 8 9 10


Indicated on display (example) for display group 001:


Read Measuring Value Block 1 ->
1 2 3 4


NOTE:
- Display can be printed out on the paper roll when printer is switched on.

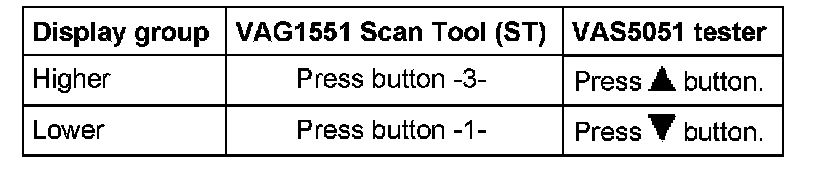

- To switch to a different display group, proceed as follows:
