Location of Accelerator Position Senders -G79 & G185

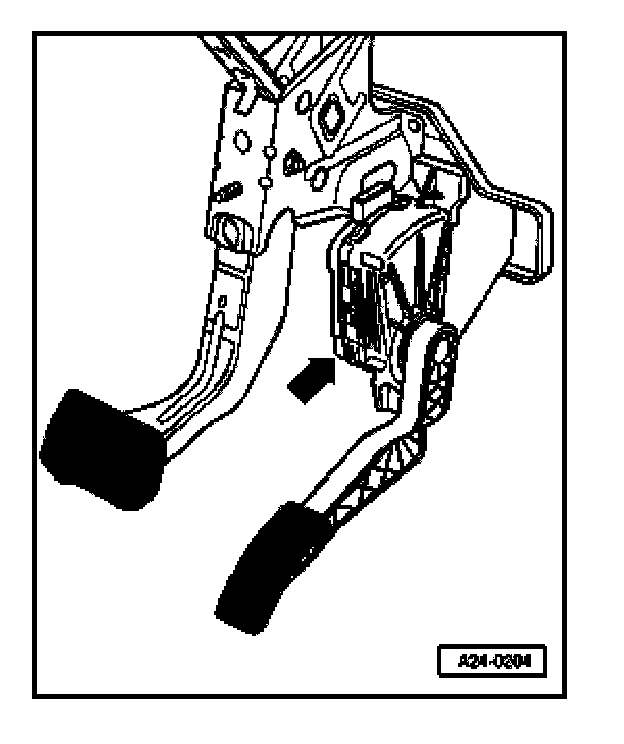

Fig. 2 Installation position: Throttle Position (TP) sensor -G79- and sender 2 for accelerator pedal position -G185-
