ABS General Information

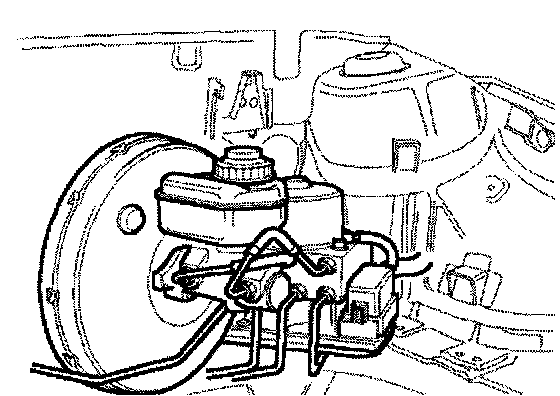

ABS layout in left - hand drive vehicle.
The ABS brake system is divided diagonally. The servo assistance is effected pneumatically by the vacuum brake servo unit.

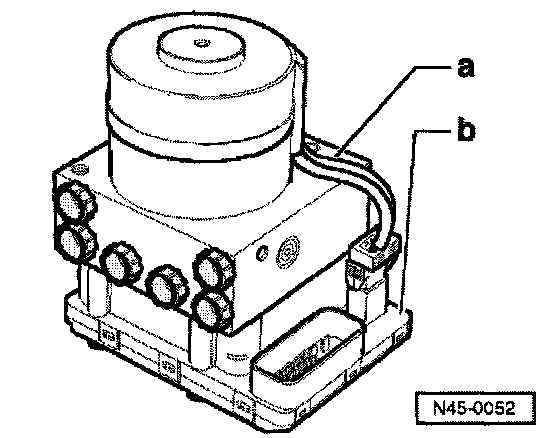

Vehicles with ITT Mark 20 IE ABS do not have a mechanical brake pressure regulator. A specially matched software in the control module controls the rear axle brake pressure regulation.





Malfunctions in the ABS systems do not influence the brake system and servo.
