Side Mounted Turn Signals, Removing and Installing

WARNING!
Before working on the electrical system disconnect the battery Ground strap


NOTE:
- On vehicles with coded radio, obtain anti - theft code before disconnecting battery.
- When the battery is reconnected, re - activate electrical equipment (radio, clock, electric windows, engine management)


Removing

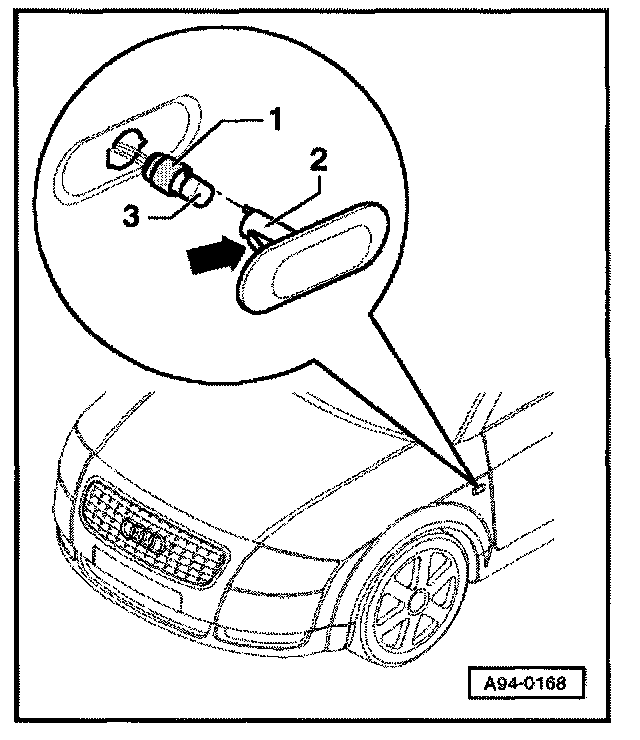

- To remove turn signal from opening in fender, carefully push retaining tab toward rear of vehicle - arrow -.
- Carefully pull housing -2- out of rubber mounting -1-
- To change the bulb, pull bulb -3- out of rubber mounting -1- and install new bulb.

Installing
Installation is carried out in the reverse order of removal.
