Rear Light, Removing and Installing

Removing
- Lever open flap in luggage compartment side trim behind rear light (on left or right side).

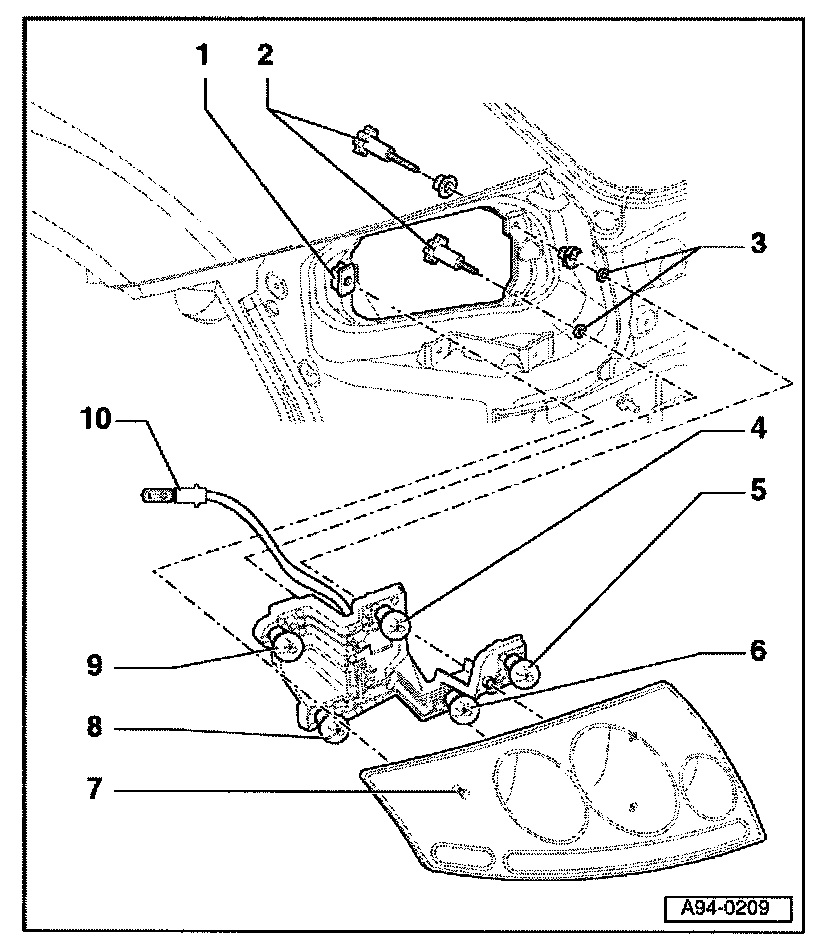

- Loosen two securing bolts -2-.
- Ball pin -7- on rear light housing is just a press fit in clip -1-
- Unplug electrical connector.
- Pull out rear light from rear of vehicle.

Installing
- When installing, make sure that the seal between the body and the rear light housing is properly seated.
- Installation is carried out in the reverse order of removal.
- Before tightening securing bolts -2- , align rear light with body contours (uniform gaps all around).
- Make sure that ball pin -7- is firmly located in plastic clip -1- (ball pin can be adjusted to align rear light with body).
