Bulb Carrier, Removing and Installing

NOTE: To remove bulb carrier from rear light housing, rear light must be removed.

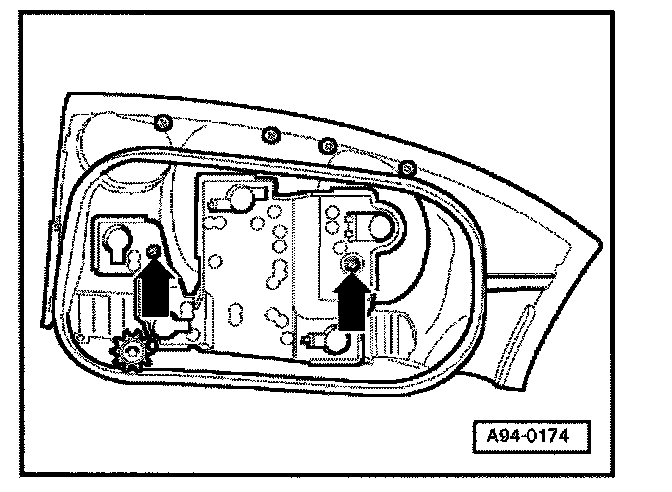

- Loosen two Phillips - head screws - arrows - and take bulb carrier out of housing.
- Replace malfunctioning bulb.
Installation is carried out in the reverse order of removal.
