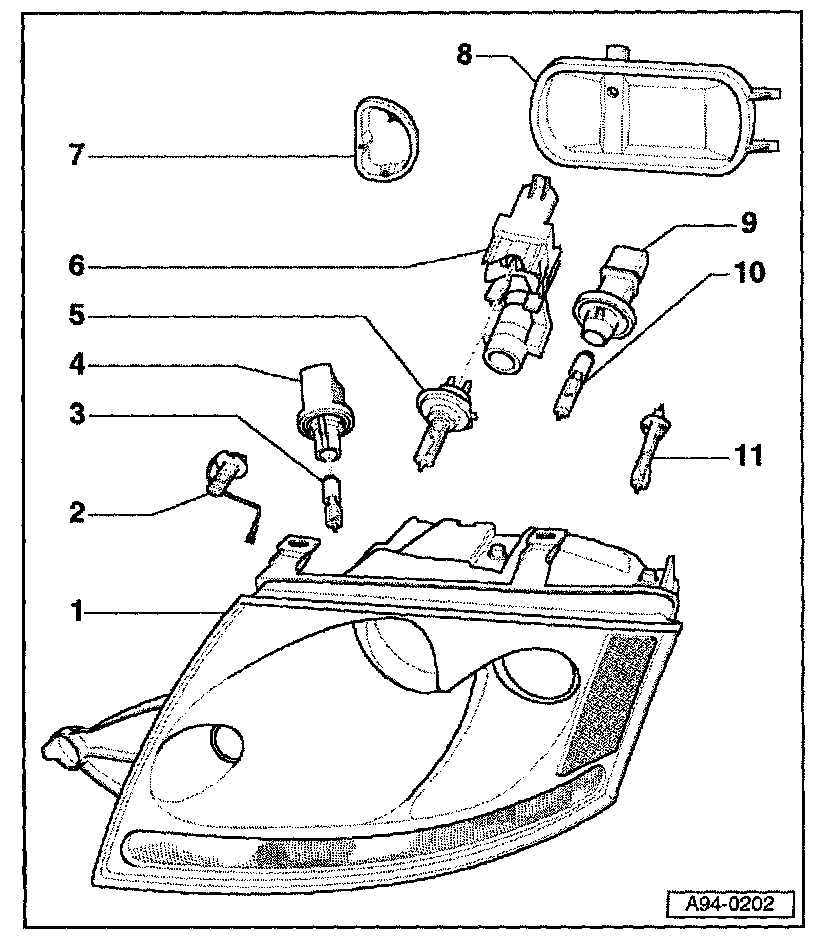

Overview - Halogen Headlights

1 - Headlight housing with lens (bonded to housing - cannot be replaced separately)
2 - Fog light bulb
- H3 - 12 V, 55 W
3 - Side light bulb
- 12 V, H6 W
4 - Bulb holder for side light
5 - Main beam bulb
- H7 - 12 V, 55 W
6 - Bulb holder for main beam
7 - Housing cover (small)
8 - Housing cover (large)
9 - Bulb holder for turn signal bulb
10 - Turn signal bulb
- 12 V, H21 W
11 - Dipped beam bulb
- H1 - 12 V, 55 W
