Hinged Pocket Assembly, Removing and Installing

- Remove door trim.
- Remove insulation.

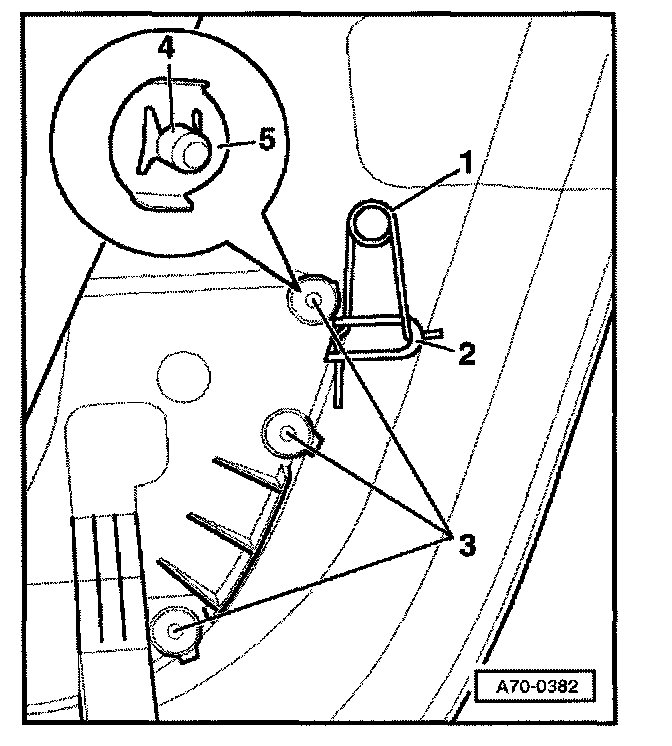

- Disengage spring - 1 -.
- Drill out welds - 3 - (11x).
- Pull out link - 2 - forward.
- Press through pins - 4 - on new pocket and fasten pocket with clips - 5 - (as in parts catalog microfiche).
